	Chapter 2. Abilis hardware

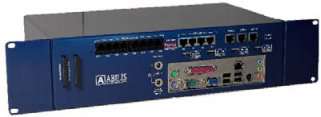

Figure 2.5. Compact Abilis

Compact Abilis is a non-expandable device equipped with:

1 Gigabit ethernet
3 Ethernet 10/100
4 ISDN BRI
8 POTS
1, 2 or 4 DSPs supporting 4 channels each. Standard production is with 2 DSPs, 8 channels
1 ATOM 330 dual core , 1.66 GHz
8 USB ports
MFPCI watchdog
Optional 1 or 2 SATA hard disks

The device equipped with 4 BRI + 8 POTS has to be configured as BS48 device. Add it using the command A DEV:BS48-1.

This two core device dedicates one core to Abilis CPX and the other to the Hypervisor. The Hypervisor can run only Linux OS virtual machines.

Dimensions[mm]: 360x210x100;

Weight:3,5 Kg;

Power supply:+12 VDC, 50W.
