2.7. Nano Abilis

2.7. Nano Abilis
	Chapter 2. Abilis hardware

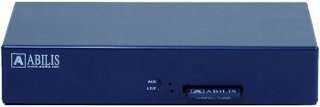

Figure 2.8. Nano Abilis - Front view

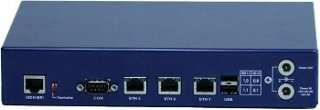

Figure 2.9. Nano Abilis - Rear view

Nano Abilis is a non-expandable device equipped with:

CPU: 500 MHz AMD Geode LX800
RAM: 256 MB DDR
BOOT DISK: CompactFlash 128MB

All Nano abilis have three ethernet ports, two USB ports, one COM port and a power out connector useful to supply UMTS BOX2.

Nano Abilis is a device available in two versions:

with one BRI port (with ISDN backup)
without a BRI port (without ISDN backup)

The version with one BRI is equipped with an integrated impedance matching adapter (on the right side of the BRI port) so there's no more need to use ISDN adapters. The BRI port has two correspondig switches: one for output twisted pair and one for input twisted pair. The default position is “ON” with the ISDN impedance activated (see figure below).

	Note
	The BRI port is TE and not NT, so: a straight cable is needed to connect an ISDN line to Nanoabilis

	Note
	Nano abilis has no DSPs so transcoding is not allowed (there's no Packet Voice bandwidth optimization)

2.7.1. Led indications

Led	Meaning	State
LIVE AUX	Abilis Status Not Used	LIVE and AUX leds flashing: startup LIVE led flashing (1s ON - 1s OFF): Abilis status is ok AUX led: not used

Led

Meaning

State

LIVE

AUX

Abilis Status

Not Used

LIVE and AUX leds flashing: startup

LIVE led flashing (1s ON - 1s OFF): Abilis status is ok

AUX led: not used

2.7.2. Number of pluggable usb devices

Refer to Section 2.6.2, “Number of pluggable usb devices to the same USB 1.1 OHCI/UHCI controller”.

2.7.3. Physical and electrical specifications

Dimensions[mm]: 234x163x45;

Weight: 1.20Kg;

Power supply:
