34.4. HTTPS (HTTP over SSL)

Adding the SSL (Secure Socket Layer) resource and configuring properly the HTTP resource are needed to enable the HTTP over SSL resource.

34.4.1. Activating the SSL resource

Add the resource to the Abilis system with the following command.

[12:25:41] ABILIS_CPX:a res:ssl

RES:SSL ALREADY EXISTS

The SSL resource may already exist in the system, but may not yet be active: set it active with the command:

[12:25:44] ABILIS_CPX:s act res:ssl

COMMAND EXECUTED
[Caution]Caution

After adding or setting the SSL active, you must restart the Abilis to make the resource running (use the command warm start to reboot the Abilis).

[17:14:59] ABILIS_CPX:s p ssl act:yes

COMMAND EXECUTED

[17:15:17] ABILIS_CPX:d p ssl

RES:Ssl - Not Saved (SAVE CONF), Not Refreshed (INIT) ------------------------
       -----------------------------------------------------------------------
Run    DESCR:Secure_Socket_Layer
       LOG:NO        ACT:YES           max-cli:2           max-srv:4
       mpxs:2048     SEND-TOUT:20      CACH-TOUT:300       AUTH-CLI:NO
       PWDKEY-CLI:DFT                  PWDKEY-SRV:DFT
       CERT-PATH:SYS (C:\6-0-9\)
[Caution]Caution

Use the init res:ssl command to activate the changes made and save the configuration with the save conf command to make the changes permanent.

34.4.2. HTTP resource configuration

Set the ACT-S to YES and the sesnum-s to a value different from zero.

[16:55:46] ABILIS_CPX:s p http act-s:yes sesnum-s:12

COMMAND EXECUTED

[16:55:59] ABILIS_CPX:d p http

RES:Http - Not Saved (SAVE CONF), Not Refreshed (INIT) ------------------------
Run    DESCR:HyperText_Transfer_Protocol
       LOG:NO                   ACT:YES              LOGIN-COOKIE-TOUT:1440
       WDIR:C:\APP\HTTP\
       START-PAGE:SYS (/sys/pub/cpx.htm)
       SYS-CSS:SYS (/sys/pub/cpx.css)
       CORS-DOMAINS-LIST:#
       - HTTP plain -----------------------------------------------------------
       ACT-P:YES                tcp-locport-p:80     sesnum-p:12
       IPSRC-P:*                IPSRCLIST-P:#
       - HTTP ssl -------------------------------------------------------------
       ACT-S:YES                tcp-locport-s:443    sesnum-s:12
       IPSRC-S:*                IPSRCLIST-S:#
       - CHAT (XMPP) Provisioning ---------------------------------------------
       CHAT-GATEWAY-URL:
       CHAT-SERVER:
[Caution]Caution

Use the init res:http command to activate the changes made and save the configuration with the save conf command to make the changes permanent.

The Virtual Paths Access Rights are the same of the HTTP protocol: verify that the SSL protocol is enabled in the table and in the user's parameters with the following commands:

[15:12:54] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------

-------------------------------------------------------------------------------
ID: PATH:
       USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
  1 /sys/
       admin                            r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
  2 /sys/pub/
       anonymous                        r---  ----  YES    PLAIN,SSL
-------------------------------------------------------------------------------

[17:53:34] ABILIS_CPX:d user:httpuser

Parameter:     | Value:
---------------+---------------------------------------------------------------
USER:            httpuser
PWD:             *********
ACT:             YES
HTTP:            YES
HTTP-PROT:       PLAIN,SSL
-------------------------------------------------------------------------------

34.4.3. Connecting to Abilis using HTTPS

Type inside a common browser the URL https://<Abilis IP Address> to connect to Abilis Web Interface using HTTPS protocol.

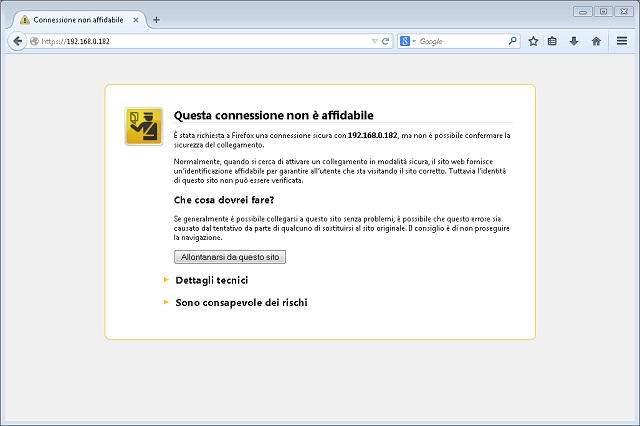

Before connection, it will be requested to accept the digital certificate: click I understand the risk and then Add Exception. The Abilis CPX Web Interface it is shown.
