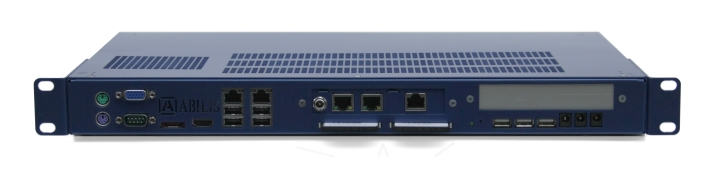

Abilis Base-D is an expandable device. Below there are the hardware characteristics of the base unit:
DualCoreCPU 1.8 GHz
4096 MB RAM DDR3
2 Compact-Flash 128MB modules for boot
1 RS-232 ports
7 USB ports
2 Ethernet
These are the expansions:
UPS-PSU 10A
1 BSE
BSE device configuration creates 8 BRI and 40 POTS and only the actually installed ones will be running. The not installed ports will appear as "Not running" and may be deactivated and hidden using the S INACT CTIP-xxx command.
The D PCIDEV will show the type and numbers of ports actually present on the installed BSE card using the following scheme:
nickname x-y-x
where
nickame
Nickname used to identify the card available in one or more mounting options
x
number of BRI ports
y
number of on-board POTS ports
z
number of POTS ports available through ELTI interface and POTSBOX
Examples of BSE:
BSE28 0-4-32 (4 POTS on Board plus 32 POTS via 1 ELTI/POTSBOX)
BSE29 4-0-32 (4 BRI ports and 1 ELTI port for up to 32 POTS via POTSBOX)
BSE26 2-2-32 (2 BRI, 2 POTS on Board plus 32 POTS via 1 ELTI/POTSBOX)
BSE17 4-2-32 (4 BRI, 2 POTS on Board and 1 ELTI port for up to 32 POTS via POTSBOX)
| |  | |
