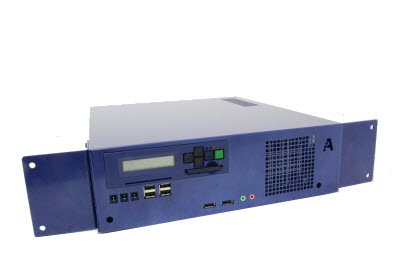

Abilis Base-P and Abilis Base-Q are two expandable devices. The difference between the two models is the type of processor and the amount of RAM. Below there are the hardware characteristics of the base unit:
CPU Core2 Duo E6400 2.5 GHz for Abilis Base-P or Core2 Duo E6550 CPU 2.5 GHz for Abilis Base-Q
1024 MB RAM DDR2 for Abilis Base-P or 4096 MB RAM DDR2 for Abilis Base-Q
The other components remain the same:
512MB Compact-Flash modules for boot
PC platform with 2 PCI-slots and 2 PCI Express
2 RS-232 ports
Hardware Watchdog processor
10 USB ports
1 Gigabit Ethernet
These are the expansions:
up to 8 ISDN-2 or ISDN30 ports. Refer to the following chapters: Section 2.8.3, “QPRIX”, Section 2.8.5, “PB44X”, Section 2.8.7, “BRI-HFC4 / BRI-HFC8”,Section 2.8.4, “PB22”
up to 32 analogue extensions (for “internal” telephones or fax). Refer to the following chapterSection 2.8.8, “POTS 4/8/16”
up to 256 analogue extensions (for “internal” telephones or fax). Refer to the following chapter:Section 2.8.11, “POTSHUB”
up to 2 Ethernet ports.Refer to the following chapter:Section 2.8.12, “Ethernet”
up to 16 Ethernet ports.Refer to the following chapter:Section 2.8.14, “QUAD-Ethernet”
up to 2 Gigabit Ethernet ports.Refer to the following chapter:Section 2.8.13, “GigaEthernet”
up to 10 xDSL concurrent connections to the Internet. Refer to the following chapter:Section 2.9.1, “ADSL modem”
up to 10 UMTS gateways (up to 16 simultaneous calls between the fixed and the mobile network). Refer to the following chapter:Section 2.9.3, “UMTS-BOX2”
up to two 5” 5200 RPM SATA Hard-Drives
Abilis Base-Q includes all licences but VMX and Data Comp ones, because it's a class 13 device. Refer to Section 6.1.1, “ABILIS ID and the class of product” to know more about licencing.
| |  | |
