2.6. Micro Abilis C3

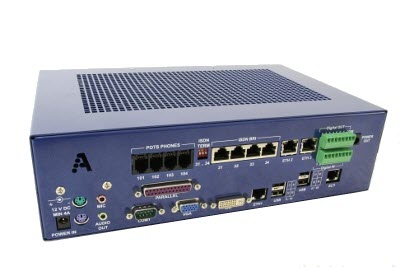

Figure 2.9. Micro Abilis C3

Micro Abilis C3


Micro Abilis is a non-expandable device equipped with:

2.6.1. Led indications

Table 2.1.

LedMeaningState

LIVE

AUX

Abilis Status

Not used

LIVE and AUX leds flashing: startup

LIVE led flashing (1s ON - 1s OFF): Abilis status is ok

AUX led: not used


2.6.2. Physical and electrical specifications

Dimensions[mm]: 305x195x90;

Weight:2,9 Kg;

Power supply:+12V DC/5A, 60W.
