57.9. DISA

This section allows to add/remove/change services and users, to display diagnostics and to manage messages sets.

[Caution]Caution

Generally the access to this section is reserved to users with administrator's rights.

By default, the anonymous access is disabled; add the path in the HTTP Virtual Paths Access Rights Table for httpuser.

[10:49:09] ABILIS_CPX:a http rights path:/sys/admin/disa/ user:httpuser

COMMAND EXECUTED

[10:49:14] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
9 /sys/admin/
     httpuser                         r---  l---  NO     PLAIN,SSL
-------------------------------------------------------------------------------
 11 /sys/admin/disa/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
6 /sys/admin/lists/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
10 /sys/admin/users/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
5 /sys/advuser/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
4 /sys/disa/
     disa                             r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
3 /sys/opc/
     test                             r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
2 /sys/pub/
     anonymous                        r---  ----  YES    PLAIN,SSL
-------------------------------------------------------------------------------
8 /sys/sms/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
7 /sys/trfa/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------

Click Login on the CPX home page and insert login and password. Click the DISA administration link to access to the following page.

[Tip]Tip

Interesting part: Chapter 50, DISA - Direct Inward System Access.

57.9.1. Example of service creation

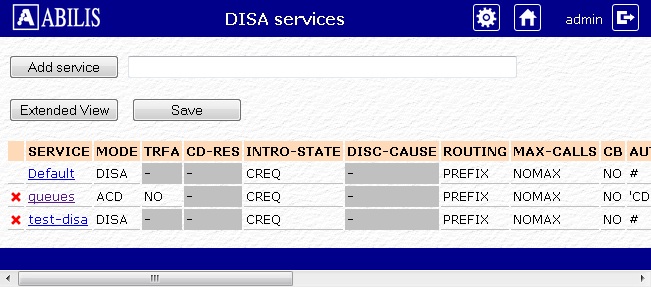

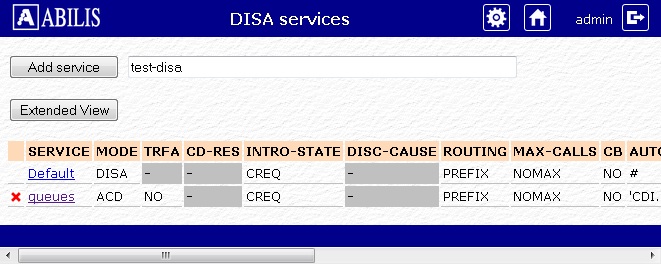

Insert the name and click Add service button to add a new service.

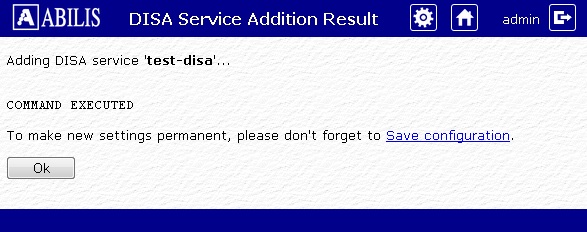

The following page confirms the change. Click Ok button.

[Tip]Tip

Remember to save the configuration to make the change permanent.

57.9.2. Example of service deletion

Click to remove a service.

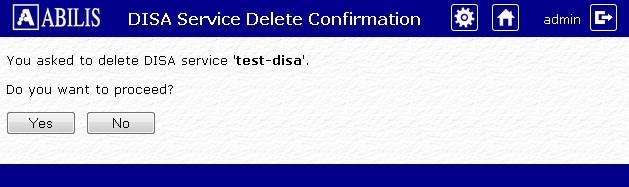

Click YES button to confirm.

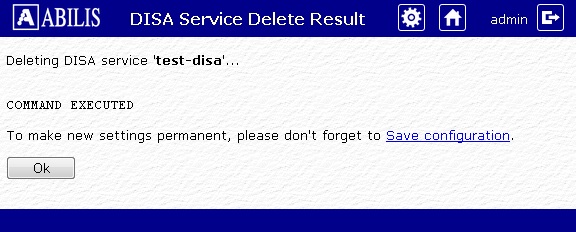

This is the confirmation page:

[Tip]Tip

Remember to save the configuration to make the change permanent.

57.9.3. Viewing/changing a service

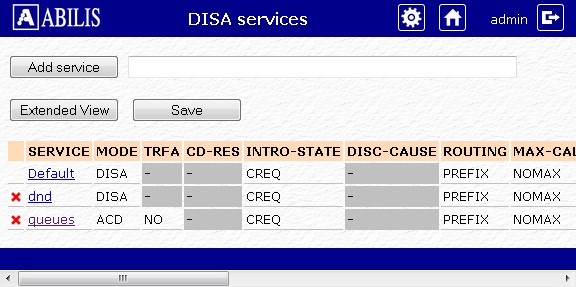

Click the service to change.

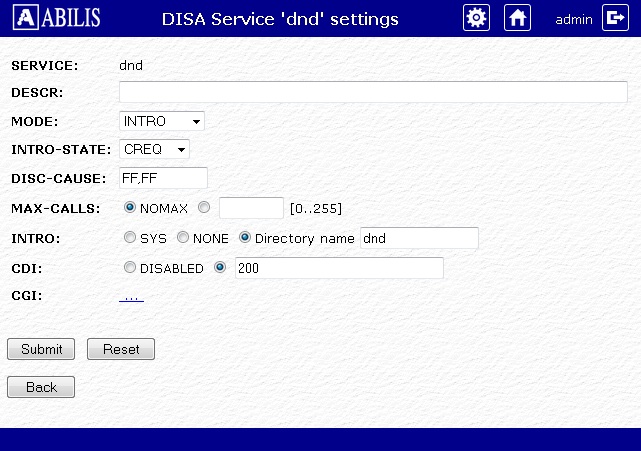

Set new parameters and click Submit button.

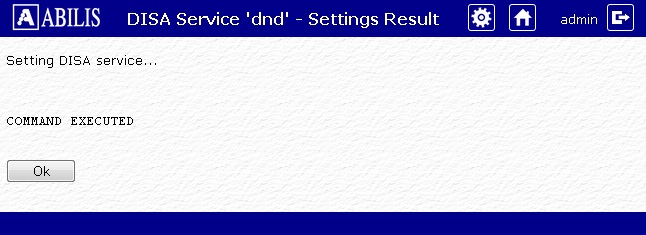

Click OK button on confirmation page.

Click Back button on the following page.

57.9.4. Example of user creation

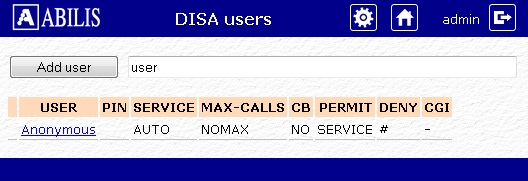

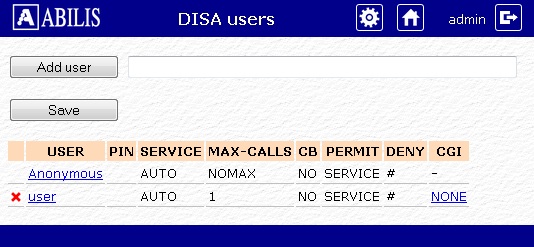

Insert the user name and click Add user button to add a new user.

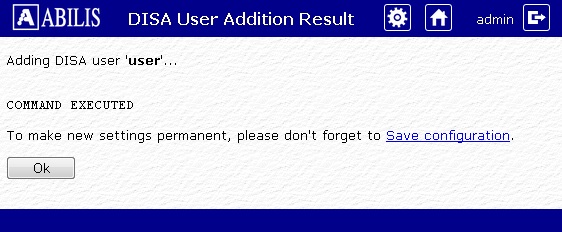

Click Ok on the confirmation page.

[Tip]Tip

Remember to save the configuration.

57.9.5. Example of user deletion

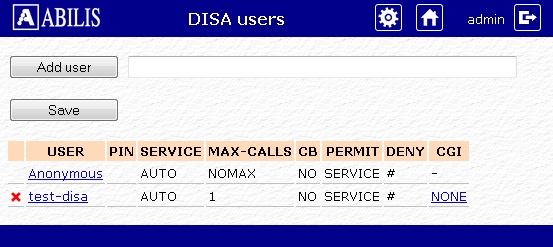

Click on the DISA administration page to remove a user.

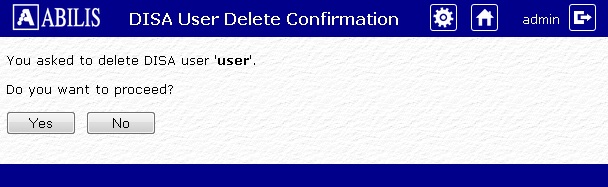

Click YES Button to confirm the deletion.

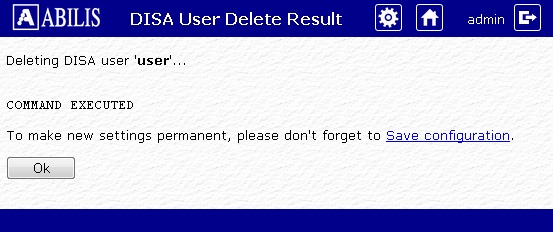

Click Ok on the confirmation page.

[Tip]Tip

Remember to save the configuration.

57.9.6. View/change users

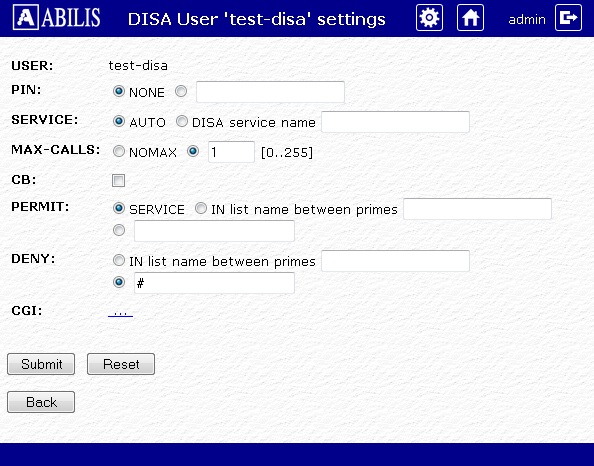

Click the user to change.

Set parameters as needed and click Submit button.

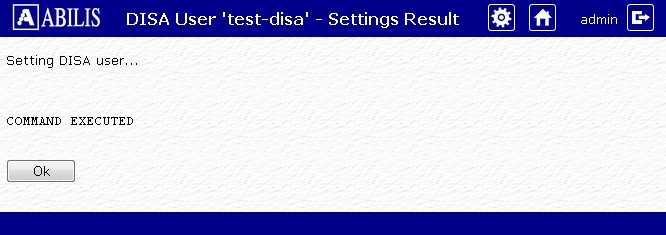

Click OK button on the confirmation page.

[Tip]Tip

Remember to save the configuration.

57.9.7. Managing messages sets

This page allows to Extract/Rebuild/Update messages sets used by CTIDISA resource.

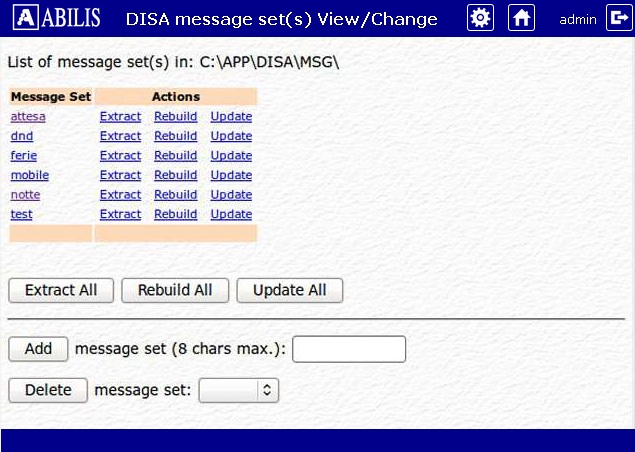

Click Message set(s) View/Change to view the list of existing messages sets.
