57.14. Lists

The List administration service allows to modify add/remove/modify lists.

[Caution]Caution

Generally the access to this section is reserved to users with administrator's rights.

By default, the anonymous access is disabled; add the path in the HTTP Virtual Paths Access Rights Table for httpuser.

[09:24:07] ABILIS_CPX:a http rights path:/sys/admin/lists/ user:httpuser

COMMAND EXECUTED

[09:24:32] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
4 /sys/admin/lists/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
6 /sys/cp/
-------------------------------------------------------------------------------
3 /sys/opc/
     test                             r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
2 /sys/pub/
     anonymous                        r---  ----  YES    PLAIN,SSL
-------------------------------------------------------------------------------

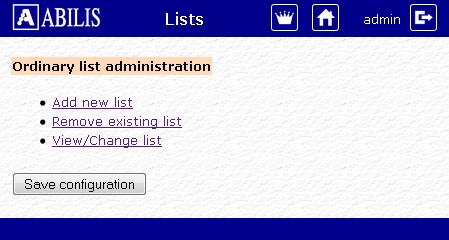

Go to Abilis Home page, login, go to administration page and select the Lists icon.

On the next page the user can create, remove or modify a list (this operations are similar to typing d/a/c/s list command on the control port); save the configuration pressing the Save configuration button.

[Tip]Tip

Interesting part: Section 5.11, “Lists management”.

57.14.1. Example of list creation

Let's see how to create a new list of numbers.

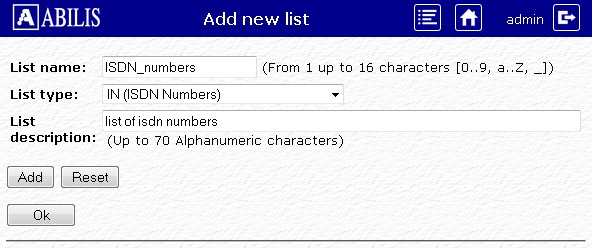

In the previous page click on Add new list link: this page will be shown.

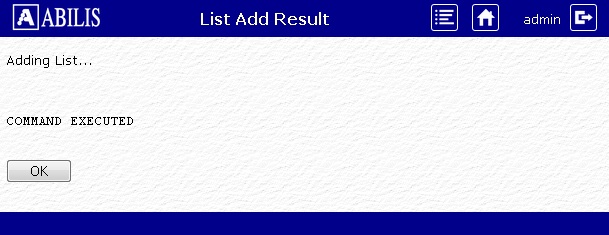

Insert the list name, description and select the type. Then click Add button. The operation will be validated in this page:

57.14.2. Example of list deletion

Let's see how to delete a list of numbers.

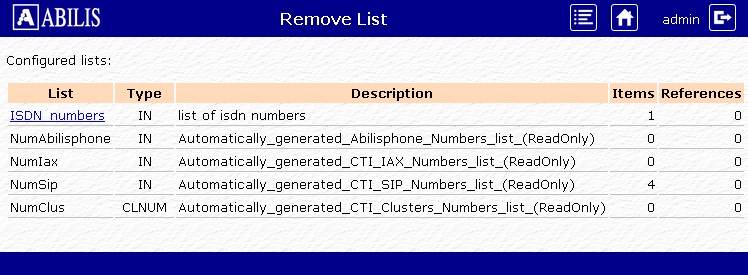

In the previous page click on Remove existing list link: this page will be shown.

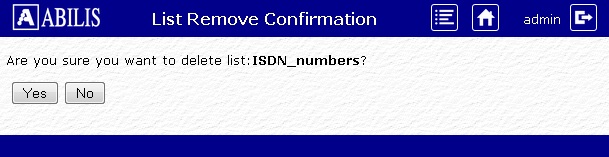

Click the list to delete, then click YES button on the following page:

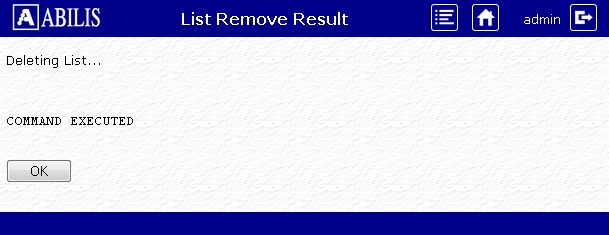

Click OK button on the confirmation page:

57.14.3. Viewing/changing a list

Let's see how to modify a list of numbers.

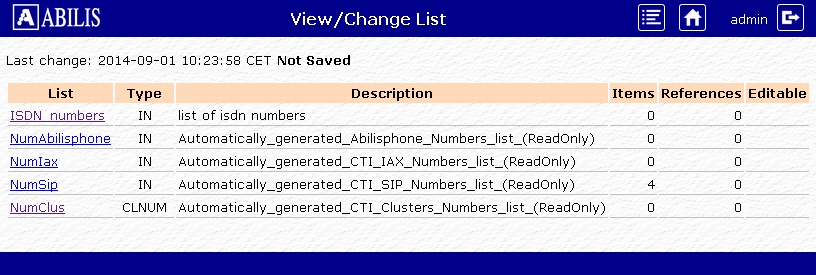

In the previous page click on View/Change list link: this page will be shown.

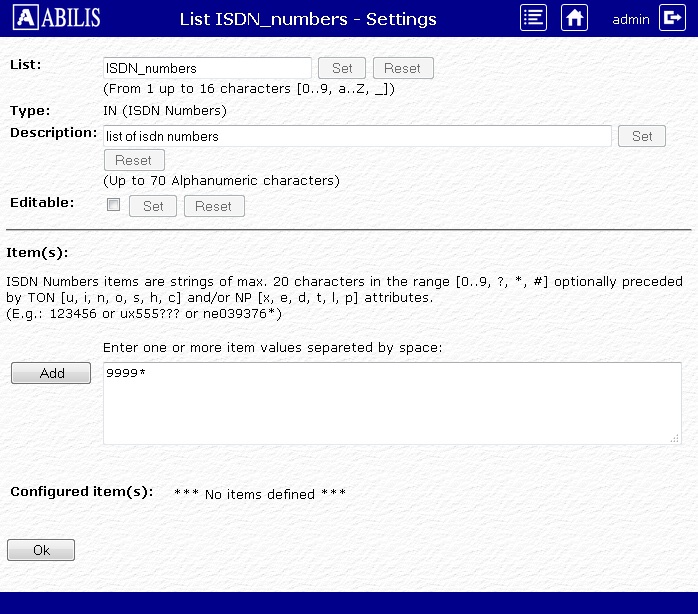

Click the list to change. The following page allows to edit the name and the description of the list, to insert items. Click Add button to insert an item:

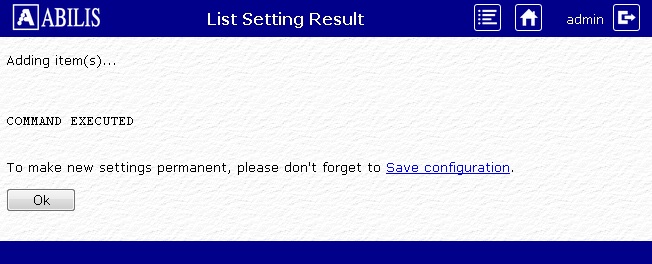

Click OK button on the confirmation page:
