The Control Port page shows the main informations about the system (diagnostics, statistics, …) and its configurations (general informations, …).

By default, the anonymous access in this section is disabled; add the path in the HTTP Virtual Paths Access Rights Table for httpuser.

[12:35:48] ABILIS_CPX:a http rights path:/sys/cp/ user:httpuser

COMMAND EXECUTED

[22:53:51] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------

-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
4 /sys/cp/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
3 /sys/opc/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
2 /sys/pub/
     anonymous                        r---  ----  YES    PLAIN,SSL
-------------------------------------------------------------------------------

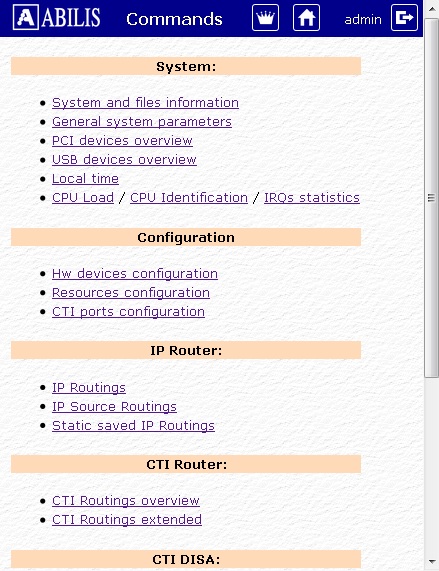

Go to Abilis Home page, login,go to the Administration page and select the Commands link.

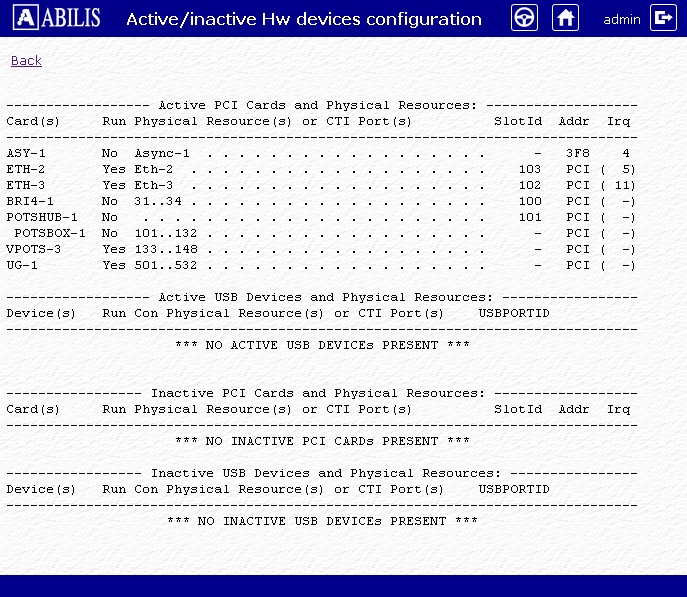

The table of active devices can be shown clicking Hw devices configuration.
