This page allows to administer numbers, CTI preferences and CTI routings.

	Caution
	Generally the access to this section is reserved to users with administrator's rights.

By default, the anonymous access is disabled; add the path in the HTTP Virtual Paths Access Rights Table for httpuser.

[13:26:27] ABILIS_CPX:a http rights path:/sys/admin/cti/ user:httpuser

COMMAND EXECUTED

[13:27:28] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
...
-------------------------------------------------------------------------------
12 /sys/admin/cti/
     httpuser                         r---  l---  YES    PLAIN,SSL
...
-------------------------------------------------------------------------------
2 /sys/pub/
     anonymous                        r---  ----  YES    PLAIN,SSL
-------------------------------------------------------------------------------

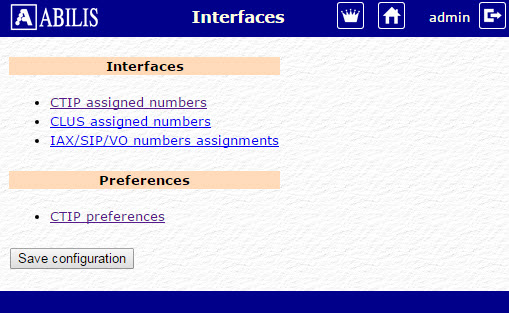

Go to Abilis Home page, login, go to the administration page and click Interfaces to access to the following page.

	Tip
	Interesting part: Chapter 46, CTI System.

57.18.1. CTIP assigned numbers administration

This page allows to change numbers assigned to a CTIP interface.

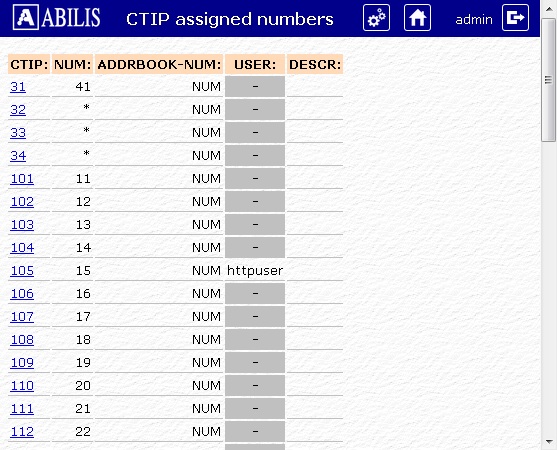

Click CTIP assigned numbers to view a list of the CTIP interfaces.

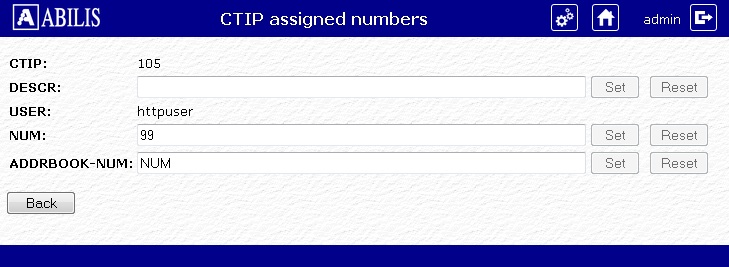

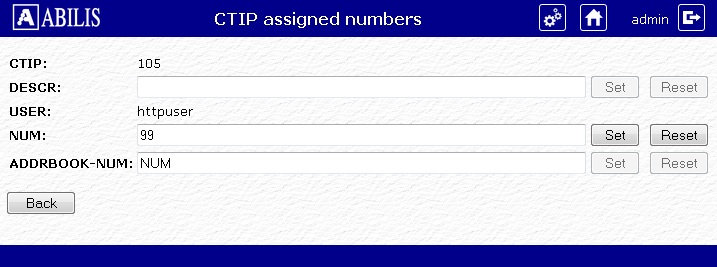

Click an interface to change, set the new number and click Set button.

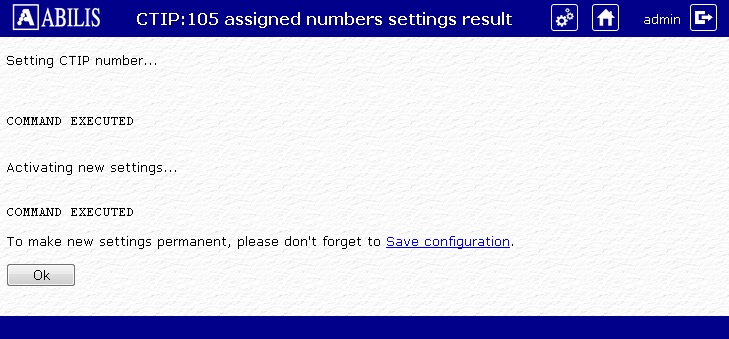

Then click OK button on the following page.

Click Back button on the following page.

	Tip
	Interesting part: Section 46.2, “CTI Ports configuration”.

57.18.2. CTIP preferences

This page allows to change the preferences of a CTIP port.

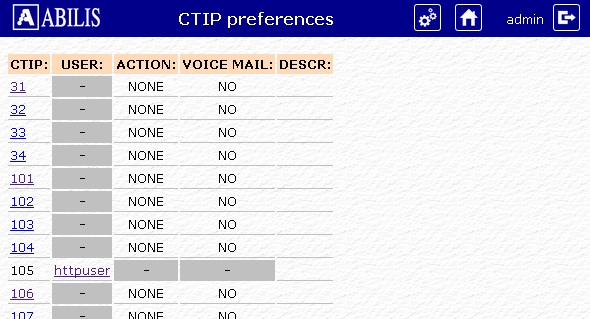

Click CTIP preferences to view a list of ctip interfaces.

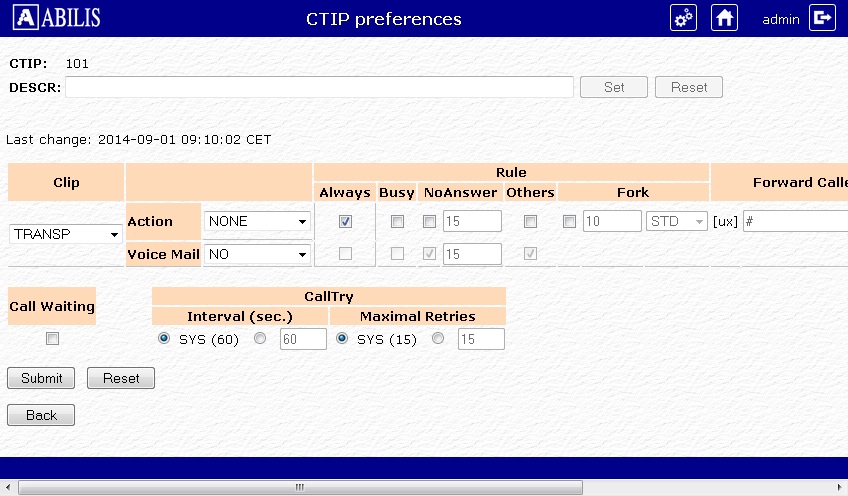

If the CTIP interface is assigned to an user, you'll access to the user preferences clicking on it. In the other cases, the following page is displayed:

Even if the web interface is different, the CTIP preferences are the same of the user preferences.
