Phone traffic analyzer

Giving appropriate rights to the user is needed to access this page, so use the following commands:

[11:28:50] ABILIS_CPX:a http rights path:/sys/trfa/cti/ user:httpuser

COMMAND EXECUTED

[11:40:04] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
...
-------------------------------------------------------------------------------
16 /sys/trfa/cti/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
...

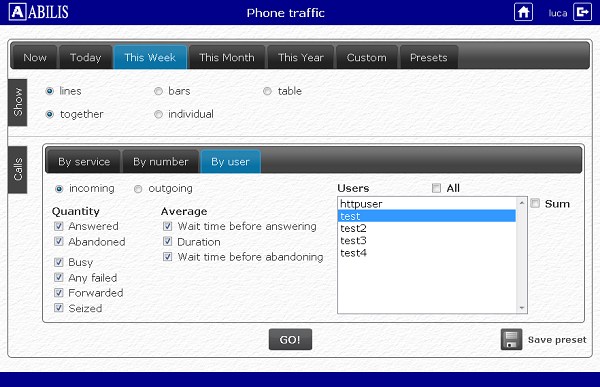

Login and click on Phone traffic to access to the following page:

The top tabs let you select the period of time to analyze.

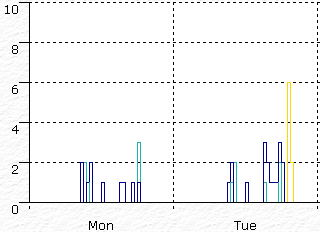

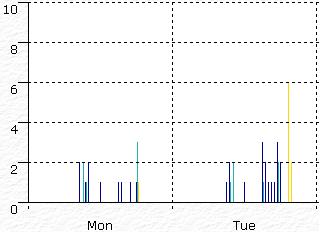

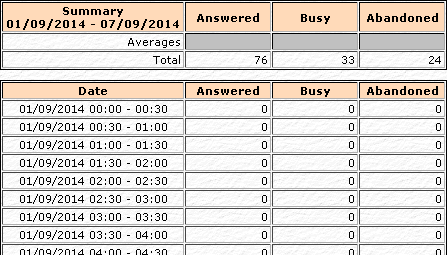

You can choose to see the data in 3 different ways:

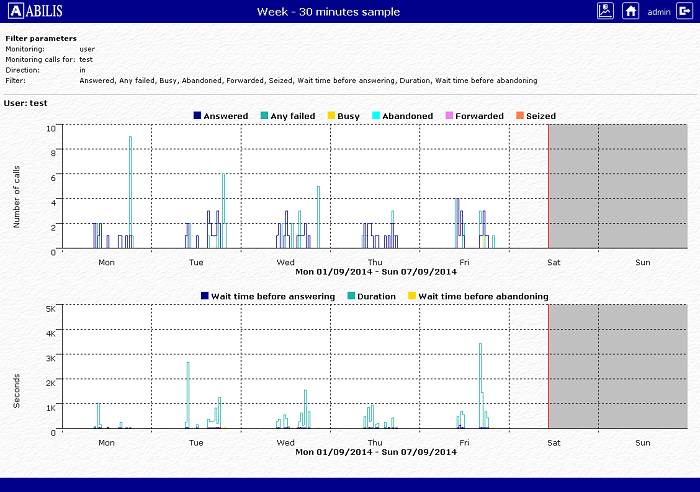

Choose the parameters to see and click Go to get the result
