To enable the access to the web interface follow the chapters Part V, “Web interface” of Abilis Tutorial.

The http rights path for Automation is /sys/io/

Section 55.2, “Add http rights”

Section 57.1.6, “Example - How to give the http rights to a user through web interface”

From Abilis Start Page the user can click on Automation Icon to reach the maps page.

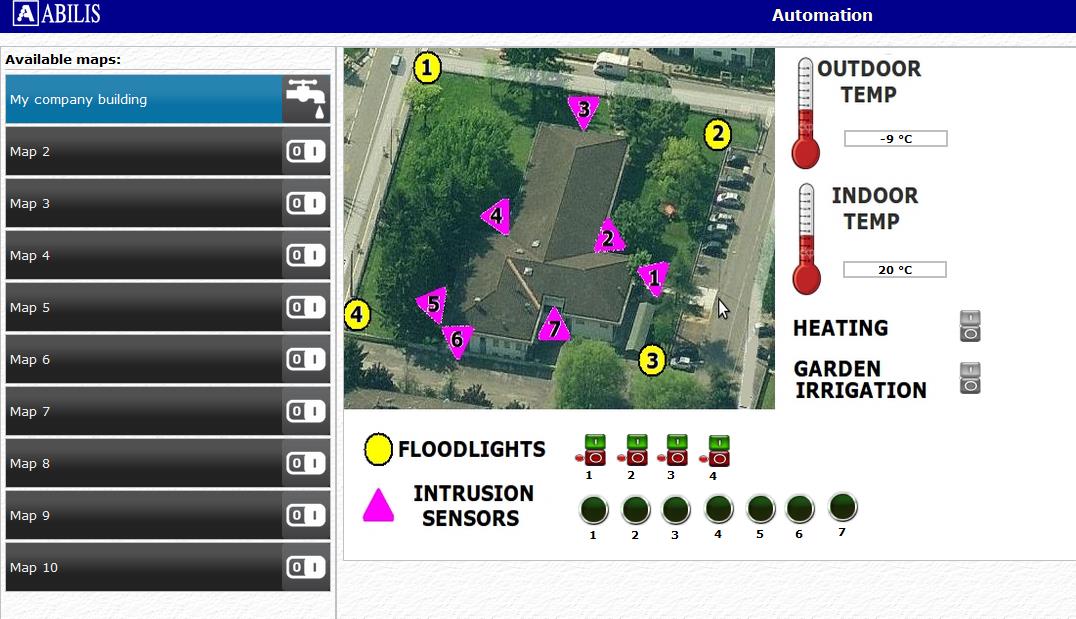

Figure 66.1. Automation Map

Click on to switch on/off the light

To configure that login like user admin and select from Abilis Start Page and to reach following page.

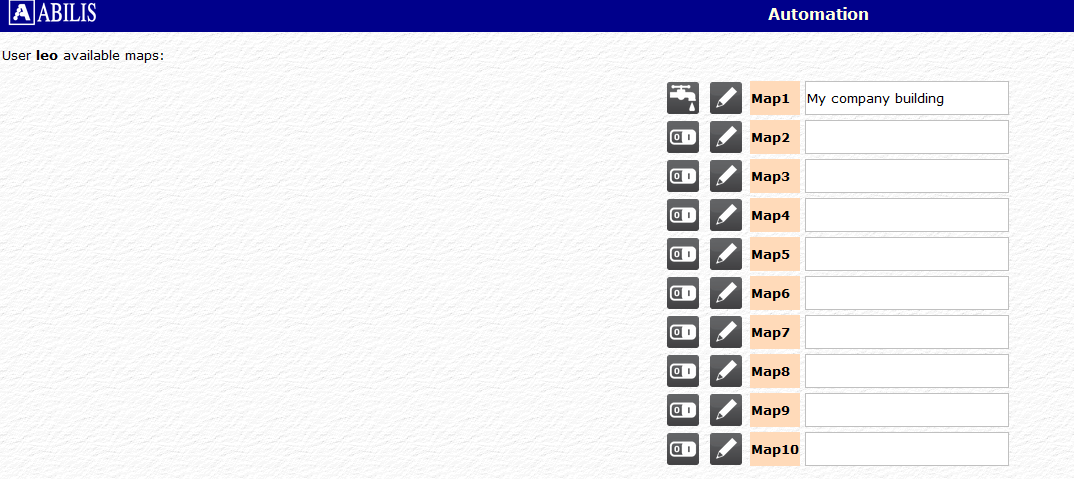

Figure 66.2. Automation Map setiings

Click on to obtain the following page.

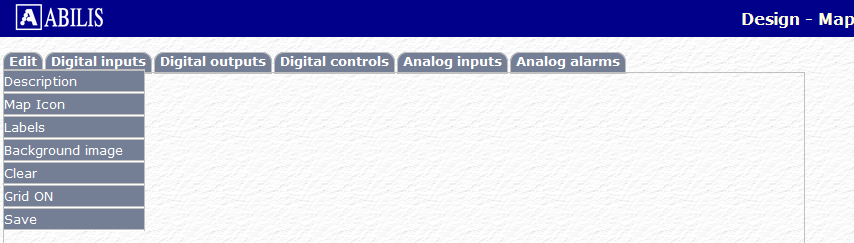

Figure 66.3. Design-Map

From Edit Tabis possible to:

- Add a Description of the maps. I.e: My company building

- Select a Map Icon. For example:

- Select label settings

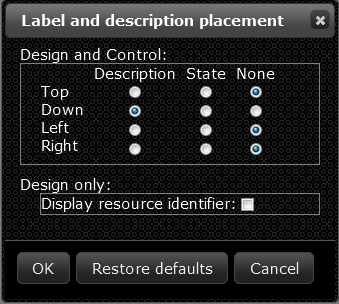

Figure 66.4. Label settings

- Select background image

- Clear all

- Selecting Grid ON/OFF

- Save the changes

From Others Tabs is possible to place on the map Digital I/O, Analog Inputs ad Analog Alarms

For Example:

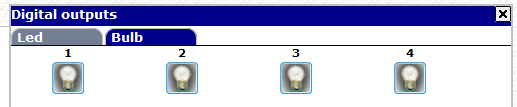

Figure 66.5. Digital outputs settings

For hardware configuration follow the chapters Chapter 13, IOBOX of Abilis Tutorial.
