2.15. ELTI devices

2.15.1. POTSBOX

The POTSBOX is used for multiplexing analogue telephony lines over one single UTP cable carrying uncompressed/unpacketised voice channels. The port through which it connects is called ELTI.

POTSBOX is a device available in more versions:

  • POTSBOX-4 for 4 analogue handsets

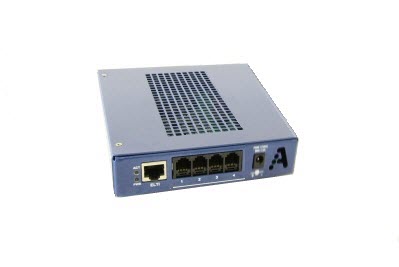

    Figure 2.64. POTSBOX-4

    POTSBOX-4

    • Dimensions[mm]: 1700x130x30;

      Weight: 0,65 Kg;

      Power supply: 12V DC 1.0A.

  • POTSBOX-8 for 8 analogue handsets

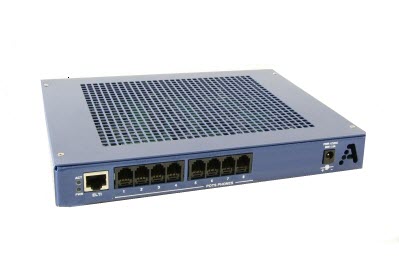

    Figure 2.65. POTSBOX-8

    POTSBOX-8

    • Dimensions[mm]: 235x173x30;

      Weight: 0,95 Kg;

      Power supply: 12V DC 1.5A.

  • POTSBOX-12 for 12 analogue handsets

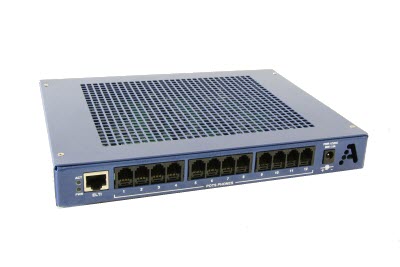

    Figure 2.66. POTSBOX-12

    POTSBOX-12

    • Dimensions[mm]: 235x173x30;

      Weight: 1,0 Kg;

      Power supply: 12V DC 1.5A.

  • POTSBOX-24 for 24 analogue handsets

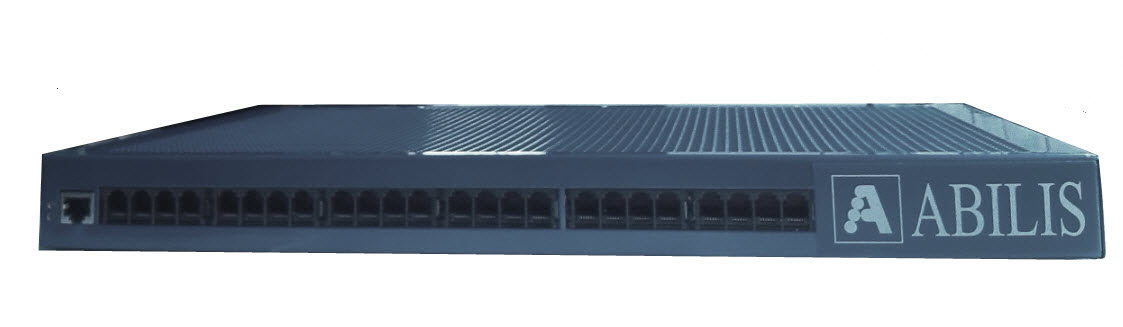

    Figure 2.67. POTSBOX-24

    POTSBOX-24


    • Dimensions[mm]: 440x320x45;

      Weight: 2,5 Kg;

      Power supply: 12V DC 5.0A.

  • POTSBOX-32 for 32 analogue handsets

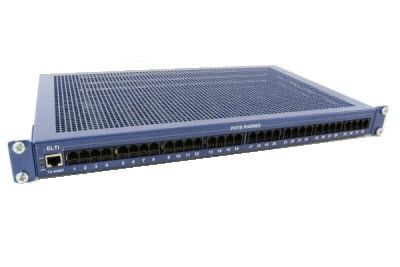

    Figure 2.68. POTSBOX-32

    POTSBOX-32

    • Dimensions[mm]: 440x320x45;

      Weight: 2,5 Kg;

      Power supply: 12V DC 5.0A.

    [Note]Note

    The POTSBOX is supported starting from Abilis firmware version 7.2.

    [Tip]Tip

    Interesting chapters:

    Section 2.13.10, “POTSHUB”;

    Section 3.11, “POTSBOX connection”;

    Chapter 12, POTSBOX.
