72.25. Commands

The Commands page shows the main information about the system (diagnostics, statistics, etc) and its configurations (general information, etc).

By default, the anonymous access in this section is disabled; add the path in the HTTP Virtual Paths Access Rights Table for httpuser.

[12:35:48] ABILIS_CPX:a http rights path:/sys/cp/ user:httpuser

COMMAND EXECUTED

[22:53:51] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------

-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
4 /sys/cp/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
3 /sys/opc/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
2 /sys/pub/
     anonymous                        r---  ----  YES    PLAIN,SSL
-------------------------------------------------------------------------------

Go to Abilis Home page, log-in,go to the Administration page and select the Commands link.

72.25.1. Control Port

The Control Port page permits to insert interactive commands as fin the command line.

[Important]Important

Configuration commands are not allowed.

72.25.2. Licence permissions

The table of licence permissions can be shown clicking Licence permissions.

[Tip]Tip

Refer to chapter Chapter 7, Licencing to learn more about managing licences.

72.25.3. Scheduled system reboot

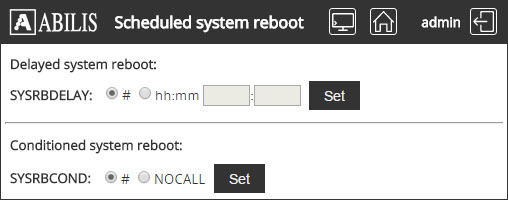

It's possible to restart the Abilis clicking Scheduled system reboot. The following page is shown:

There are two ways to restart the Abilis:

  • The system will reboot after the specified delay, where 'hh' [0..2400], 'mm' [0..59].

    Put check "hh:mm", insert the delay in hours or/and minutes and click Set. The following page is shown:

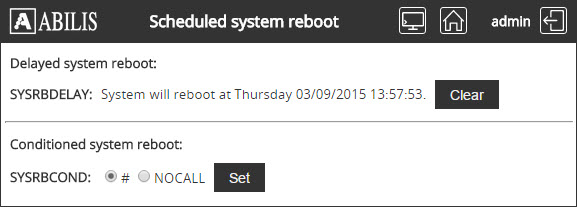

    Click Yes to confirm. The following page is shown:

    Click Clear to cancel the scheduled reboot.

  • The system will reboot as soon as all CTI calls are closed.

    Put check "NOCALL", and click Set. The following page is shown:

    Click Yes to confirm.

[Tip]Tip

Interesting chapter: Section 6.13.31, “WARM START”

72.25.4. Hardware devices configuration

The table of active devices can be shown clicking Hw devices configuration.
