73.1. Line Load

Giving appropriate rights to the user is needed to access this page, so use the following commands:

[11:28:50] ABILIS_CPX:a http rights path:/sys/trfa/ip/ user:httpuser

COMMAND EXECUTED

[11:40:04] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
2 /sys/trfa/ip/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------

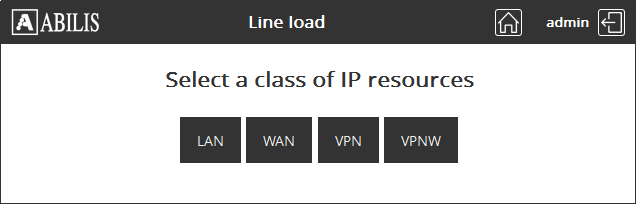

Log-in and click Line Load to access the following page:

[Tip]Tip

The classification is set by default when an IPRES is created and can be changed by the technician at any moment with the parameter TYPE in IPRES.

Clicking "LAN" button will display all LAN resources:

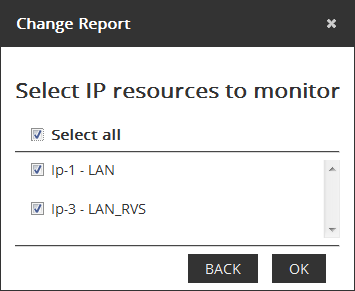

Here you can choose one or a several, or all. Click "OK" to continue.

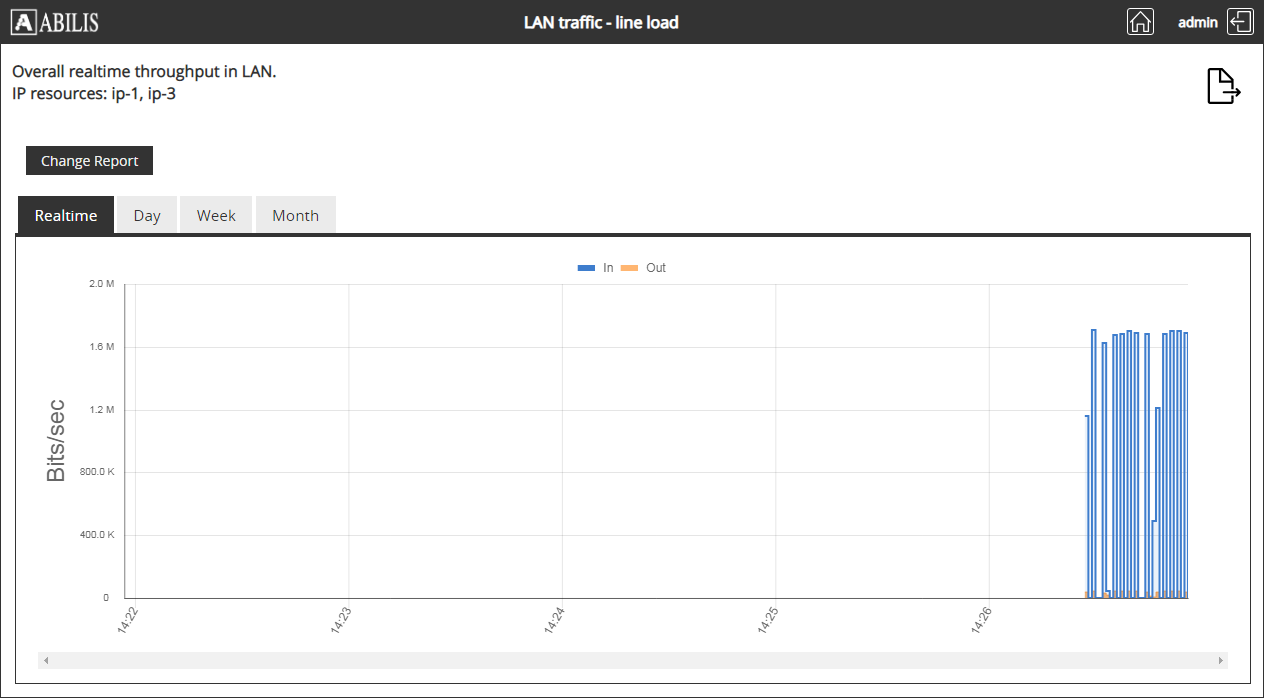

This graph shows the summed realtime traffic for IP-1 and IP-3.

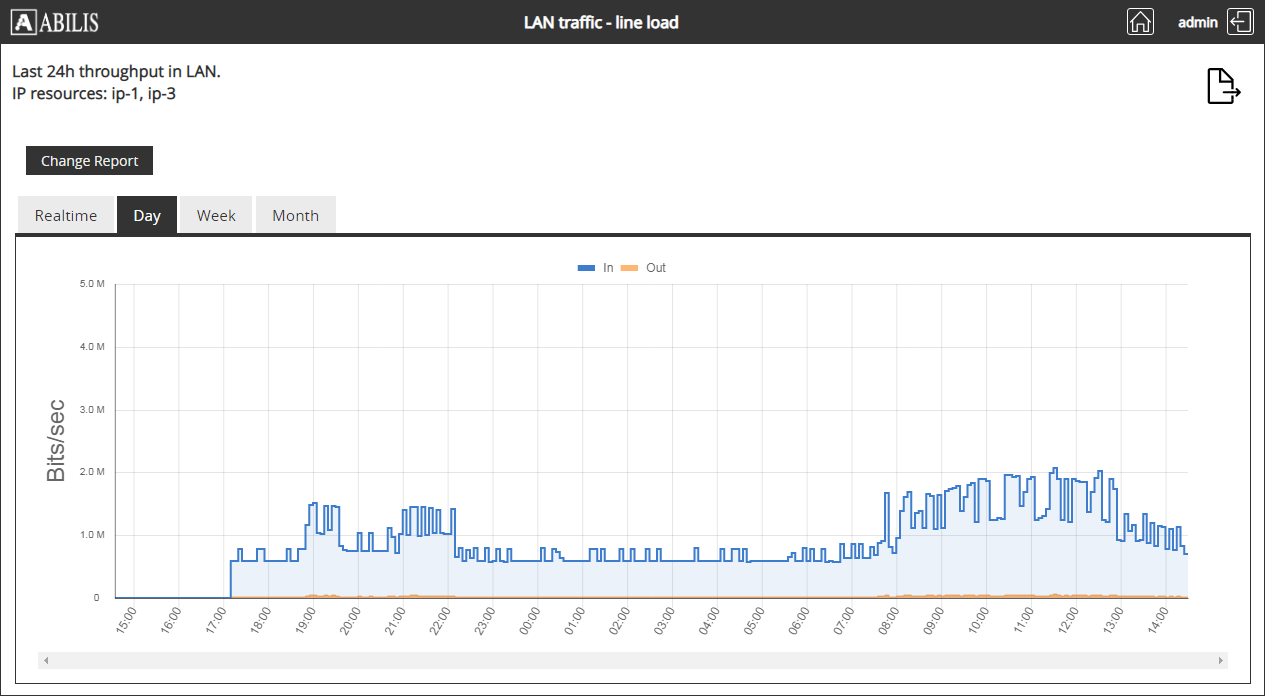

To see daily traffic, please click the "Day" tab, the "Week" tab for weekly traffic and "Month" for monthly.

To change the report type, click the "Change Report" button.

[Tip]Tip

The classification is set by default when an IPRES is created and can be changed by the technician at any moment with the parameter TYPE in IPRES.

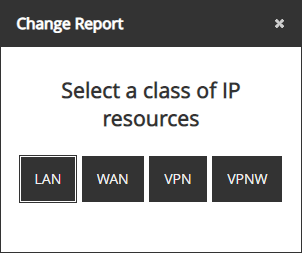

For example, click the "VPN" button.

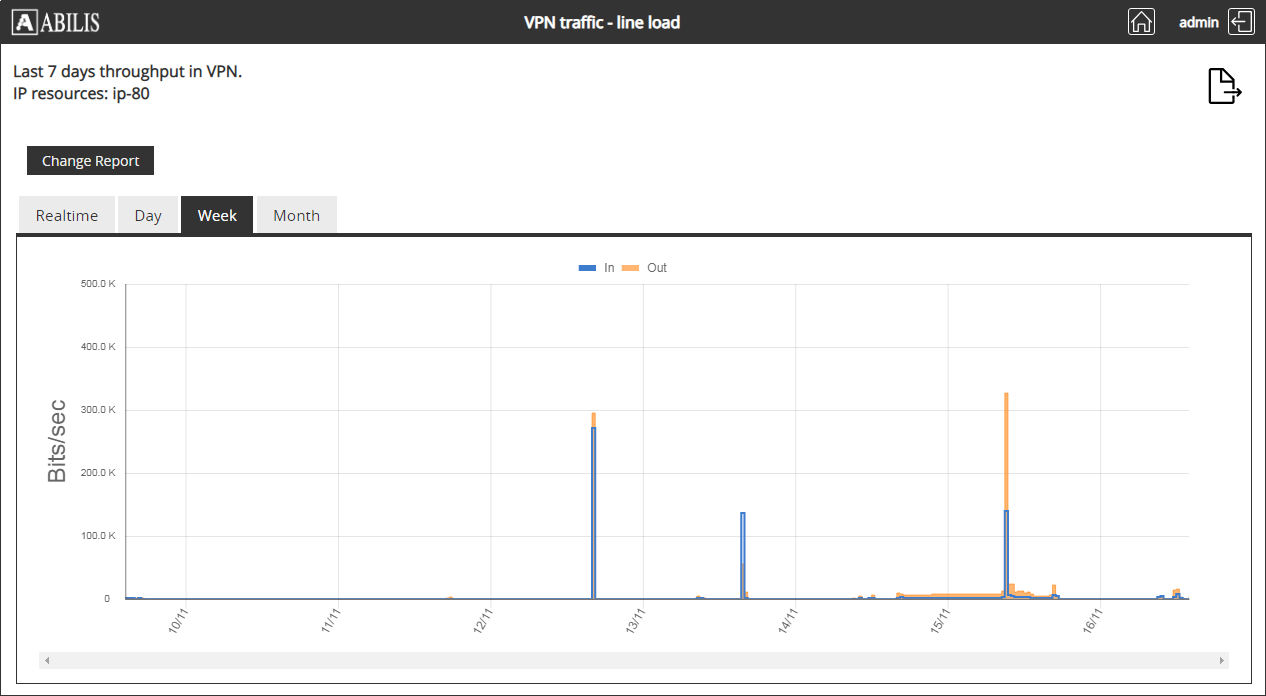

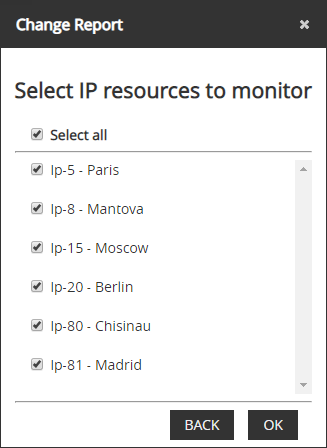

For example, select only IP-80 and click "OK" and after, click the "Week" tab to see weekly traffic.

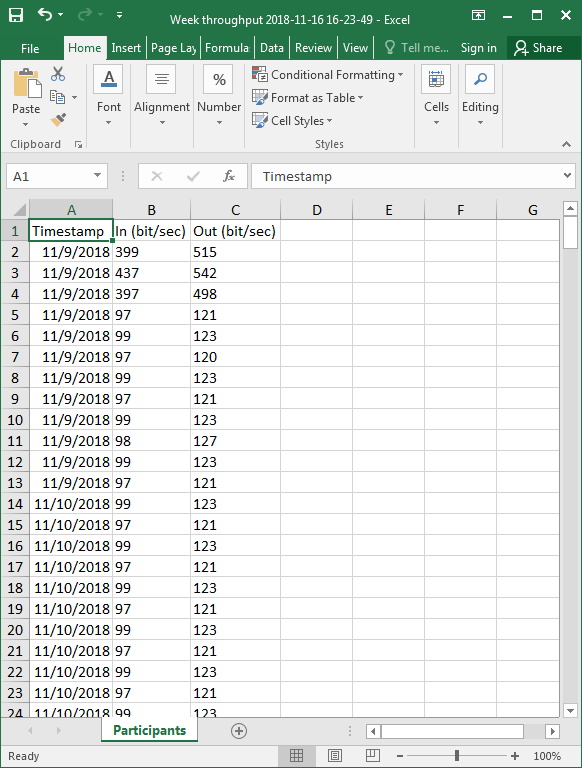

Click button to download spreadsheet of the current chart.
