| 78.2. VPN status - Monitor | ||
|---|---|---|
 | Chapter 78. VPN status |  |
| 78.2. VPN status - Monitor | ||
|---|---|---|
| | Chapter 78. VPN status | |

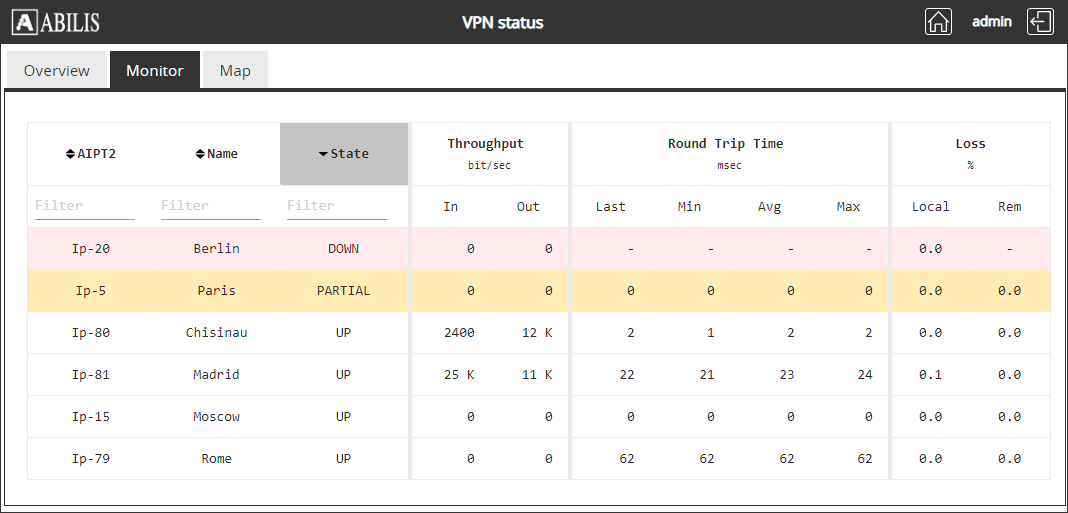

From the "VPN status" page, click the "Monitor" tab to access the following page.
This page displays summarized information about link states, current traffic, round trip time, packet loss.

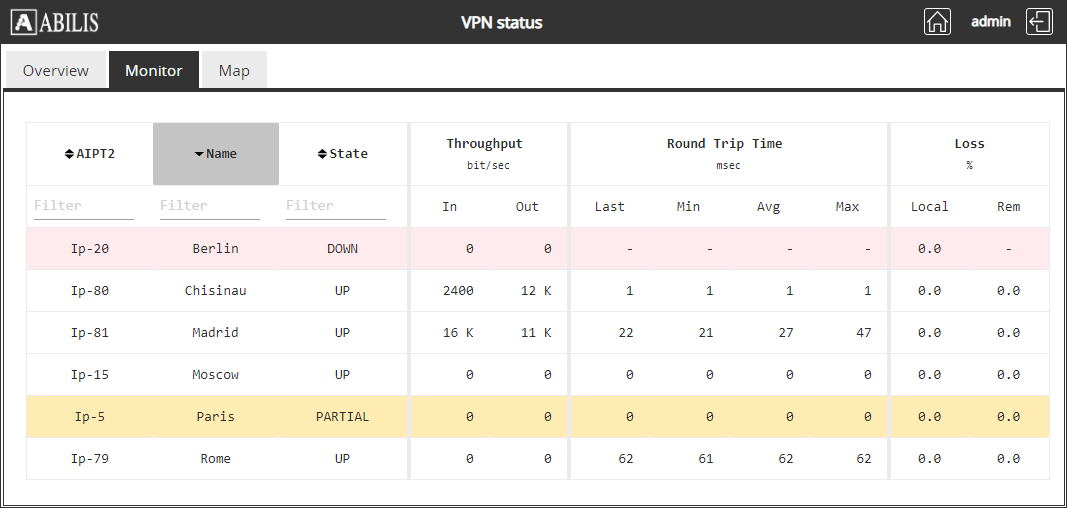

It is possible to order VPN by AIPT2 index, Name and State. In the example above it is ordered by State.
To order by Name click the Name.

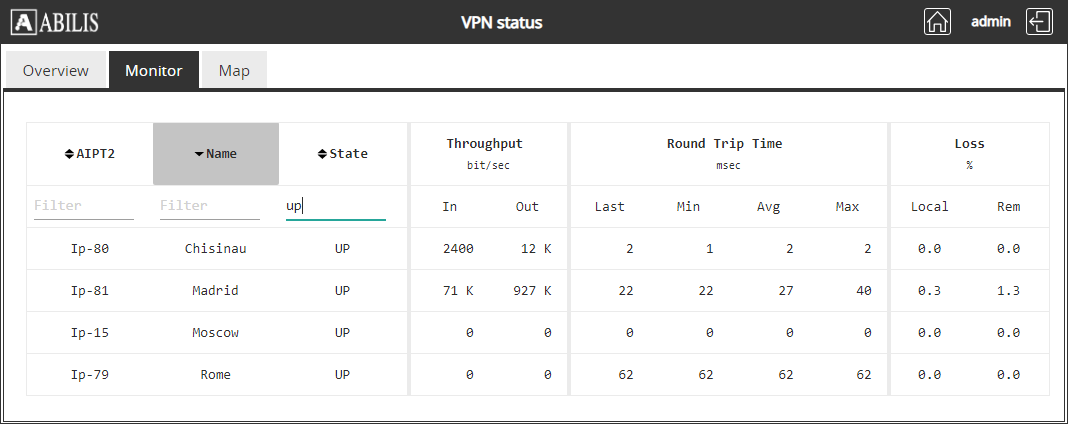

VPN filtering is also possible. For this, please insert a keyword in the Filter space.

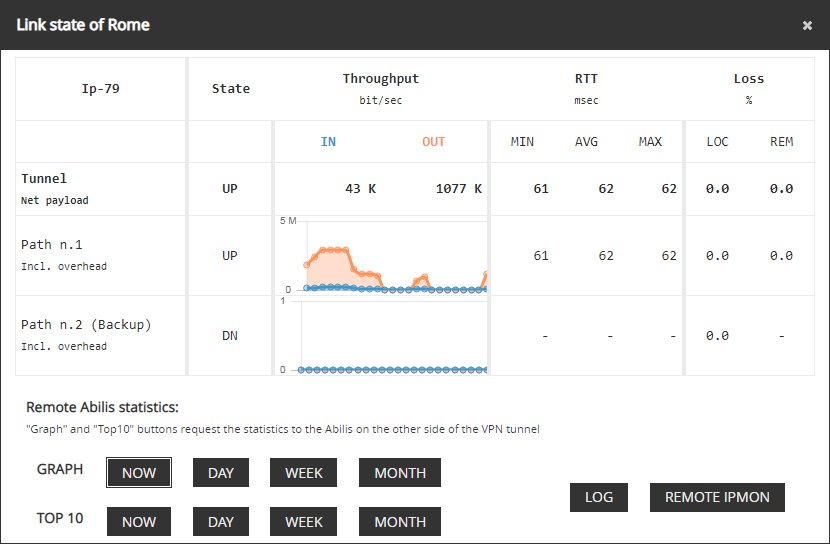

Click a VPN, to display detailed information about this VPN.
![[Tip]](../images/tip.png) | Tip |
|---|---|
For more details about this page, see: Section 78.1.1, “Detailed Link state”. |
| |  | |
