Abilis Base-P and Abilis Base-Q are two expandable devices. The difference between the two models is the type of processor and the amount of RAM. Below there are the hardware characteristics of the base unit:

CPU Core2 Duo E6400 2.5 GHz for Abilis Base-P or Core2 Duo E6550 CPU 2.5 GHz for Abilis Base-Q;
1024 MB RAM DDR2 for Abilis Base-P or 4096 MB RAM DDR2 for Abilis Base-Q.
The other components remain the same:
512MB Compact-Flash modules for boot;
PC platform with 2 PCI-slots and 2 PCI Express;
2 RS-232 ports;
Hardware Watchdog processor;
10 USB ports;
1 Gigabit Ethernet;
3 Power out connector useful to supply UMTS BOX2 or POTSBOX.

These are the expansions:

up to 8 ISDN-2 or ISDN30 ports. Refer to the following chapters: Section 2.8.2, “QPRIX”, Section 2.8.4, “PB44X”, Section 2.8.7, “BRI-HFC4 / BRI-HFC8”,Section 2.8.3, “PB22”.
up to 32 analogue extensions (for “internal” telephones or fax). Refer to the following chapter: Section 2.8.8, “POTS 4/8/16”.
up to 256 analogue extensions (for “internal” telephones or fax). Refer to the following chapter: Section 2.8.11, “POTSHUB”.
up to 2 Ethernet ports.Refer to the following chapter: Section 2.8.12, “Ethernet”.
up to 16 Ethernet ports.Refer to the following chapter: Section 2.8.14, “QUAD-Ethernet”.
up to 2 Gigabit Ethernet ports.Refer to the following chapter: Section 2.8.13, “GigaEthernet”.
up to 10 xDSL concurrent connections to the Internet. Refer to the following chapter: Section 2.9.1, “ADSL modem”.
up to 10 UMTS gateways (up to 16 simultaneous calls between the fixed and the mobile network). Refer to the following chapter: Section 2.9.5, “UMTS-BOX2”.
up to two 5” 5200 RPM SATA Hard-Drives.

Abilis Base-Q includes all licences but VMX and Data Comp ones, because it's a class 13 device. Refer to Section 6.1.1, “ABILIS ID and the class of product” to know more about licencing.

2.3.1. Physical and electrical specifications

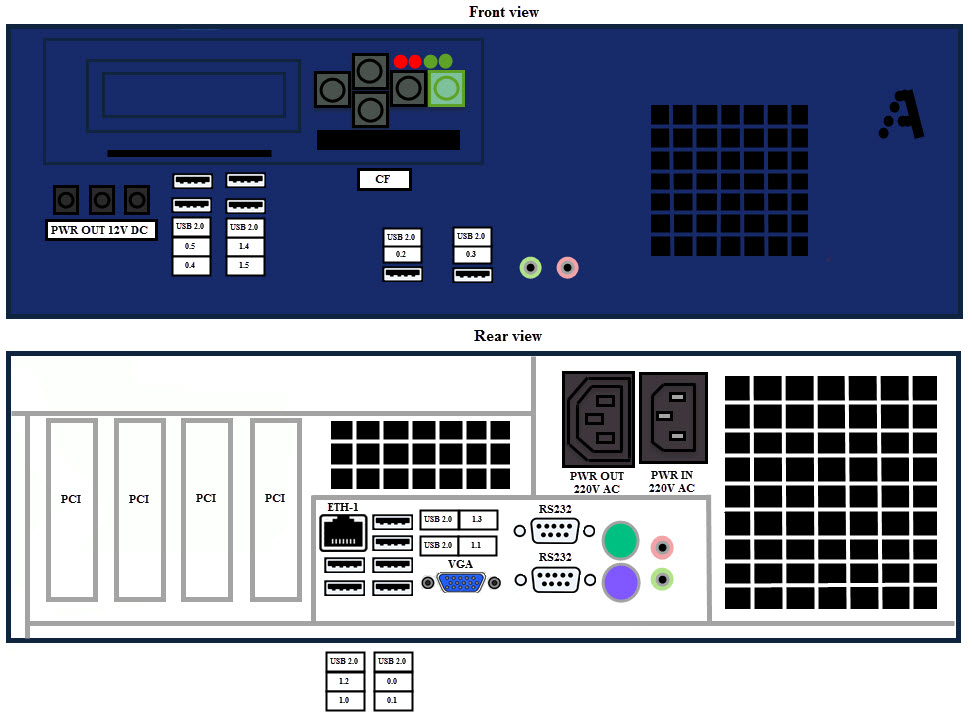

Figure 2.6. The numbering of the physical ports

Dimensions[mm]: 380x340x105;

Weight: 7,5 Kg;

Power supply: 110-230VAC, 150W.
