	Chapter 3. Physical connections

When ISDN-BRI ports (e.g. BRI-HFC4, BRI-HFC8) are used, a line termination resistor (ISDN Adapter or impedance matching adapter) must be used to avoid signal reflections. One adaper per port must be used.

The telecom NT1 Network-termination units and most of the PBX (switchboards) usually have already a line termination resistor. Abilis BRI port doesn't have any.

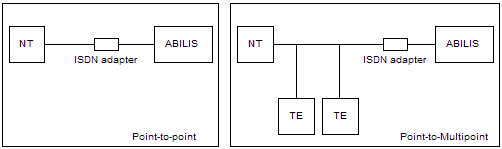

Differences between a Point-to-Point connection and a Point-to-multiPoint connection:

Figure 3.4. ISDN Adapter

Point-to-Point (only one device can be connected): an impedance matching adapter is ALWAYS necessary.
Point-to-Multipoint :
- If Abilis is the only device to be connected to the network-termination unit of the S0 bus or if Abilis is the farthest device from the NT unit, the impedance matching adapter MUST be inserted.
- If Abilis isn't the farthest device, the impedance matching adapter MUST NOT be inserted.

	Warning
	The impedance matching adapter MUST be connected near the ISDN port of the Abilis (you can use the 10 cm cables provided with the Abilis).

	Warning
	Improper connection of line terminations may cause disturbances like noisy conversations, data loss, line drops, and in general a poor and unstable service.

	Tip
	Interesting chapters: Section 73.1, “How to configure ISDN ports to connect PBX or ISDN lines”.
