	Chapter 3. Physical connections

In this section it's shown how to connect a RVS to the Abilis CPX.

Follow the steps below to connect a RVS:

Power on Abilis;
Connect the RVS Ethernet port to Abilis Ethernet port using the Ethernet cable;
Connect the power supply to RVS;
There are two ways of connecting a power supply cable:
- From Power OUT port of Abilis.
- From External Power Supply.
Add/configure the RVS device.

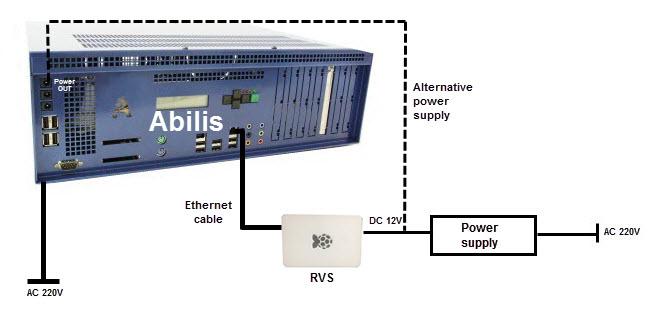

Figure 3.24. RVS connection

In this section it's shown how to connect a RVS Digital Inputs/Outputs.

Figure 3.25. Pinout of RVS I/O board

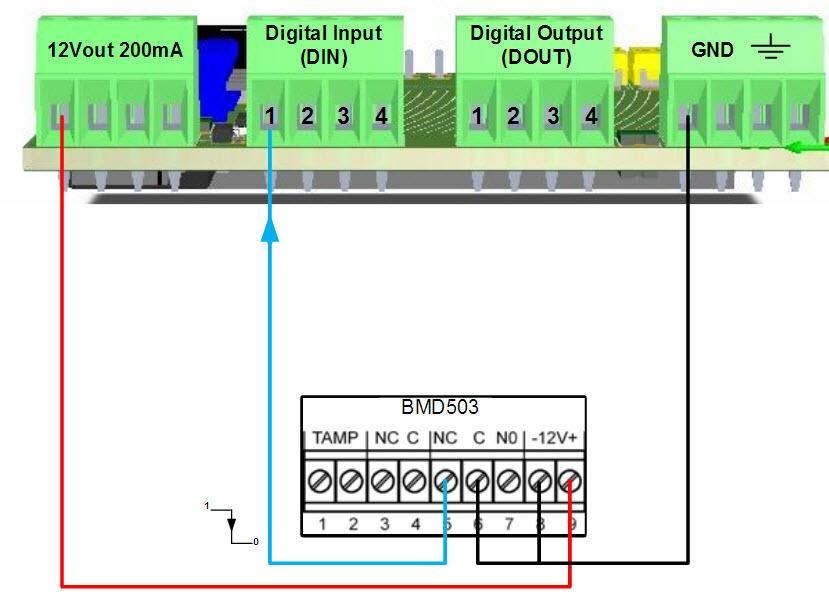

The following figure explains how to connect a motion sensor (BMD503) to Digital Input of RVS.

Figure 3.26. Example of DIN connection

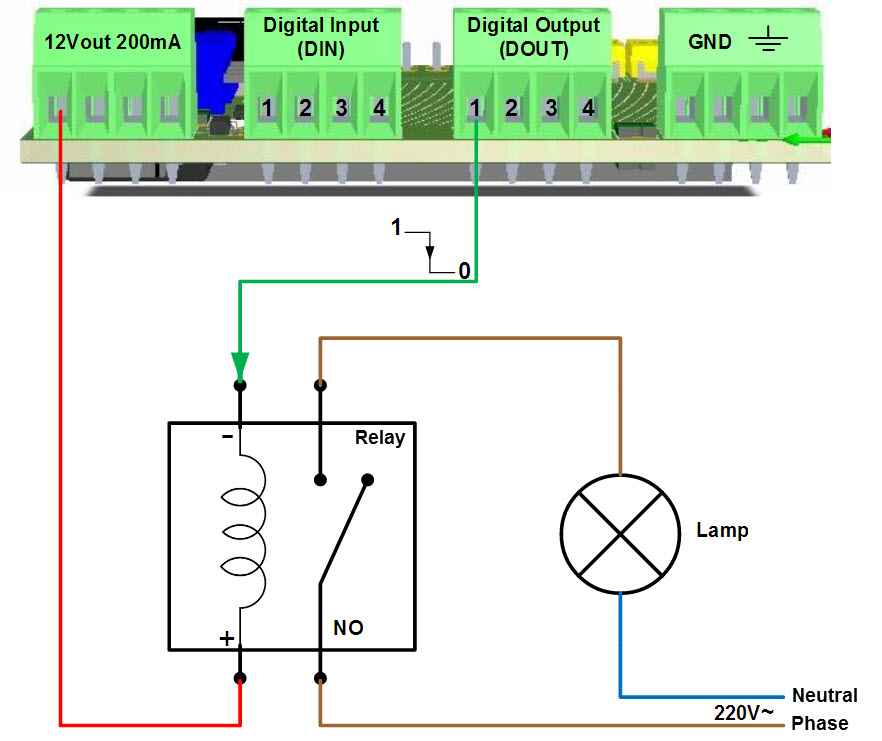

The following figure explains how to connect an external relay to Digital Output of RVS.

Figure 3.27. Example of DOUT connection
