3.9. UMTS-BOX connection

In this section, it's shown how to connect an UMTS Box to the Abilis CPX.

  1. Power on Abilis.

  2. Insert one or two SIM cards in the UMTS Box.

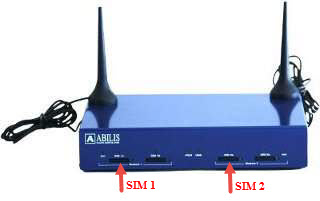

    Figure 3.11. Inserting SIM

    Inserting SIM

  3. Connect the USB cable and the power supply cable.

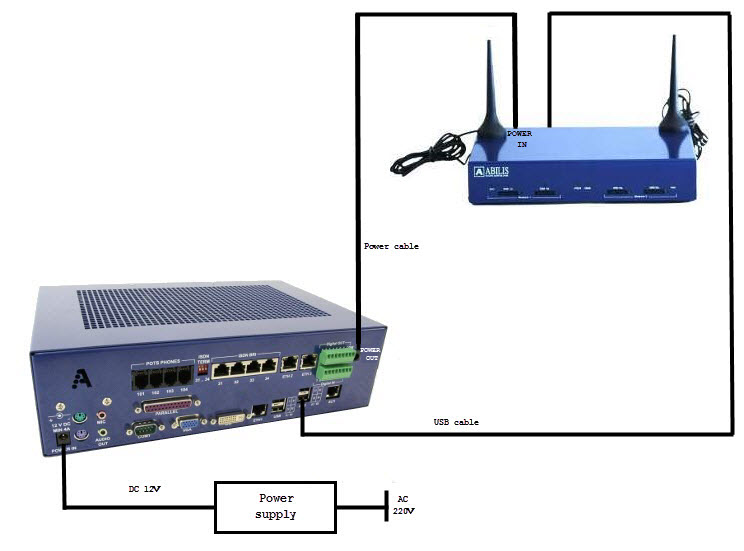

    Figure 3.12. Connecting UMTS-BOX

    Connecting UMTS-BOX

[Tip]Tip

Interesting chapter: Chapter 15, UMTS BOX.
