IP/VPN status

This page allows to monitor the status of the IP resources

Giving appropriate rights to the user is needed to access this page, so use the following commands:

[11:28:50] ABILIS_CPX:a http rights path:/sys/status/ipvpn/ user:httpuser

COMMAND EXECUTED

[11:40:04] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
...
-------------------------------------------------------------------------------
  3 /sys/status/ipvpn/
     httpuser                         r---  l---  YES    PLAIN,SSL
...
-------------------------------------------------------------------------------
2 /sys/pub/
     anonymous                        r---  ----  YES    PLAIN,SSL
-------------------------------------------------------------------------------

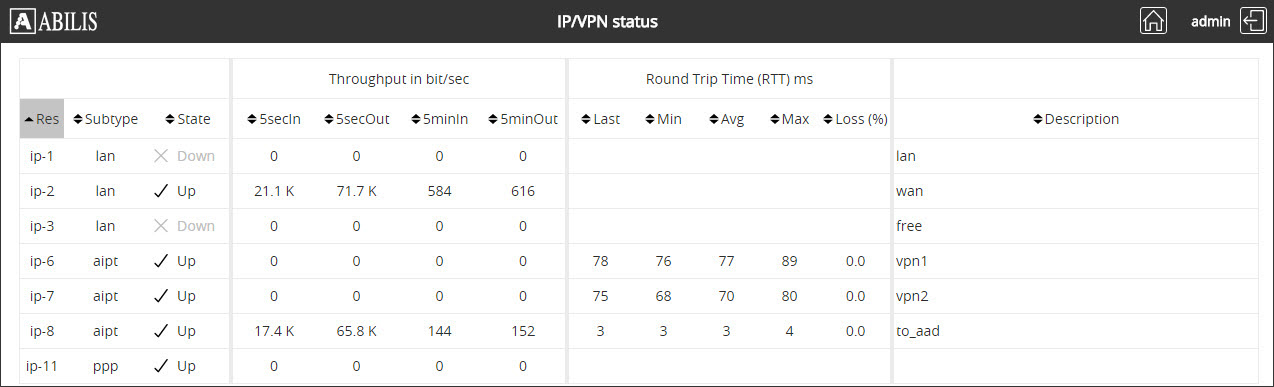

Log-in and click IP/VPN status to access the following page:

This table shows the status of each IP resource.
