To enable the access to the web interface follow the chapters Part V, “Web interface” of Abilis Tutorial.

The HTTP rights path for Automation is /sys/io/.

	Important
	Remember to add "write permissions" to can edit Automation maps, please see Section 39.2.3, “HTTP Virtual Paths Access Rights Table”.

	Tip
	Interesting chapters: Section 58.2, “Add http rights”; Section 63.1.7, “Example - How to give the http rights to a user through web interface”.

	Warning
	If this section isn't active, please refer to Section 16.3, “Activating IOBOX devices”.

From Abilis Start Page the user can click on Automation Icon to reach the maps page.

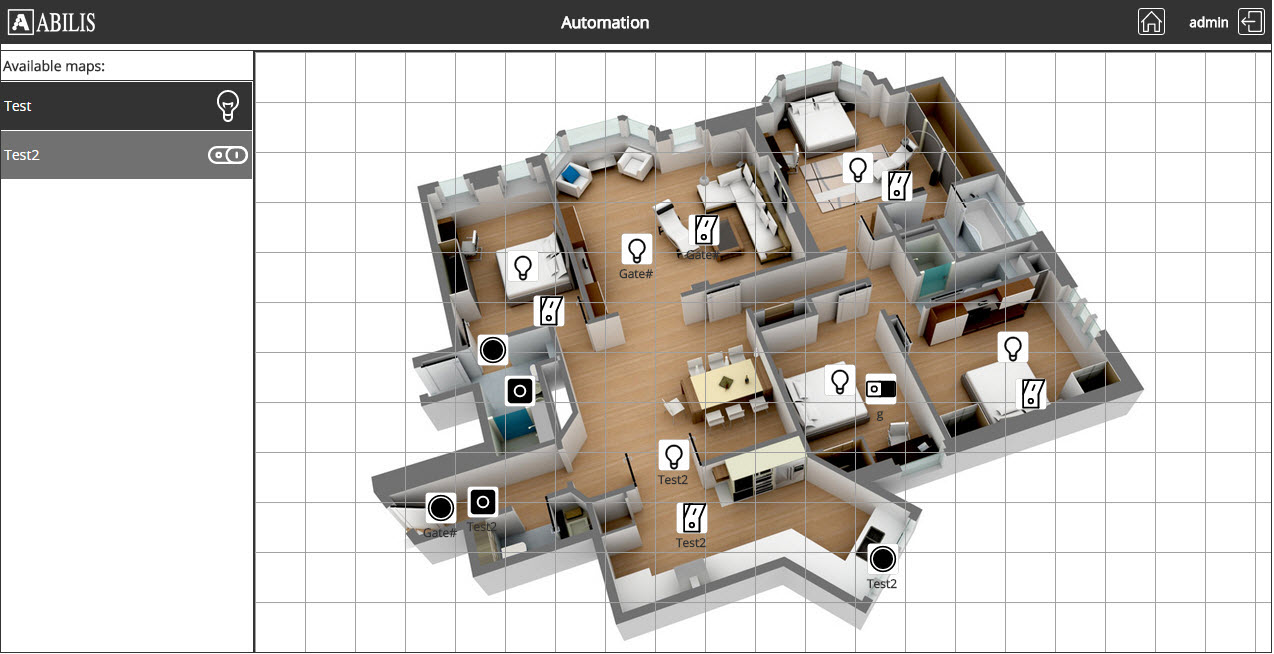

Figure 72.1. Automation Map

Click on to switch on/off the light

To configure that login like user admin and select from Abilis Start Page and to reach following page.

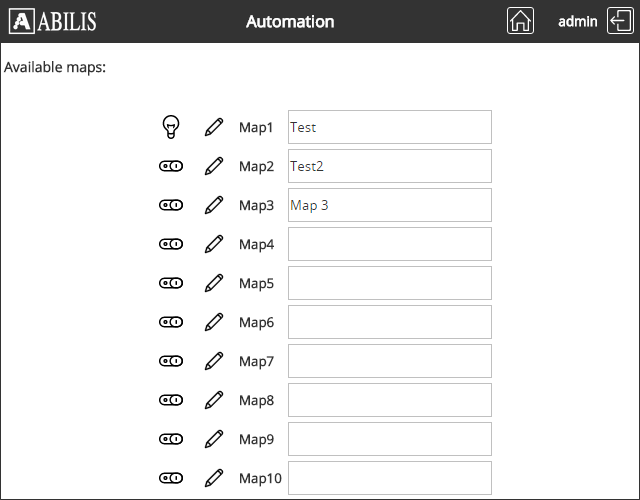

Figure 72.2. Automation Map settings

Click on to obtain the following page.

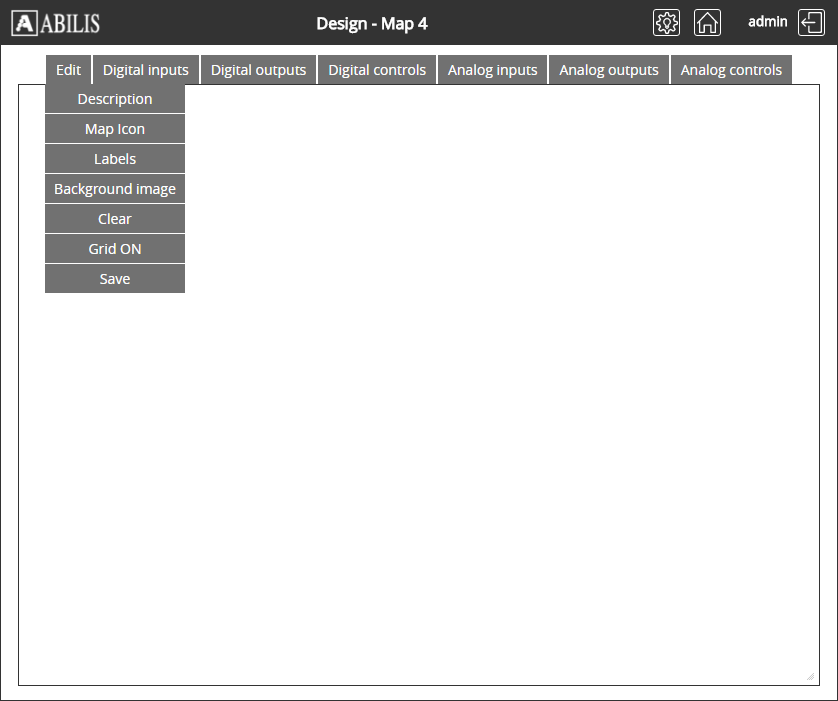

Figure 72.3. Design-Map

From Edit Tab is possible to:

- Add a Description of the maps. I.e: My company building.

- Select a Map Icon. For example:

- Select label settings.

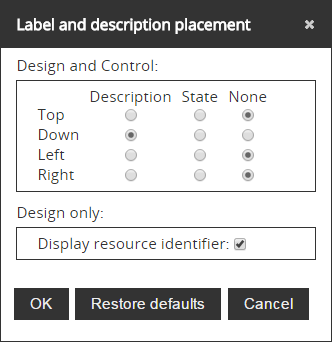

Figure 72.4. Label settings

- Select background image.

- Clear all.

- Selecting Grid ON/OFF.

- Save the changes.

From Others Tabs is possible to place on the map Digital I/O/Controls and Analog I/O/Controls.

For Example:

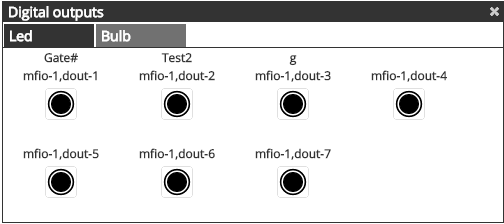

Figure 72.5. Digital outputs

For hardware configuration follow the chapter Chapter 16, IOBOX of Abilis Tutorial.
