The most useful parameters are Line Attenuation, SNR Margin and Rate.
![[Note]](../images/note.png) | Note |
|---|---|
The default IP address is 192.168.168.168/28. |
| Note |
|---|---|
The default user is admin and password is VuDi218. |
Open a TELNET connection from Abilis to Ethernet modem, typing the following commands:
[16:13:17] ABILIS_1: <- type Ctrl+P to access to the TELNET server prompt of ABILIS. [192.168.1.1] TELNETS>clrCLR 00 00 [192.168.1.1] TELNETS>1-tln<- to access to the TELNET client prompt of ABILIS. COM [192.168.1.1] TELNETC>open 192.168.168.168<- to open a connection to the Ethernet modem. Trying 192.168.168.168 ... Open ^ABCM963381 Broadband Router Login:adminPassword: >
To see UP/DOWN rate information, type the following command:
> adsl info
adsl: ADSL driver and PHY status
Status: Showtime
Last Retrain Reason: 0
Last initialization procedure status: 0
Max: Upstream rate = 16504 Kbps, Downstream rate = 56867 Kbps
Bearer: 0, Upstream rate = 16428 Kbps, Downstream rate = 55929 Kbps
Bearer: 1, Upstream rate = 0 Kbps, Downstream rate = 0 Kbps
> To see ADSL/VDSL line parameters, type the following command:
> adsl info --show
adsl: ADSL driver and PHY status
Status: Showtime
Last Retrain Reason: 0
Last initialization procedure status: 0
Max: Upstream rate = 16504 Kbps, Downstream rate = 56778 Kbps
Bearer: 0, Upstream rate = 16428 Kbps, Downstream rate = 55929 Kbps
Bearer: 1, Upstream rate = 0 Kbps, Downstream rate = 0 Kbps
Link Power State: L0
Mode: VDSL2 Annex B
VDSL2 Profile: Profile 17a
TPS-TC: PTM Mode(0x0)
Trellis: U:ON /D:ON
Line Status: No Defect
Training Status: Showtime
Down Up
SNR (dB): 5.9 5.2
Attn(dB): 19.2 0.0
Pwr(dBm): 14.3 3.3
VDSL2 framing
Bearer 0
MSGc: -6 -6
B: 243 227
M: 1 1
T: 0 0
R: 10 14
S: 0.1389 0.4335
L: 14627 4466
D: 8 4
I: 254 242
N: 254 242
Q: 8 4
V: 0 0
RxQueue: 55 35
TxQueue: 11 7
G.INP Framing: 18 18
G.INP lookback: 11 7
RRC bits: 24 24
Bearer 1
MSGc: 122 58
B: 0 0
M: 2 2
T: 2 2
R: 16 16
S: 8.0000 16.0000
L: 32 16
D: 1 1
I: 32 32
N: 32 32
Q: 0 0
V: 0 0
RxQueue: 0 0
TxQueue: 0 0
G.INP Framing: 0 0
G.INP lookback: 0 0
RRC bits: 0 0
Counters
Bearer 0
OHF: 0 0
OHFErr: 817 2
RS: 2759975232 3333659
RSCorr: 12759887 168385
RSUnCorr: 0 0
Bearer 1
OHF: 117865089 900807
OHFErr: 0 38
RS: 942920217 918874
RSCorr: 676 4961
RSUnCorr: 0 0
Retransmit Counters
rtx_tx: 1720499 13610
rtx_c: 134062 122655
rtx_uc: 18163 81463
G.INP Counters
LEFTRS: 115 45
minEFTR: 55921 16728
errFreeBits: 1614852541 1425661549
Bearer 0
HEC: 0 0
OCD: 0 0
LCD: 0 0
Total Cells: 1753488685 0
Data Cells: 1385294002 0
Drop Cells: 0
Bit Errors: 0 0
Bearer 1
HEC: 0 0
OCD: 0 0
LCD: 0 0
Total Cells: 0 0
Data Cells: 0 0
Drop Cells: 0
Bit Errors: 0 0
ES: 271 2
SES: 1 0
UAS: 31 31
AS: 1893463
Bearer 0
INP: 60.00 58.00
INPRein: 0.00 0.00
delay: 0 0
PER: 0.00 0.00
OR: 0.01 0.01
AgR: 55985.84 16765.05
Bearer 1
INP: 2.00 4.00
INPRein: 2.00 4.00
delay: 0 0
PER: 16.06 16.06
OR: 63.75 31.87
AgR: 63.75 31.87
Bitswap: 534305/534782 28554/28556 | Note |
|---|---|
The default IP address is 192.168.168.168/28. |
| Note |
|---|---|
The default user is admin and password is VuDi21 |

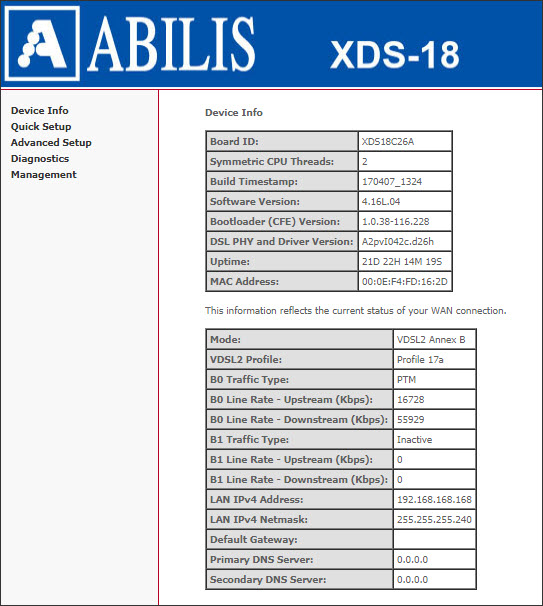

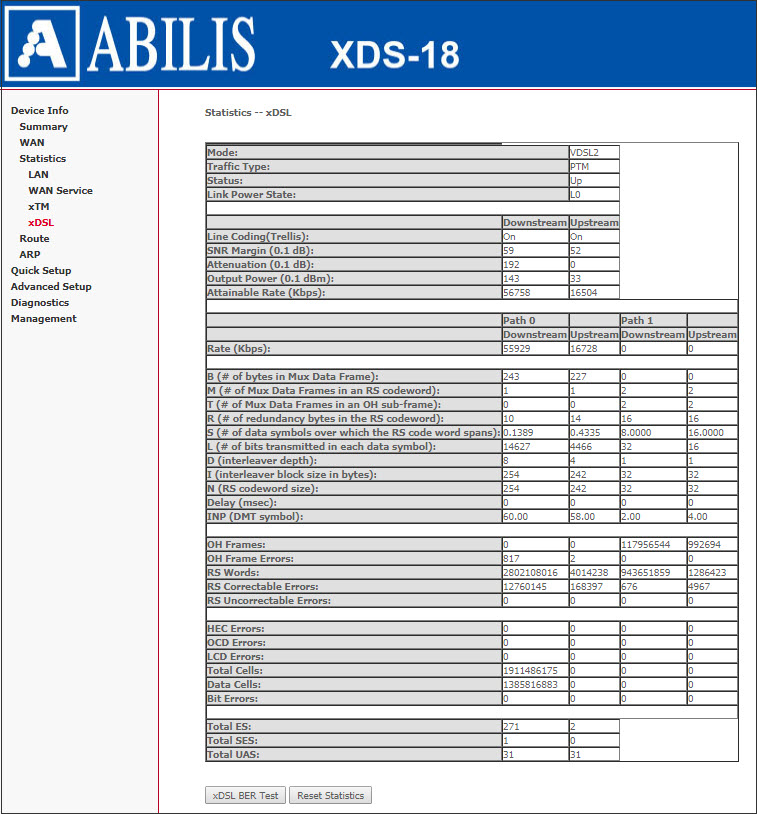

From the Home page click "Device Info" -> "Statistics" -> "xDSL".
| |  | |
