15.3. Last Calling Service for UMTSBOX

The Last Calling Service is useful to route a call received by a SIM inserted in UMTS BOX, toward the last number which called the calling number.

[Warning]Warning

Last Calling number Service requires a separate licence.

Suppose to have this situation:

Suppose we have a UMTSBOX with port CTIP:501 with the following configuration:

[13:25:57] ABILIS_CPX:d p ctipe:501

CTIP:501 DESCR:SIM_320654321
Act     card:CELL32-1<1>                USER:#
Run     OPSTATE:UP        LOG:DS                               TYPE:NET-PUBLIC
        signalling:CELL                 HOLD:NO
        VOICE-ROAMING:DISABLED
        NUM:*                           ADDRBOOK-NUM:NUM
        CDO:#
        NET-MODE:AUTO     NET-SEL:AUTO       NET:
        PDN-MODE:AUTO     PDN-ROAMING:DISABLED
        PDN-APN:#
        HOLD-ENABLE-LIST:#                   DIAL-IN-LIST:#
        LOOP:NO           PIN:2112      GAIN-IN:SYS      CODEC-GAIN-IN:SYS
        DIALT:5           PIN2:#        GAIN-OUT:SYS     CODEC-GAIN-OUT:SYS
        LCS-GROUP:NONE    BUSY-NOCHAN:NO

It's necessary to create a LCSG (Last Calling number Service Group):

[13:26:47] ABILIS_CPX:a lcsg id:1 descr:UMTS_LCS

COMMAND EXECUTED

[13:27:03] ABILIS_CPX:d lcsg

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
----+--------------------------------------------------------------------------
ID: |[DESCR:]
    |CPS-LIST:              NAT-PREFIX:            INT-PREFIX:    COUNTRY-CODE:
    |CB-PERMIT-CD:
    |CB-UNK-CDO:            CB-NAT-CDO:            CB-INT-CDO:
    |CB-SDO:                CB-SGO:                CB-CDO-DFT:
    |[CTI Ports, CTI Clusters, IAX users, SIP users]
----+--------------------------------------------------------------------------
 1   [UMTS_LCS]
     #                      SYS                    SYS            SYS
     *
     ux'CALLING'            ux0'CALLING'           ux00'CALLING'
     *                      *                      *
----+--------------------------------------------------------------------------
[Warning]Warning

To activate the changes made on the LCSG, execute the initialization command init ctisys. Remember to save the configuration (save conf).

For the CTIP:501 is necessary to configure the LCS-GROUP parameter, where "1" is the ID:1 of LCSG.

[13:30:27] ABILIS_CPX:s p ctip:501 lcs-group:1

COMMAND EXECUTED

[13:30:44] ABILIS_CPX:d p ctipe:501

CTIP:501 - Not Saved (SAVE CONF), Not Refreshed (INIT) ------------------------
Act     DESCR:SIM_320654321
Run     card:CELL32-1<1>                USER:#
        OPSTATE:UP        LOG:DS                               TYPE:NET-PUBLIC
        signalling:CELL                 HOLD:NO
        VOICE-ROAMING:DISABLED
        NUM:*                           ADDRBOOK-NUM:NUM
        CDO:#
        NET-MODE:AUTO     NET-SEL:AUTO       NET:
        PDN-MODE:AUTO     PDN-ROAMING:DISABLED
        PDN-APN:unite.internet.md
        HOLD-ENABLE-LIST:#                   DIAL-IN-LIST:#
        LOOP:NO           PIN:2112      GAIN-IN:SYS      CODEC-GAIN-IN:SYS
        DIALT:5           PIN2:#        GAIN-OUT:SYS     CODEC-GAIN-OUT:SYS
        LCS-GROUP:1       BUSY-NOCHAN:NO
[Warning]Warning

To activate the changes made on the CTI ports, execute the initialization command init ctisys. Remember to save the configuration (save conf).

After configuration of the CTIP:501 the LCSG group will be shown in the following way:

[13:31:07] ABILIS_CPX:d lcsg

----+--------------------------------------------------------------------------
ID: |[DESCR:]
    |CPS-LIST:              NAT-PREFIX:            INT-PREFIX:    COUNTRY-CODE:
    |CB-PERMIT-CD:
    |CB-UNK-CDO:            CB-NAT-CDO:            CB-INT-CDO:
    |CB-SDO:                CB-SGO:                CB-CDO-DFT:
    |[CTI Ports, CTI Clusters, IAX users, SIP users]
----+--------------------------------------------------------------------------
 1   [UMTS_LCS]
     #                      SYS                    SYS            SYS
     *
     ux'CALLING'            ux0'CALLING'           ux00'CALLING'
     *                      *                      *
     - CTI Ports --------------------------------------------------------------
     501
----+--------------------------------------------------------------------------

Purpose of example: calls arriving from the PBX are routed to UMTSBOX (CTIP:501), and calls arriving from UMTSBOX are sent to the PBX.

[13:32:28] ABILIS_CPX:a ctir pr:0 poi:pbx out:501 cdi:?* sp:64000 lcs:yes lcst:6 descr:From_PBX_to_UMTSBOX

COMMAND EXECUTED

[13:32:53] ABILIS_CPX:a ctir pr:1 poi:501 out:pbx cdi:* sp:64000 descr:From_UMTSBOX_to_PBX

COMMAND EXECUTED

[13:33:00] ABILIS_CPX:d ctir

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Last change: 16/12/2015 09:05:16 EET

---+------+-----------------+---------+--------------------+--------------------
PR |[DESCR]
   |BCI   |POI |SR      |GI |OUT      |CDI                 |CDO
ACT|NEXT        |LAST       |EEC |T301|CGI                 |CGO
EDT|SP    |SC   |DJ   |MJ   |FMDJ|FMMJ|SDI                 |SDO
   |SPOUT |SCOUT|DJOUT|MJOUT|LCS |LCST|SGI                 |SGO
   |                        |BCO      |RGI                 |RGO
   |FMRLY |FAXSP|MODSP|FMLVL|ECM |UDT |IG  |OG  |SG        |DL  |DH
   |CODERS
   |CODERSOUT
   |TI1 .. TI5
--------------------------------------------------------------------------------
0   [From_PBX_to_UMTSBOX]
    VOICE  PBX  #        #   501       ?*                   *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
    *      *     *     *     YES  6    *                    *
--------------------------------------------------------------------------------
1   [From_UMTSBOX_to_PBX]
    VOICE  501  #        #   PBX       *                    *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------
[Important]Important

For routes towards SIP user is necessary to set the LCS parameter to YES, to activate the Last Calling Service. Another important parameter of CTIR routing is the LCST: Last Calling number Service records Timeout. The value Sys means the default value and will be the one setup by the CTISYS resource.

[Warning]Warning

Changes made on the CTI routing table aren't immediately active. To activate them, execute the initialization command init ctir.

Type the following command to show the LCST entries.

[13:45:54] ABILIS_CPX:d lcst

-----+----------------------+----------------------+---------------------+-----
GROUP|          CD          |         CG           |   Updated on (UTC)  |TOUT
     |                      |                      |  [Expiry on (UTC)]  |
-----+----------------------+----------------------+---------------------+-----
                      *** NO LCS TABLE ENTRY DEFINED ***

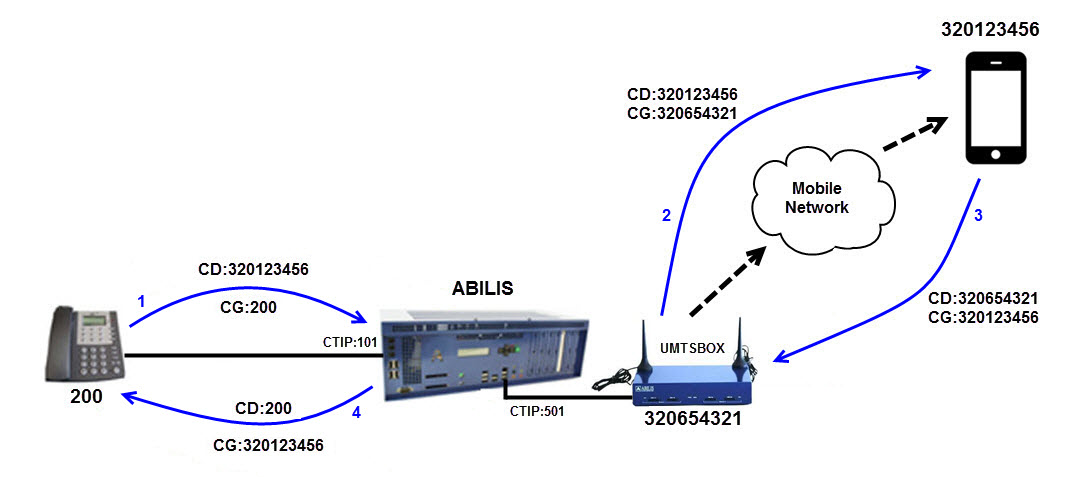

The user 200 from CTIP:101 (number 200) make a call to 320123456. The PR:0 of CTIR router sends this call to UMTSBOX. The following is the log of call.

[15:51:30] ABILIS_CPX:start ldme

Current Local Time: Wednesday 22/12/2015 12:20:35 (UTC+2.00)

Start Debug Log content real-time logging (Type CTRL+C + ENTER to stop):

Date   Time   Resource   Ses   Id   Event          Parameters
------ ------ ---------- ----- ---- -------------- --------------------------------------
221215 121139 CtiP-101    1218 1218 E-DialRx       CH:1 BC:Speech CG:uxq200 USER:200
221215 121139 CtiP-101    1218 1218 E-CallRx       CH:1 BC:Speech CD:ux320123456
                                                   CG:uxq200 USER:200
221215 121139 CtiP-101    1218 1218 E-Route Match  PR:1
221215 121139 CtiP-501    1218 1218 E-CallTx       BC:Speech TY:TR CD:ux320123456
                                                   CG:uxq200
221215 121139 CtiP-101    1218 1218 E-NumComplete  CDI:ux320123456 CDO:ux320123456
221215 121139 CtiP-501    1218 1218 E-ProgressRx   PI:81 88
221215 121139 CtiP-101    1218 1218 E-ProgressTx   PI:81 88
221215 121146 CtiP-501    1218 1218 E-AlertRx      CH:1 PI: 81 88
221215 121146 CtiP-101    1218 1218 E-AlertTx      CH:1 PI: 81 88
221215 121155 CtiP-501    1218 1218 E-ConnRx       CH:1
221215 121155 CtiP-101    1218 1218 E-ConnTx       CH:1
221215 122125 CtiP-101    1218 1218 E-DiscRx       CH:1 CAUSE:80 90 (U, Normal call
                                                   clearing) USER:200
221215 122125 CtiP-101    1218 1218 E-DiscConfTx   CH:0
221215 122125 CtiP-501    1218 1218 E-DiscTx       CH:1 CAUSE:80 90 (U, Normal call
                                                   clearing)

After this call, type again the command to show the LCST entries. Now the LCST table contains entries.

[15:52:28] ABILIS_CPX:d lcst

-----+----------------------+----------------------+---------------------+-----
GROUP|          CD          |         CG           |   Updated on (UTC)  |TOUT
     |                      |                      |  [Expiry on (UTC)]  |
-----+----------------------+----------------------+---------------------+-----
1     ux320123456            ux200                  22/12/2015 11:21:25   6
                                                    22/12/2015 17:21:25
[Note]Note

The LCST table entries expire after 6 hours (TOUT is equal with 6), because the LCST: Last Calling number Service records Timeout is equal to 6.

The phone 320123456 has received a call from 320654321. If the phone 320123456 makes a call to 320654321 the call is routed to number 200 (CTIP:101). The following is the log of call.

[15:54:20] ABILIS_CPX:start ldme

Current Local Time: Wednesday 22/12/2015 15:56:08 (UTC+2.00)

Start Debug Log content real-time logging (Type CTRL+C + ENTER to stop):

Date   Time   Resource   Ses   Id   Event          Parameters
------ ------ ---------- ----- ---- -------------- --------------------------------------
221215 155615 CtiP-501      95   95 E-CallRx       CH:85 BC:Speech CD:ue320654321
                                                   CG:uxq320123456
221215 155615 CtiP-501      95   95 E-LCS          CD:ue320654321 CG:uxq320123456
                                                   LCS-CD:ux200
221215 155615 CtiP-501      95   95 E-Route Match  PR:1
221215 155615 CtiP-101      95   95 E-CallTx       BC:Speech TY:TR CD:ux200
                                                   CG:uxq320123456
221215 155615 CtiP-501      95   95 E-NumComplete  CDI:ux200 CDO:ux200
221215 155615 CtiP-101      95   95 E-AlertRx      CH:1 USER:200
221215 155615 CtiP-501      95   95 E-AlertTx      CH:85
221215 155630 CtiP-501      95   95 E-DiscRx       CH:85 CAUSE:80 90 (U, Normal call
                                                   clearing)
221215 155630 CtiP-501      95   95 E-DiscConfTx   CH:85
221215 155630 CtiP-101      95   95 E-DiscTx       CH:1 CAUSE:80 90 (U, Normal call
                                                   clearing) USER:200
[Tip]Tip

Interesting chapters:

Section 50.8, “LCS - Last Calling number Service”;

Section 76.18, “How to configure Last Calling Service”;

Section 53.5.6, “Last Calling Service for a SIP user”;

Section 50.10.5, “CTI Debug Log (START LDME)”.
