76.11. How to register Abilis as a client of a SIP server

Enter into the Abilis control-program or open the configuration file with the Console configurator and type the following commands.

a res:ctisip

or

s act res:ctisip

Add the CTISIP resource.

or

If the resource already exists, set it active.

s p ctisip act:yesEnable the CTISIP runtime functionalities.

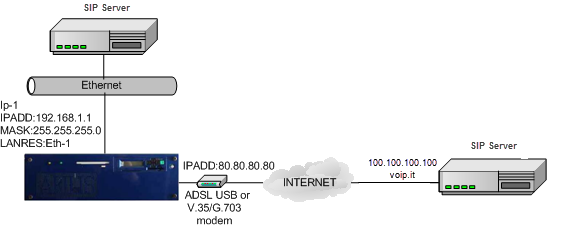

s p ctisip srcadd:192.168.1.1

or

s p ctisip srcadd:out-ip

If the SIP Server is placed in the Abilis LAN.

or

If the SIP Server is placed in Internet.

a user:sip_proxy pwd:swordfish sip:yesAdd the username and password associated to the SIP Server and enable it to SIP protocol.
s user:sip_proxy sip-type:serverConfigure the SIP type to SERVER.
s user:sip_proxy sip-domain:voip.itConfigure the domain of the called SIP UA server in outgoing calls.
s user:sip_proxy sip-host:100.100.100.100Configure the SIP Server IP address.
s user:sip_proxy sip-number:*Configure the SIP telephone number.
s user:sip_proxy sip-maxses-bid:10Configure the maximum number of SIP bidirectional sessions.
s user:sip_proxy sip-rem-reg:yesEnable the registration of Abilis onto the SIP Server.
s user:sip_proxy sip-rem-user:abilis sip-rem-pass:swordfishConfigure the username and password used by Abilis to register itself onto the SIP Server.
save confSave the configuration.

On a working Abilis, a system restart is required to make the CTISIP resource running.

[Tip]Tip

Interesting chapters:

Section 53.1.2, “CTISIP Registration”;

Section 53.1.3, “CTISIP INVITE messages”.
