74.3. VPN status - Map

From the "VPN status" page, click the "Map" tab to access the following page.

[Tip]Tip

The geolocation is configured using the LOCATION parameter in IPRES.

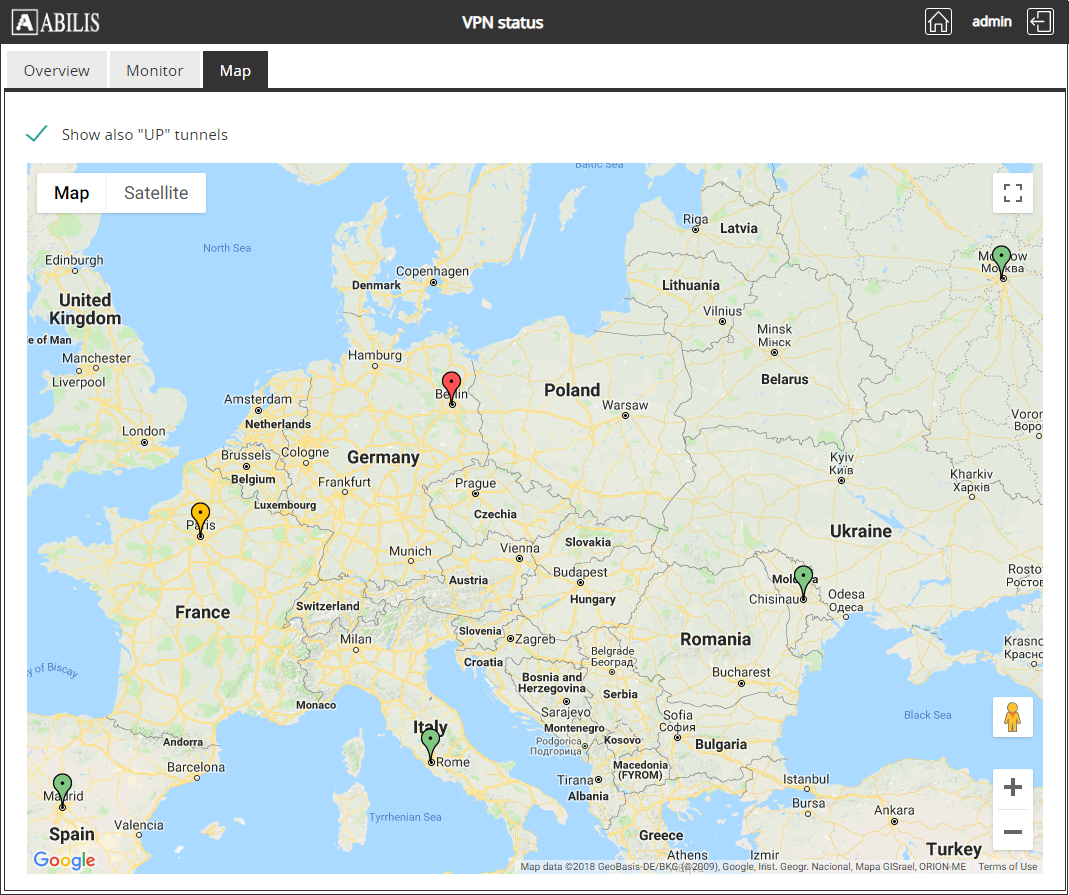

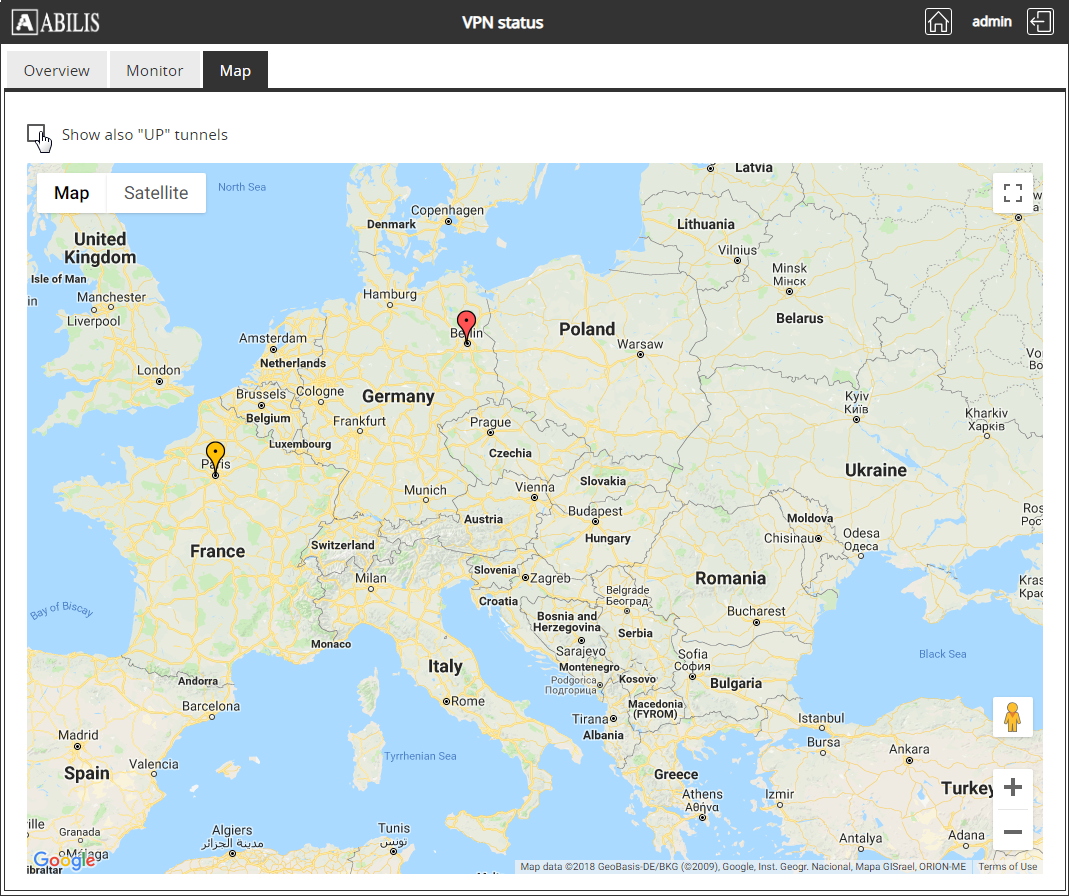

This page displays the VPNs that have problems located on the map, to display all VPN tunnels, check "Show also "UP" tunnels".

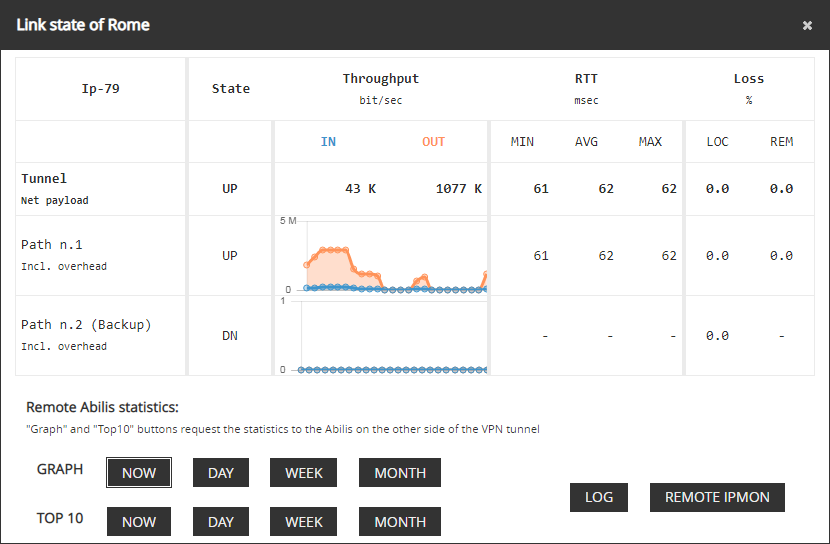

Click on the location to display the detailed information about this VPN.

[Tip]Tip

For more details about this page, see: Section 74.1.1, “Detailed Link state”.
