	Chapter 2. Abilis hardware

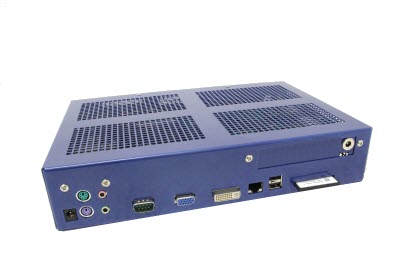

Figure 2.13. Pico Abilis P1E

Pico Abilis is a non-expandable device equipped with:

Pico Abilis is a device available in more versions:

P1E - with 1 Ethernet;
P1E2B1L - with 1 Ethernet, 2 BRI and 1 ELTI;
P1E4B1L - with 1 Ethernet, 4 BRI and 1 ELTI;
P1E2S1L - with 1 Ethernet, 2 FXS and 1 ELTI;
P1E4S1L - with 1 Ethernet, 4 FXS and 1 ELTI;
P1E2B2S1L - with 1 Ethernet, 2 BRI, 2 FXS and 1 ELTI;
Figure 2.14. Pico Abilis P1E2B2S1L
P2E - with 2 Ethernet;
P3E1L - with 1 Ethernet, 2 Gigabit Ethernet and 1 ELTI;
P4E1B - with 4 Ethernet and 1 BRI;
P5E - with 5 Ethernet.
Figure 2.15. Pico Abilis P5E

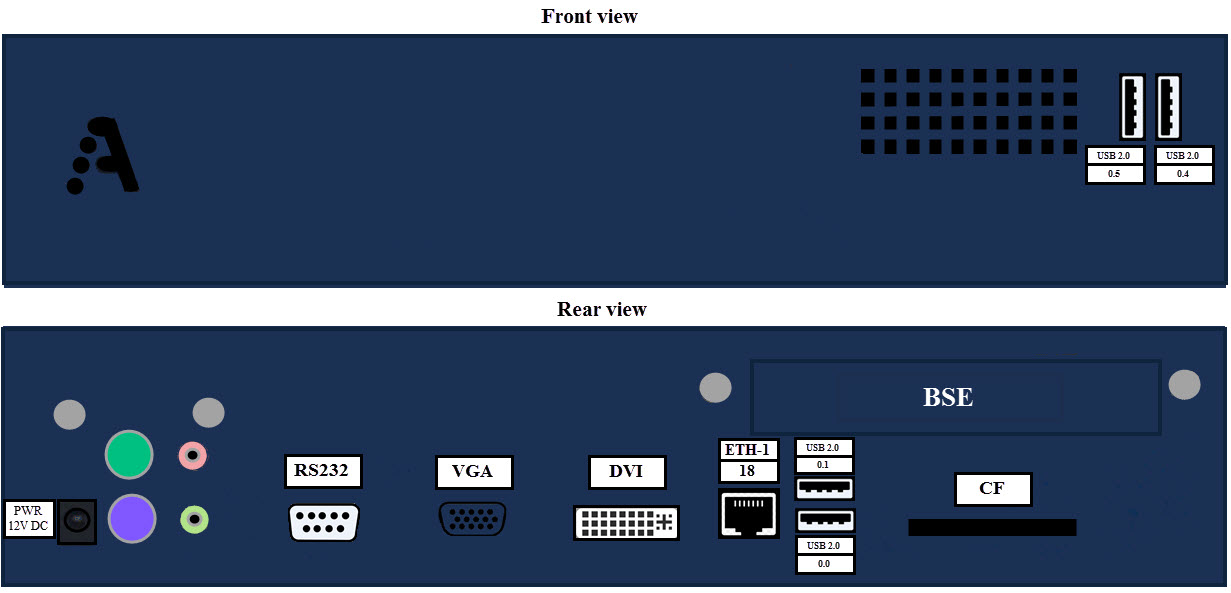

Figure 2.16. The numbering of the physical ports

Dimensions[mm]: 295x200x60;

Weight: 1,8 Kg;

Power supply: 12V DC 2.5A.
