This section is an overview of the most frequently commands used to display the diagnostics and statistics of the CTI resources.
To show the diagnostics of the CTI Ports (ISDN Basic or Primary Rate) the following commands are used:
Shows the diagnostics of all the CTI ports.
Shows the diagnostics of a single CTI port.
To show the statistics of the CTI Ports (ISDN Basic or Primary Rate) the following commands are used:
Shows the statistics of all the CTI ports.
Shows the statistics of a single CTI port.
More information can be viewed using the following commands:
Shows the extended statistics of all the CTI ports.
Shows the extended statistics of a single CTI port.
This command reports the current situation of PRI port:
[16:46:29] ABILIS_CPX:d d ctip:1
CTIP:1 ----------------------------------------------------------------------
USER:# OPSTATE:UP STATE:UP
------------------------------------------------------------------------
CH: STATE: [Q932-STATE:] CG: [SG:] CD: [SD:]
------------------------------------------------------------------------
1 10-CONNECTED-TO 3111111111 111111117
2 10-CONNECTED-FROM 0111111111 0
3 10-CONNECTED-FROM 0111111111 9
4 10-CONNECTED-FROM 0111111111 9
5 10-CONNECTED-FROM 0111111111 1
6 10-CONNECTED-FROM 0111111111 3
7 10-CONNECTED-FROM 0111111111 7
8 10-CONNECTED-TO 3311111111 111111117
11 10-CONNECTED-TO 0311111111 111111117
- Sapi ------- TEI -- STATE ------------ LOC-side -- REM-side-----------
16 (X.25 ) 10 00-INACTIVE - -
0 (Q.931) 0 07-CONNECTED NT TE
------------------------------------------------------------------------
ISDN-STATE:PRI-UP LINE-DOWN:1 SLIPS:629
RxAlarms:NONE TxAlarms:NONE
Data shows that the physical layer is UP
(ISDN-STATE:
PRI-UP
) and the
TEI has been correctly negotiated (TEI-0
,
STATE:07-CONNECTED
). Several calls are present
(CONNECTED-FROM
, CONNECTED-TO
)
at this port and for each one the corresponding PRI channel in use
(CH
:1-2-3
...) is
indicated.
The meaning:
USER
Name of the user assigned to this port. From 1 up to 32 ASCII characters or "#". The user must be present and it must not be already assigned to another port.
OPSTATE
The operative state of the port.
STATE
The overall state of the port.
CH
Channel number.
STATE
Channel state.
CG
Calling address.
SG
Calling sub-address.
CD
Called address.
SD
Called sub-address.
Sapi
Referenced LAPD SAPI.
TEI
LAPD Currently assigned TEI.
STATE
LAPD driver state.
LOC-side
Local side.
REM-side
Remote side.
ISDN-STATE
CTI port state:
PRI-UP
;
PRI-DOWN
.
LINE-DOWN
Number of state transitions from UP to DOWN.
SLIPS
Number of SLIPS detected at level 1.
RxAlarms
Bitmap of current alarms in Rx direction.
TxAlarms
Bitmap of current alarms in Tx direction.
This command can help to understand what is happening, in case of troubles:
[11:19:27] ABILIS_CPX:d s ctip:1
CTIP:1 ---------------------------------------------------------------------- USER:# --- Cleared 154 days 02:22:53 ago, on 15/01/2018 at 08:56:39 ----------- Layer 3 Q.931 -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| FAIL-CALL | 22148| 216|SUCC-CALL | 54128| 52978| TIME-CALL | 5606369| 5946959| ------------------------------------------------------------------------ Layer 2 Sapi 16 (X.25) TEI:10 -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| T200-DN | | 0|T200-UP | | 0| REP | 0| 0|INFO | 0| 0| UI | 0| 0|RR | 0| 0| RNR | 0| 0|REJ | 0| 0| FRMR | 0| 0|SABME | 0| 0| UA | 0| 0|DISC | 0| 0| DM | 0| 0|N200-OVER | | 0| SHORT | 0| |LONG | 0| | UNK-SAPI | 0| |BAD-FRM | 0| | ------------------------------------------------------------------------ Layer 2 Sapi 0 (Q.931) TEI:ALL -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| T200-DN | | 0|T200-UP | | 20| REP | 0| 0|INFO | 971089| 504465| UI | 0| 0|RR | 1683262| 2149889| RNR | 0| 0|REJ | 0| 0| FRMR | 0| 0|SABME | 0| 2| UA | 2| 0|DISC | 0| 0| DM | 0| 0|N200-OVER | | 1| SHORT | 0| |LONG | 0| | UNK-SAPI | 0| |BAD-FRM | 0| | ------------------------------------------------------------------------ Layer 1 B-Channels (HDLC) -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| CHR | 0| 0|FRM | 0| 0| CHR-D | 0| 0|FRM-D | 0| 0| CHR-V | 0| 0|FRM-V | 0| 0| CHR-C | 0| 0|FRM-C | 0| 0| ERRORS | 0| 0| ------------------------------------------------------------------------ Layer 1 D-Channel -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| CHR | 20981718| 16950508|FRM | 2654353| 2654356| CHR-D | 20981718| 16950508|FRM-D | 2654353| 2654356| ERRORS | 1| 0| ------------------------------------------------------------------------ Layer 1 alarms -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| SLIPS | 629| N/A|LINE-DOWN | 1| | CRC4 | 0| 0|LOS | 1| | BAD-CODING | 4| |AIS | 0| 0| LFA | 1| |RAI | 1| 2| LMFA | 2| | ------------------------------------------------------------------------ [11:19:32] ABILIS_CPX:d se ctip:1
CTIP:1 ---------------------------------------------------------------------- USER:# --- Cleared 154 days 02:22:57 ago, on 15/01/2018 at 08:56:39 ----------- Layer 3 Q.931 -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| FAIL-CALL | 22148| 216|SUCC-CALL | 54128| 52978| TIME-CALL | 5606381| 5946963| ------------------------------------------------------------------------ Layer 2 Sapi 16 (X.25) TEI:10 -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| T200-DN | | 0|T200-UP | | 0| REP | 0| 0|INFO | 0| 0| UI | 0| 0|RR | 0| 0| RNR | 0| 0|REJ | 0| 0| FRMR | 0| 0|SABME | 0| 0| UA | 0| 0|DISC | 0| 0| DM | 0| 0|N200-OVER | | 0| SHORT | 0| |LONG | 0| | UNK-SAPI | 0| |BAD-FRM | 0| | ------------------------------------------------------------------------ Layer 2 Sapi 0 (Q.931) TEI:0 -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| T200-DN | | 0|T200-UP | | 20| REP | 0| 0|INFO | 971089| 504465| UI | 0| 0|RR | 1683263| 2149890| RNR | 0| 0|REJ | 0| 0| FRMR | 0| 0|SABME | 0| 2| UA | 2| 0|DISC | 0| 0| DM | 0| 0|N200-OVER | | 1| SHORT | 0| |LONG | 0| | UNK-SAPI | 0| |BAD-FRM | 0| | ------------------------------------------------------------------------ Layer 1 B-Channels (HDLC) -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| CHR | 0| 0|FRM | 0| 0| CHR-D | 0| 0|FRM-D | 0| 0| CHR-V | 0| 0|FRM-V | 0| 0| CHR-C | 0| 0|FRM-C | 0| 0| ERRORS | 0| 0| | | | D-ABORT | | 0|D-LONG | 0| 0| D-TXUND | | 0|D-SHORT | | 0| D-LOST | 0| | | | | V-ABORT | | 0|V-LONG | 0| 0| V-TXUND | | 0|V-SHORT | | 0| V-LOST | 0| | | | | C-ABORT | | 0|C-LONG | 0| 0| C-TXUND | | 0|C-SHORT | | 0| C-LOST | 0| | | | | ABORT | 0| |UNALIGNED | 0| | BAD-FCS | 0| |SHORT | 0| | CHR-OVR | 0| |FRM-OVR | 0| | ------------------------------------------------------------------------ Layer 1 D-Channel -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| CHR | 20981722| 16950512|FRM | 2654354| 2654357| CHR-D | 20981722| 16950512|FRM-D | 2654354| 2654357| ERRORS | 1| 0| | | | D-ABORT | | 0|D-LONG | 0| 0| D-TXUND | | 0|D-SHORT | | 0| D-LOST | 0| | | | | ABORT | 1| |UNALIGNED | 0| | BAD-FCS | 0| |SHORT | 0| | CHR-OVR | 0| |FRM-OVR | 0| | ------------------------------------------------------------------------ Layer 1 alarms -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| SLIPS | 629| N/A|LINE-DOWN | 1| | CRC4 | 0| 0|LOS | 1| | BAD-CODING | 4| |AIS | 0| 0| LFA | 1| |RAI | 1| 2| LMFA | 2| | ------------------------------------------------------------------------
With reference to the shown interval of time («Cleared 154 days 02:22:57 ago») these counters show the number of:
FAIL-CALL | Failed incoming/outgoing voice calls. |
SUCC-CALL | The sum of all calls. |
TIME-CALL | The sum of established incoming/outgoing voice calls duration. |
T200-DN | Number of T200 out when disconnected. |
T200-UP | Number of T200 out when connected. |
REP | Repeated incoming/outgoing frames. |
INFO | Incoming/outgoing info frames. |
UI | Incoming/outgoing unnumbered info frames. |
RR | Incoming/outgoing unnumbered RR frames. |
RNR | Incoming/outgoing unnumbered RNR frames. |
REJ | Incoming/outgoing unnumbered REJ frames. |
FRMR | Incoming/outgoing unnumbered FRMR frames. |
SABME | Incoming/outgoing unnumbered SABME frames. |
UA | Incoming/outgoing unnumbered UA frames. |
DISC | Incoming/outgoing unnumbered DISC frames. |
DM | Incoming/outgoing unnumbered DM frames. |
N200-OVER | Expired retries in connected. |
SHORT | Too short incoming/outgoing frames. |
LONG | Too long incoming/outgoing frames. |
UNK-SAPI | Incoming frames with unknown address field. |
BAD-FRM | Number of incoming frames with unknown control field. |
CHR | Total incoming/outgoing characters from/into line. |
CHR-D/V/C | Total incoming/outgoing DATA/VOICE/LINK-CHECK characters from/into line. |
FRM | Total incoming/outgoing frames from/into line. |
FRM-D/V/C | Total incoming/outgoing DATA/VOICE/LINK-CHECK frames from/into line. |
ERRORS | The sum of all errors. |
D/V/C-ABORT | Incoming/outgoing DATA/VOICE/LINK-CHECK frames aborted. |
D/V/C-TXUND | DATA/VOICE/LINK-CHECK transmission underrun. |
D/V/C-LOST | Lost DATA/VOICE/LINK-CHECK frames: buffer is full. |
D/V/C-LONG | Too long incoming/outgoing DATA/VOICE/LINK-CHECK frames. |
D/V/C-SHORT | Too short incoming/outgoing DATA/VOICE/LINK-CHECK frames. |
ABORT | Incoming/outgoing frames aborted. |
UNALIGNED | Received unaligned frames. |
BAD-FCS | Received frames with BAD FCS. |
SHORT | Received too short frames. |
CHR-OVR | Received characters overruns. |
FRM-OVR | Received frames overruns. |
SLIPS | SLIPS detected at level 1. |
LINE-DOWN | Number of state transitions from UP to DOWN. |
CRC4 | IN: incoming multiframes with a bad CRC4. OUT: outgoing multiframes indicating a "remote CRC4 error". |
LOS | Incoming "Loss of signal". |
BAD-CODING | Coding (hdb3) errors in the received signal. |
AIS | Incoming/outgoing "alarm information signal". |
LFA | Incoming "loss of frame alignment". |
RAI | Incoming/outgoing "remote alarm information". |
LMFA | Incoming "loss of multiframe alignment". |
This command reports the current situation of BRI port:
[15:45:27] ABILIS_CPX:d d ctip:38
CTIP:38 ----------------------------------------------------------------------
Port_to_Telecom
USER:# OPSTATE:UP STATE:UP
------------------------------------------------------------------------
CH: STATE: [Q932-STATE:] CG: [SG:] CD: [SD:]
------------------------------------------------------------------------
*** All channels disconnected ***
- Sapi ------- TEI -- STATE ------------ LOC-side -- REM-side-----------
16 (X.25 ) 10 00-INACTIVE - -
0 (Q.931) 92 07-CONNECTED TE NT
------------------------------------------------------------------------
ISDN-STATE:F7-READY LINE-DOWN:1 SLIPS:N/A
Data shows that the physical layer is UP
(ISDN-STATE:F7-READY
) and the TEI has been
correctly negotiated (TEI-102
,
STATE:07-CONNECTED
). The message “*** All
channels disconnected ***” indicates that no calls are
connected.
The meaning:
USER
Name of the user assigned to this port. From 1 up to 32 ASCII characters or "#". The user must be present and it must not be already assigned to another port.
OPSTATE
The operative state of the port.
STATE
The overall state of the port.
CH
Channel number.
STATE
Channel state.
CG
Calling address.
SG
Calling sub-address.
CD
Called address.
SD
Called sub-address.
Sapi
Referenced LAPD SAPI.
TEI
LAPD Currently assigned TEI.
STATE
LAPD driver state.
LOC-side
Local side.
REM-side
Remote side.
ISDN-STATE
BRI-TE port state:
F3-INACT
- TE inactive, no power
feeding;
F3-INACT2
- TE power feed,
waiting for INFO 0;
F3-INACT3
- pending
deactivation;
F4-DOWN
- pending activation, TE
is waiting for signal;
F5-DOWN
- unsynchronised, signal
received, synchronisation;
F6-DOWN
- synchronised, ready for
receiving;
F7-READY
- activated,
working;
F8-DOWN
- loss of frame
alignment.
BRI-NT port state:
G1-DEACTIVATED
;
G2-PENDING_ACTIVATION
;
G2-LOST_FRAMING
;
G3-READY
;
G3-ACTIVATED_BLOCKED
;
G4-PENDING_DEACTIVATION
;
G4-WAIT_DEACTIVATION
.
LINE-DOWN
Number of state transitions from UP to DOWN.
SLIPS
Number of SLIPS detected at level 1.
This command can help to understand what is happening, in case of troubles:
[15:55:24] ABILIS_CPX:d s ctip:31
CTIP:31 ----------------------------------------------------------------------
to_PBX
USER:#
--- Cleared 0 days 19:57:53 ago, on 16/06/2015 at 12:23:35 -------------
Layer 3 Q.931
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
FAIL-CALL | 0| 0|SUCC-CALL | 0| 0|
TIME-CALL | 0| 0|
------------------------------------------------------------------------
Layer 2 Sapi 16 (X.25) TEI:10
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
T200-DN | | 0|T200-UP | | 0|
REP | 0| 0|INFO | 0| 0|
UI | 0| 0|RR | 0| 0|
RNR | 0| 0|REJ | 0| 0|
FRMR | 0| 0|SABME | 0| 0|
UA | 0| 0|DISC | 0| 0|
DM | 0| 0|N200-OVER | | 0|
SHORT | 0| |LONG | 0| |
UNK-SAPI | 0| |BAD-FRM | 0| |
------------------------------------------------------------------------
Layer 2 Sapi 0 (Q.931) TEI:ALL
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
T200-DN | | 35765|T200-UP | | 0|
REP | 0| 0|INFO | 0| 0|
UI | 0| 0|RR | 0| 0|
RNR | 0| 0|REJ | 0| 0|
FRMR | 0| 0|SABME | 0| 0|
UA | 0| 0|DISC | 0| 0|
DM | 0| 0|N200-OVER | | 0|
SHORT | 0| |LONG | 0| |
UNK-SAPI | 0| |BAD-FRM | 0| |
------------------------------------------------------------------------
Layer 1 B-Channels (HDLC)
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
CHR | 0| 0|FRM | 0| 0|
CHR-D | 0| 0|FRM-D | 0| 0|
CHR-V | 0| 0|FRM-V | 0| 0|
CHR-C | 0| 0|FRM-C | 0| 0|
ERRORS | 0| 0|
------------------------------------------------------------------------
Layer 1 D-Channel
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
CHR | 0| 0|FRM | 0| 0|
CHR-D | 0| 0|FRM-D | 0| 0|
ERRORS | 0| 0|
------------------------------------------------------------------------
Layer 1 alarms
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
SLIPS | N/A| N/A|LINE-DOWN | 0| |
------------------------------------------------------------------------
The data “Cleared DDD:HH:MM:SS ago, at DD/MM/YYYY HH:MM:SS” shows the time interval elapsed from the last reset of statistics (in the format “days:hours:minutes:seconds”) and date/time of its execution (in the format “day:month:year” and “hours:minutes:seconds”).
All the other statistics present give detailed and sensitive information about the connection between Abilis and the other devices (i.e. PABX, the ISDN line…). The statistics regard all the three levels of ISO-OSI model:
The physical layer (Layer 1) which shows the number of physical errors, the characters both on the D-Channel and B-Channels and so on;
Note | |
---|---|
The Layer 1 B-Channels (HDLC) shows the counts of HDLC packets, what in practice is the calls type:DATA used by PV/NPV/AIPT with Abilis back-up. |
The LAPD level (Layer 2) which shows the number of packets that the devices exchange;
Note | |
---|---|
On the Layer 2 Sapi 0 (Q.931), if the number of DISC packets increases in input it means what this line is a MP (MultiPoint). |
The Q.931 level (Layer 3) which the information about the overall duration of the connection or the number of successful incoming calls over all the channels.
Example: extended statistics for the previous ISDN BRI port.
[15:55:40] ABILIS_CPX:d se ctip:31
CTIP:31 ----------------------------------------------------------------------
to_PBX
USER:#
--- Cleared 0 days 19:59:41 ago, on 16/06/2015 at 12:23:36 -------------
Layer 3 Q.931
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
FAIL-CALL | 0| 0|SUCC-CALL | 0| 0|
TIME-CALL | 0| 0|
------------------------------------------------------------------------
Layer 2 Sapi 16 (X.25) TEI:10
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
T200-DN | | 0|T200-UP | | 0|
REP | 0| 0|INFO | 0| 0|
UI | 0| 0|RR | 0| 0|
RNR | 0| 0|REJ | 0| 0|
FRMR | 0| 0|SABME | 0| 0|
UA | 0| 0|DISC | 0| 0|
DM | 0| 0|N200-OVER | | 0|
SHORT | 0| |LONG | 0| |
UNK-SAPI | 0| |BAD-FRM | 0| |
------------------------------------------------------------------------
Layer 2 Sapi 0 (Q.931) TEI:0
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
T200-DN | | 35820|T200-UP | | 0|
REP | 0| 0|INFO | 0| 0|
UI | 0| 0|RR | 0| 0|
RNR | 0| 0|REJ | 0| 0|
FRMR | 0| 0|SABME | 0| 0|
UA | 0| 0|DISC | 0| 0|
DM | 0| 0|N200-OVER | | 0|
SHORT | 0| |LONG | 0| |
UNK-SAPI | 0| |BAD-FRM | 0| |
------------------------------------------------------------------------
Layer 1 B-Channels (HDLC)
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
CHR | 0| 0|FRM | 0| 0|
CHR-D | 0| 0|FRM-D | 0| 0|
CHR-V | 0| 0|FRM-V | 0| 0|
CHR-C | 0| 0|FRM-C | 0| 0|
ERRORS | 0| 0| | | |
D-ABORT | | 0|D-LONG | 0| 0|
D-TXUND | | 0|D-SHORT | | 0|
D-LOST | 0| | | | |
V-ABORT | | 0|V-LONG | 0| 0|
V-TXUND | | 0|V-SHORT | | 0|
V-LOST | 0| | | | |
C-ABORT | | 0|C-LONG | 0| 0|
C-TXUND | | 0|C-SHORT | | 0|
C-LOST | 0| | | | |
ABORT | 0| |UNALIGNED | 0| |
BAD-FCS | 0| |SHORT | 0| |
CHR-OVR | 0| |FRM-OVR | 0| |
------------------------------------------------------------------------
Layer 1 D-Channel
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
CHR | 0| 0|FRM | 0| 0|
CHR-D | 0| 0|FRM-D | 0| 0|
ERRORS | 0| 0| | | |
D-ABORT | | 0|D-LONG | 0| 0|
D-TXUND | | 0|D-SHORT | | 0|
D-LOST | 0| | | | |
ABORT | 0| |UNALIGNED | 0| |
BAD-FCS | 0| |SHORT | 0| |
CHR-OVR | 0| |FRM-OVR | 0| |
------------------------------------------------------------------------
Layer 1 alarms
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
SLIPS | N/A| N/A|LINE-DOWN | 0| |
------------------------------------------------------------------------
The information displayed are the same as previously, but more
detailed and splitted (i.e. The generic “ERRORS” is
subdivided in D-ABORT
,
D-TXUND
, ABORT
,
BAD-FCS
…).
With reference to the shown interval of time («Cleared 0 days 19:59:41 ago») these counters show the number of:
FAIL-CALL | Failed incoming/outgoing voice calls. |
TIME-CALL | The sum of established incoming/outgoing voice calls duration. |
SUCC-CALL | The sum of all calls. |
T200-DN | Number of T200 out when disconnected. |
T200-UP | Number of T200 out when connected. |
REP | Repeated incoming/outgoing frames. |
INFO | Incoming/outgoing info frames. |
UI | Incoming/outgoing unnumbered info frames. |
RR | Incoming/outgoing unnumbered RR frames. |
RNR | Incoming/outgoing unnumbered RNR frames. |
REJ | Incoming/outgoing unnumbered REJ frames. |
FRMR | Incoming/outgoing unnumbered FRMR frames. |
SABME | Incoming/outgoing unnumbered SABME frames. |
UA | Incoming/outgoing unnumbered UA frames. |
DISC | Incoming/outgoing unnumbered DISC frames. |
DM | Incoming/outgoing unnumbered DM frames. |
N200-OVER | Expired retries in connected. |
SHORT | Too short incoming/outgoing frames. |
LONG | Too long incoming/outgoing frames. |
UNK-SAPI | Incoming frames with unknown address field. |
BAD-FRM | Number of incoming frames with unknown control field. |
CHR | Total incoming/outgoing characters from/into line. |
CHR-D/V/C | Total incoming/outgoing DATA/VOICE/LINK-CHECK characters from/into line. |
FRM | Total incoming/outgoing frames from/into line. |
FRM-D/V/C | Total incoming/outgoing DATA/VOICE/LINK-CHECK frames from/into line. |
ERRORS | The sum of all errors. |
D/V/C-ABORT | Incoming/outgoing DATA/VOICE/LINK-CHECK frames aborted. |
D/V/C-TXUND | DATA/VOICE/LINK-CHECK transmission underrun. |
D/V/C-LOST | Lost DATA/VOICE/LINK-CHECK frames: buffer is full. |
D/V/C-LONG | Too long incoming/outgoing DATA/VOICE/LINK-CHECK frames. |
D/V/C-SHORT | Too short incoming/outgoing DATA/VOICE/LINK-CHECK frames. |
ABORT | Incoming/outgoing frames aborted. |
UNALIGNED | Received unaligned frames. |
BAD-FCS | Received frames with BAD FCS. |
SHORT | Received too short frames. |
CHR-OVR | Received characters overruns. |
FRM-OVR | Received frames overruns. |
SLIPS | SLIPS detected at level 1. |
LINE-DOWN | Number of state transitions from UP to DOWN. |
This command reports the current situation of the POTS port:
[14:58:51] ABILIS_CPX:d d ctip:101
CTIP:101 ---------------------------------------------------------------------- phone_1 USER:11 OPSTATE:UP STATE:UP ------------------------------------------------------------------------ CH: STATE: [Q932-STATE:] CG: [SG:] CD: [SD:] ------------------------------------------------------------------------ 1 10-CONNECTED-FROM 767 777 ------------------------------------------------------------------------ POTS-STATE:OFF-HOOK TONE:NONE COUNTRY:IT TRACE:777 [14:58:59] ABILIS_CPX:d de ctip:101
CTIP:101 ---------------------------------------------------------------------- phone_1 USER:11 OPSTATE:UP STATE:UP ------------------------------------------------------------------------ CH: STATE: [Q932-STATE:] CG: [SG:] CD: [SD:] ------------------------------------------------------------------------ 1 10-CONNECTED-FROM 767 777 ------------------------------------------------------------------------ POTS-STATE:OFF-HOOK TONE:NONE COUNTRY:IT TRACE:777 SENSING:YES I-LOOP:28 mA R-LOOP:301 Ohm VS:-22.186 V VA(Tip):-4.109 V VB(Ring):-12.866 V VAB:+8.738 V IG-COUNTRY:8 IG-CURRENT:8 OG-COUNTRY:-9 OG-CURRENT:-9
The meaning:
USER
Name of the user assigned to this port. From 1 up to 32 ASCII characters or "#". The user must be present and it must not be already assigned to another port.
OPSTATE
The operative state of the port.
STATE
The overall state of the port.
POTS-STATE
The overall state of the POTS connection:
ON-HOOK
- The port HOOK is
ON.
RINGING
- The phone is RINGING.
State is RINGING
during both actual
ring and pause. The phone is still
ON-HOOK
in this state.
OFF-HOOK
- The port HOOK is
OFF.
DOWN
- The port is
administratively deactivated by
OPSTATE
:DOWN
.
STAND-BY
- The port is in
stand-by mode, which is a mode with limited power
consumption and an automatic recovery to normal operation
when telephone goes off-hook or an incoming call has to be
delivered. This functionality is currently not supported,
but it may be supported in the future.
FAILED
- The port is in FAILED
state, because of detected errors during the
initialisation or running.
HOTEL-ALARM
- Hotel ALARM is
pressed.
TONE
The type of the tone currently generated by the tone generator:
NONE
- The tone generator doesn't
generate tone.
DIALLING
- The DIALLING tone is
generated by the tone generator.
RINGING
- The RINGING tone is
generated by the tone generator.
BUSY
- The BUSY tone is generated
by the tone generator.
DISCONNECTING
- The DISCONNECTING
tone is generated by the tone generator.
HOLD
- The HOLD tone is generated
by the tone generator.
MENU
- The MENU tone is generated
by the tone generator.
COUNTRY
Currently used country register set - from WinSLAC.
TRACE
The last 40 DTMF codes and FLASH events detected by the port during the last call.
SENSING
State of the sensing feature. If sensing is disabled, the subsequent diagnostics (measured V, A, Ohms) are invalid, and CP has to display "N/A" in their fields.
I-LOOP
Measures the loop current, in mA. Legerity names it
"metallic current" because this measure takes care also of the
leakage currents toward ground of either tip or ring or both,
by removing it. The result is the real current which flows
between telephone (metallic) wires at the telephone connector.
Leakage phenomena are usually not present in short lines, e.g.
When pots is used as a local PABX with few meters telephone
wires, but are normally present on real telco lines, where
kilometres of wire is used, where insulation on kilometres
long wire is not negligible and degrades with the age of the
cables. Remember that VoSLIC is a device suitable for long
haul telco analogue lines. Typical values: in
ON-HOOK
state --> 1,1 mA, in
OFF-HOOK
state --> 28,2 mA.
R-LOOP
The resistance of the analogue loop connected to the
VoSLIC analogue interface. Typical values: in
ON-HOOK
state --> 7,9 kOhms, in
OFF-HOOK
state --> 0,3 kOhms.
VS
Power supply voltage as offered by switching power
supply. This voltage changes between
ON-HOOK
, RINGING
and
OFF-HOOK
states. Typical values: in
ON-HOOK
state --> -63,5 V, in
OFF-HOOK
state --> -25,3 V.
VA(Tip)
The voltage of the A (tip) wire of the VoSLIC analogue
interface, measured respect to ground. Typical values: in
ON-HOOK
state --> -4 V, in
OFF-HOOK
state --> -3…6 V
VB(Ring)
The voltage of the B (ring) wire of the VoSLIC analogue
interface, measured respect to ground. Typical values: in
ON-HOOK
state --> -53 V, in
OFF-HOOK
state --> -13…-14 V
VAB
This is voltage between two wires (A(tip) and B(ring))
of the VoSLIC analogue interface. Typical values: in
ON-HOOK
state --> 49,4 V, in
OFF-HOOK
state --> 8,8 V
IG-COUNTRY
Total Input gain ( voslic/voslac "X" path) read from configured country file. It includes analogue gain.
IG-CURRENT
Total Input gain (voslic/voslac "X" path) currently in use. It includes analogue gain.
OG-COUNTRY
Total Output gain (voslic/voslac "R" path) read from configured country file. It includes analogue gain.
OG-CURRENT
Total Output gain (voslic/voslac "R" path) currently in use. It includes analogue gain.
This command can help to understand what is happening, in case of troubles:
[14:01:32] ABILIS_CPX:d s ctip:101
CTIP:101 ---------------------------------------------------------------------- phone_1 USER:11 --- Cleared 12 days 01:20:43 ago, on 06/06/2018 at 12:40:55 ------------ Layer 3 Q.931 -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| FAIL-CALL | 46| 30|SUCC-CALL | 54| 52| TIME-CALL | 9229| 16193| ------------------------------------------------------------------------ Layer 1 POTS -----------|-----------|-----------|-----------|-----------|-----------| ON-HOOK | 151|FLASH | 7|GND-KEY-ON | 0| OFF-HOOK | 151|FLASH-SHORT| 0|GND-KEY-OFF| 0| CLIP | 83|FAX-MOD | 0|HOTEL-ALM | 0| DTMF | 302|TESTS | 0|ERRORS | 0| ------------------------------------------------------------------------ [14:01:38] ABILIS_CPX:d se ctip:101
CTIP:101 ---------------------------------------------------------------------- phone_1 USER:11 --- Cleared 12 days 01:20:46 ago, on 06/06/2018 at 12:40:56 ------------ Layer 3 Q.931 -----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---| FAIL-CALL | 46| 30|SUCC-CALL | 54| 52| TIME-CALL | 9229| 16193| ------------------------------------------------------------------------ Layer 1 POTS -----------|-----------|-----------|-----------|-----------|-----------| ON-HOOK | 151|FLASH | 7|GND-KEY-ON | 0| OFF-HOOK | 151|FLASH-SHORT| 0|GND-KEY-OFF| 0| CLIP | 83|FAX-MOD | 0|HOTEL-ALM | 0| DTMF | 302|TESTS | 0|ERRORS | 0| DTMF-ERR | 0|TEMP-OVL | 0|VS-FAIL | 0| DTMF-OVR | 0|CLK-FAIL | 0|DC-FAULT | 0| AC-FAULT | 0| ------------------------------------------------------------------------
With reference to the shown interval of time («Cleared 12 days 01:20:43 ago») these counters show the number of:
FAIL-CALL | Failed incoming/outgoing voice calls. |
TIME-CALL | The sum of established incoming/outgoing voice calls duration. |
SUCC-CALL | The sum of all calls. |
ON-HOOK | ON-HOOK events detected by the port event detector. |
OFF-HOOK | OFF-HOOK events detected by the port event detector. |
FLASH | FLASH events detected by the port event detector. |
FLASH-SHORT | Too short FLASH events detected by the event detector. |
GND-KEY-ON | Detected ground key ON events, based on GNDKEY interrupt. |
GND-KEY-OFF | Detected ground key OFF events, based on GNDKEY interrupt. |
CLIP | CLIP sequences generated by the port. |
FAX-MOD | Detected modem or fax tones (interrupt). |
HOTEL-ALM | Detected hotel alarms. |
DTMF | DTMF numbers delivered into the upper layer. |
DTMF-ERR | Incorrect DTMF codes read from VoSLAC chip. |
DTMF-OVR | DTMF fifo overflows. |
TESTS | Executed tests (special test available on VoSLAC/VoSLIC chips) (interrupt).e. |
TEMP-OVL | Detected thermal overload events (interrupt). |
CLK-FAIL | Detected clock failures. |
ERRORS | Cumulative counter of all errors. |
VS-FAIL | Failures detected in the power supply of the analogue section (VS). |
DC-FAULT | Detected DC faults (interrupt). |
AC-FAULT | Detected AC faults (interrupt). |
This command reports the current situation of the device:
[09:21:45] ABILIS_CPX:d d ctip:502
CTIP:502 ----------------------------------------------------------------------
SIM_1)
USER:# OPSTATE:UP STATE:UP
------------------------------------------------------------------------
CH: STATE: [Q932-STATE:] CG: [SG:] CD: [SD:]
------------------------------------------------------------------------
*** All channels disconnected ***
------------------------------------------------------------------------
VOICE-STATE:READY PDN-STATE:READY SMS-STATE:READY
------------------------------------------------------------------------
NET:WIND NET-MODE:GSM ROAMING:NO
SIGNAL:22 SIGNAL-dbm:-69 RXQUAL:0
IMEI:357396012653490 IMSI:222881451579032 SIM:8939883345002210328
SMSC:+393205858500 CODEC-ISO-BW:1304000 SIM-SEL:FIX-SIM-A
CELL-MODEL:SIM5210 CELL-VER:V1.92 CELL-FEAT:VOICE,DATA,SMS
CELL:CONNECTED CELL-STATE:READY CELL-ERR:NONE
CODEC:CONNECTED CODEC-STATE:READY CODEC-ERR:NONE
CONTROL:CONNECTED CONTROL-STATE:READY CONTROL-ERR:NONE
The meaning:
USER
Name of the user assigned to this port. From 1 up to 32 ASCII characters or "#". The user must be present and it must not be already assigned to another port.
OPSTATE
The overall state of the port.
VOICE-STATE
The overall state of the GSM VOICE connection:
DOWN
- Not ready to place or
receive VOICE calls, either because of missing connection
to the network or for some administratively or
configuration reasons.
READY
- Ready to place and
receive VOICE calls.
IN-USE
- A VOICE connection is
ongoing or active.
PDN-STATE
The overall state of the PDN (Packet Data Network) connection:
DOWN
- Not ready to attach to
PDN, either because of missing connection to the network
or for some administratively or configuration
reasons.
READY
- Ready to attach to
PDN.
IN-USE
- A PDN connection is
ongoing or active.
BLOCKED
- When the USB MODEM
interface is blocked (The state should not survive too
long, because safety timer restarts whole USB device after
enter this state and timeout).
SMS-STATE
The overall state of the SMS channel:
DOWN
- Ready to send/receive
SMSs.
READY
- Ready to send/receive
SMSs.
NET
The currently used GSM network name.
ROAMING
Shows if the currently used UMTS/GSM network is ROAMING type:
N/A
- The ROAMING diagnostic
isn't valid (when NO SIM card inserted, when no network
registered etc).
NO
- The used network isn't
ROAMING type.
YES
- The used network is ROAMING
type.
NET-MODE
Shows if the currently used network is GSM, UMTS or LTE.
SIGNAL
Signal quality (0 = -113 dBm or less, 1..30 = -111.. -53 dBm, 31 = -51 dBm, or greater 99 = not known or not detectable, 100 = N/A value when the device isn't connected)
RXQUAL
The value of BER (bit error rate) of the existing call.
IMEI
International Mobile Equipment Identity number.
IMSI
International Mobile Subscriber Identity number.
SIM
SIM card identification number.
SMSC
SMS Center number.
CODEC-ISO-BW
Indicates the bandwidth of the AUDIO-CODEC ISO interface.
CELL-MODEL
The CELL device model currently used by the port:
N/A
- No device connected.
SIM5210
- SimCom 5210 module
connected (UMTSBOX2 2011).
SIM5218
- SimCom 5218 module
connected (UMTSBOX2 2012).
UD7200
- UMTSKEY module
connected.
SIM7230E
- SimCom 7230E module
connected.
SIM7250E
- SimCom 7250E module
connected.
CELL
Shows if the hot-pluggable device is connected or not:
DISCONNECTED
- Not connected to
CPX.
CONNECTED
- Connected to
CPX.
UNAVAIL
- No Gsm module is
available for this GSM port (USB subsystem decides about
the availability).
CELL-STATE
Shows the state of the USB interface of the GSM USB module:
INIT
- Wait for
initialisation.
READY
- Completely initialised
and ready to use.
FAILED
- Failed because of
serious troubles detected on the USB bus.
CELL-ERR
Shows the reason of the not READY GSM module:
NONE
- No error detected, the GSM
module works fine.
N/A
- Not applicable error, the
error is given by values in GsmUsb and GsmUsbState values
whose are three states and cannot be expressed by this two
state diagnostic. Usually when GSM device is disconnected
or its handle isn't available.
USB-NO-RESP
- USB RTU_NO_RESPONSE
error was detected.
USB-OVERCUR
- USB RTU_OVERCURRENT
error was detected.
USB-NO-BW
- USB RTU_BANDWIDTH
error was detected.
NO-COM
- AT interface doesn't
work, detected by the At interface watchdog.
NO-SIM
- No SIM card is inserted
into the module.
SIM-LOCK
- The CME-ERROR: 252
(SIM BLOCKED) was detected during the checking of the PIN
protection state.
SIM-ERR
- The CME-ERROR:
different from 252 was detected during the checking of the
PIN protection state.
PIN
- Waits for PIN enter, the
left number of attempts 2 or 1. When the 3 attempts are
available the PIN from port configuration is automatically
entered.
PUK
- Waits for PUK enter.
PIN2
- Waits for PIN2
enter.
PUK2
- Waits for PUK2
enter.
NO-SIG
- No GSM signal is
available. The AT+CSQ command returns the value 99.
NO-NET
- The GSM network isn't
available.
NO-REG
- The GSM module isn't
registered into the network.
UNKNOWN
- Unknown or not handled
error.
CODEC
Shows if the hot-pluggable device is connected or not:
DISCONNECTED
- The AUDIO module
is not connected to CPX.
CONNECTED
- The AUDIO module is
connected to CPX.
UNAVAIL
- No AUDIO module is
available for this GSM port (USB subsystem decides about
the availability).
INACTIVE
- The AUDIO device isn't
available because of inactivating state set by S
INACT command.
CODEC-STATE
Shows the state of the USB interface of the CODEC module:
INIT
- Wait for
initialisation.
READY
- Completely initialised
and ready to use.
FAILED
- Failed because of
serious troubles detected on the USB bus.
CODEC-ERR
Shows the reason of the not READY GSM codec:
NONE
- No error detected, the GSM
codec works fine.
USB-OVERCUR
- USB RTU_OVERCURRENT
error was detected.
USB-NO-BW
- USB RTU_BANDWIDTH
error was detected.
N/A
- Not applicable error, the
error is given by values in GsmUsb and GsmUsbState values
whose are three states and cannot be expressed by this two
state diagnostic.
CONTROL
Shows if the hot-pluggable device is connected or not.
CONTROL-STATE
Shows the state of the USB interface of the CONTROL (PIC) module.
CONTROL-ERR
Shows the reason of the not READY GSM CONTROL (PIC).
Diagnostics of a CTI GSM port when a call is running:
[09:23:17] ABILIS_CPX:d d ctip:502
CTIP:502 ----------------------------------------------------------------------
SIM_xxxxxxxxxx
USER:# OPSTATE:UP STATE:UP
------------------------------------------------------------------------
CH: STATE: [Q932-STATE:] CG: [SG:] CD: [SD:]
------------------------------------------------------------------------
1 07-LOC-ALERT 779 xxxxxxxxxx
------------------------------------------------------------------------
VOICE-STATE:IN-USE PDN-STATE:READY SMS-STATE:READY
------------------------------------------------------------------------
NET:WIND NET-MODE:GSM ROAMING:NO
SIGNAL:22 SIGNAL-dbm:-69 RXQUAL:0
IMEI:357396012653490 IMSI:222881451579032 SIM:8939883345002210328
SMSC:+393205858500 CODEC-ISO-BW:1304000 SIM-SEL:FIX-SIM-A
CELL-MODEL:SIM5210 CELL-VER:V1.92 CELL-FEAT:VOICE,DATA,SMS
CELL:CONNECTED CELL-STATE:READY CELL-ERR:NONE
CODEC:CONNECTED CODEC-STATE:READY CODEC-ERR:NONE
CONTROL:CONNECTED CONTROL-STATE:READY CONTROL-ERR:NONE
Tip | |
---|---|
CODEC-ISO-BW shows the USB Isochronous bandwidth reserved on the USB controller to serve the CTIP. The audio codec always reserves the bandwidth of TWO CTIP even if one is disabled. |
This is what appears in the CTIR Connection (from PBX port group to GSM gateway):
[12:06:44] ABILIS_CPX:d ctic
SES ID Type Input Output PR State Cgi (Calling In) Cdo (Called Out)
---- ---- ---- -------- -------- --- ------ ------------------- --------------------
2 2 TR G1 502 3 ACTIVE 711 3482233445
Scanning available networks.
Example of NETSCAN:
[10:54:26] ABILIS_CPX:d d ctip:501 netscan
THE COMMAND WILL SEARCH ALL AVAILABLE NETWORKs. THIS OPERATION MAY TAKE FEW MINUTES. PROCEED ANYWAY (N/Y)?y
CTIP:501 ---------------------------------------------------------------------- SIM_xxxxxxxxxx USER:# OPSTATE:UP STATE:UP ------------------------------------------------------------------------ CH: STATE: [Q932-STATE:] CG: [SG:] CD: [SD:] ------------------------------------------------------------------------ *** All channels disconnected *** ------------------------------------------------------------------------ VOICE-STATE:READY PDN-STATE:READY SMS-STATE:READY ------------------------------------------------------------------------ NET:WIND NET-MODE:GSM ROAMING:NO SIGNAL:22 SIGNAL-dbm:-69 RXQUAL:0 IMEI:357396012653300 IMSI:222881672196219 SIM:8939880367011211389 SMSC:+393205858500 CODEC-ISO-BW:1304000 SIM-SEL:FIX-SIM-A CELL-MODEL:SIM5210 CELL-VER:V1.92 CELL-FEAT:VOICE,DATA,SMS CELL:CONNECTED CELL-STATE:READY CELL-ERR:NONE CODEC:CONNECTED CODEC-STATE:READY CODEC-ERR:NONE CONTROL:CONNECTED CONTROL-STATE:READY CONTROL-ERR:NONE - Available Networks --------------------------------------------------- Status: Name: Code: Mode: CURRENT WIND 22288 GSM AVAILABLE WIND 22288 UMTS AVAILABLE 3ITA 22299 UMTS FORBIDDEN OMNITEL 22210 GSM FORBIDDEN OMNITEL 22210 UMTS FORBIDDEN TIM 22201 UMTS FORBIDDEN TIM 22201 GSM
Note | |
---|---|
If NETSCAN cannot be executed for any reason, e.g. because there is an active call or the module is disconnected, the message *** CANNOT EXECUTE NETSCAN *** is printed. |
This command can help to understand what is happening, in case of troubles:
[16:14:19] ABILIS_CPX:d s ctip:501
CTIP:501 ----------------------------------------------------------------------
SIM-1
USER:#
--- Cleared 0 days 19:47:27 ago, on 14/05/2015 at 19:23:22 -------------
Layer 3 Q.931
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
FAIL-CALL | 0| 0|SUCC-CALL | 2| 0|
TIME-CALL | 48| 0|
------------------------------------------------------------------------
Layer 2 PDN
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
PDN-CALL | | 0|PDN-CHAR | 0| 0|
PDN-TIME | | 0|PDN-FRM | 0| 0|
PDN-TIME-15| | 0|PDN-LOST | 0| 0|
| | |PDN-LONG | 0| 0|
------------------------------------------------------------------------
Layer 2 SMS
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
SMS | 0| 0|SMS-FAIL | 0| 0|
------------------------------------------------------------------------
Layer 1 CELL
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
CELL-DISC | 0| | | | |
CELL-CONN | 1| | | | |
CELL-MRST | 0| | | | |
CELL-ARST | 0| | | | |
CELL-HWRST | 0| | | | |
CELL-PCK | 68796| 34389| | | |
CELL-OVR | 0| | | | |
------------------------------------------------------------------------
CODEC-DISC | 0| |CONTR-DISC | 0| |
CODEC-CONN | 1| |CONTR-CONN | 1| |
CODEC-MRST | 0| |CONTR-MRST | 0| |
CODEC-ARST | 0| |CONTR-ARST | 0| |
CODEC-HWRST| 0| | | | |
CODEC-PCK | 71240766| 71241074|CONTR-PCK | 71254| 71255|
CODEC-OVR | 0| |CONTR-PCKH | 0| 0|
CODEC-UND | | 0| | | |
------------------------------------------------------------------------
With reference to the shown interval of time («Cleared 0 days 19:47:27 ago») these counters show the number of:
FAIL-CALL | Failed incoming/outgoing voice calls. |
TIME-CALL | The sum of established incoming/outgoing voice calls duration. |
SUCC-CALL | The sum of all Voice calls. |
PDN-CALL | Established PDN calls. |
PDN-TIME | The sum of all PDN calls duration. |
PDN-TIME-15 | PDN calls 15 minutes interval counter. |
PDN-CHAR | Chars (bytes) received/sent in the incoming/outgoing ASYND HDLC frames. |
PDN-FRM | Incoming/outgoing ASYNC HDLC frames into/from CELL port. |
PDN-LOST | IN - HDLC frames received but discarded. OUT - HDLC frames that was not sent within a timeout (1.5 secs), and discarded. |
PDN-LONG | IN - HDLC frames received discarded because too long. OUT - HDLC frames not sent because too long. |
SMS | Incoming/outgoing SMS messages. |
SMS-FAIL | Discarded incoming/outgoing SMS messages. |
CELL-DISC | Disconnection of the CELL device. |
CELL-CONN | Connection of the CELL device. |
CELL-MRST | Manual restarts performed on the CELL module. |
CELL-ARST | CELL module auto restarts because of serious troubles on USB interface. |
CELL-HWRST | CELL module restarts made by PIC command. |
CELL-PCK | USB data blocks received/transmitted from/to the CELL module. |
CELL-OVR | Detected overruns on Serial to USB interface. |
CODEC-DISC | Audio codec disconnections from USB. |
CODEC-CONN | Audio codec connections into USB. |
CODEC-MRST | Manual restarts performed on the CELL Audio module. |
CODEC-ARST | Auto-restarts performed on the CELL Audio module. |
CODEC-HWRST | CODEC device restarts made via the PIC device. |
CODEC-OVR | Detected overruns errors on USB Audio-Codec. |
CODEC-UND | Detected USB underrun errors on USB Audio-Codec. |
CONTR-DISC | PIC chip disconnections from USB. |
CONTR-CONN | PIC chip connections into USB. |
CONTR-MRST | Manual restarts performed on the PIC module. |
CONTR-ARST | Auto-restarts performed on the PIC module. |
CONTR-PCK | USB packets sent/received into/from the PIC of the CELL device. |
CONTR-PCKH | High priority USB packets sent/received into/from the PIC of the CELL device. |
Use the following commands to show diagnostics and statistics of CTI Clusters:
Shows the state of the clusters.
Shows statistics about clusters such as the number of total/success/failed calls, the total duration of the calls and the statistics of the DSP.
[16:16:35] ABILIS_CPX:d d cticl
---------+---------+--------------+--------------------------------------------
CLUS: |ID: |STATE: |USER:
---------+---------+--------------+--------------------------------------------
CPX_1 1 [01] ALL-UP #
CPX_2 2 [02] ALL-UP #
The meaning:
CLUS
Cluster name.
ID
Cluster identifier.
STATE
The overall state of the cluster:
ALL-DOWN
;
ALL-UP
;
SOME-DOWN
.
USER
Name of the user assigned to this cluster.
[18:36:43] ABILIS_CPX:d s cticl
CLUS:CPX_1 ID:1 [01] USER:#
--- Cleared 3 days 00:51:48 ago, on 10/08/2018 at 17:45:00 -------------
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
CALL | 0| 0|SUCC-CALL | 0| 0|
FAIL-CALL | 0| 0|TIME-CALL | 0| 0|
------------------------------------------------------------------------
--- Local and remote DSP statistics, updated at call end ---------------
-----------|---LOCAL---|--REMOTE---|-----------|---LOCAL---|--REMOTE---|
VOICE-UND | 0| 0|VOICE-OVR | 0| 0|
FM-UND | 0| 0|FM-OVR | 0| 0|
------------------------------------------------------------------------
CLUS:CPX_2 ID:2 [02] USER:network
--- Cleared 3 days 00:51:48 ago, on 10/08/2018 at 17:45:00 -------------
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
CALL | 6| 0|SUCC-CALL | 0| 0|
FAIL-CALL | 6| 0|TIME-CALL | 0| 0|
------------------------------------------------------------------------
--- Local and remote DSP statistics, updated at call end ---------------
-----------|---LOCAL---|--REMOTE---|-----------|---LOCAL---|--REMOTE---|
VOICE-UND | 0| 0|VOICE-OVR | 0| 0|
FM-UND | 0| 0|FM-OVR | 0| 0|
------------------------------------------------------------------------|
------------------------------------------------------------------------
With reference to the shown interval of time («Cleared 3 days 00:51:48 ago») these counters show the number of:
CALL | Total number of incoming/outgoing calls. |
SUCC-CALL | Successful incoming/outgoing calls |
FAIL-CALL | Unsuccessful incoming/outgoing calls. |
TIME-CALL | Connection time for incoming/outgoing calls |
VOICE-UND | Incoming/outgoing voice underruns. |
VOICE-OVR | Incoming/outgoing voice overruns. |
FM-UND | Incoming/outgoing fax modem underruns. |
FM-OVR | Incoming/outgoing fax modem overruns. |
Use the following commands to show the diagnostics and statistics of CTI Links:
d d ctil
/ d de
ctilShows the state of the links.
Shows statistics about links such as the number of total/successful/failed calls and the total duration of all calls.
[16:16:35] ABILIS_CPX:d d ctil
ID: CLUS: RES: LINK-STATE: CLUS-LINK-STATE: MAXBW: CURBW: CON:
-------------------------------------------------------------------------------
1 CPX_1 NPv L1-CONNECTED L2-CONNECTED NOMAX 66800 1
2 CPX_2 NPv L1-CONNECTED L1-CONNECTED NOMAX 0 0
3 NONE NONE L1-DISCONNECTED L1-DISCONNECTED - - -
4 NONE NONE L1-DISCONNECTED L1-DISCONNECTED - - -
The meaning:
ID
Cluster identifier.
CLUS
Cluster name.
RES
Lower resource: AIPT/PV/NPV.
LINK-STATE/CLUS-LINK-STATE
The overall state of the CTIL/CLUSTER:
L1-DISCONNECTED
;
L1-CONNECTING
;
L1-CONNECTED
;
L2-CONNECTING
;
L2-CONNECTED
;
L2-DISCONNECTING
;
L1-DISCONNECTING
;
REFRESHING
.
MAXBW
Maximal allowed (configured) bandwidth.
CURBW
Current (actual) used bandwidth.
CON
Current (actual) number of connection on link.
[16:16:35] ABILIS_CPX:d s ctil
ID:1 CLUS:CPX_1
--- Cleared 3 days 22:50:18 ago, on 10/08/2018 at 17:45:02 ------------------
----------------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
CALL | 0| 0|SUCC-CALL | 0| 0|
FAIL-CALL | 0| 0|TIME-CALL | 0| 0|
MAXBW-OVR | 0| 0|VFM-OVR | | 0|
MAXCON-OVR | 0| 0|Q931c-OVR | | 0|
GROUP-MAXBW-OVR | 0| 0|BAD-PCK | 0|
GROUP-MAXCON-OVR| 0| 0|
-----------------------------------------------------------------------------
ID:2 CLUS:CPX_2
--- Cleared 3 days 22:50:18 ago, on 10/08/2018 at 17:45:02 ------------------
----------------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
CALL | 11| 0|SUCC-CALL | 0| 0|
FAIL-CALL | 11| 0|TIME-CALL | 0| 0|
MAXBW-OVR | 0| 0|VFM-OVR | | 0|
MAXCON-OVR | 0| 0|Q931c-OVR | | 0|
GROUP-MAXBW-OVR | 0| 0|BAD-PCK | 0|
GROUP-MAXCON-OVR| 0| 0|
-----------------------------------------------------------------------------
ID:3 CLUS:NONE
--- Cleared 3 days 22:50:18 ago, on 10/08/2018 at 17:45:02 ------------------
----------------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
CALL | 0| 0|SUCC-CALL | 0| 0|
FAIL-CALL | 0| 0|TIME-CALL | 0| 0|
MAXBW-OVR | 0| 0|VFM-OVR | | 0|
MAXCON-OVR | 0| 0|Q931c-OVR | | 0|
GROUP-MAXBW-OVR | 0| 0|BAD-PCK | 0|
GROUP-MAXCON-OVR| 0| 0|
-----------------------------------------------------------------------------
ID:4 CLUS:NONE
--- Cleared 3 days 22:50:18 ago, on 10/08/2018 at 17:45:02 ------------------
----------------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
CALL | 0| 0|SUCC-CALL | 0| 0|
FAIL-CALL | 0| 0|TIME-CALL | 0| 0|
MAXBW-OVR | 0| 0|VFM-OVR | | 0|
MAXCON-OVR | 0| 0|Q931c-OVR | | 0|
GROUP-MAXBW-OVR | 0| 0|BAD-PCK | 0|
GROUP-MAXCON-OVR| 0| 0|
-----------------------------------------------------------------------------
With reference to the shown interval of time («Cleared 3 days 00:51:48 ago») these counters show the number of:
CALL | Total number of incoming/outgoing calls. |
SUCC-CALL | Successful incoming/outgoing calls |
FAIL-CALL | Unsuccessful incoming/outgoing calls. |
TIME-CALL | Connection time for incoming/outgoing calls |
MAXBW-OVR | Number of MAXBW exceeded on this link. |
MAXCON-OVR | Number of MAXCON exceeded on this link. |
GROUP-MAXBW-OVR | Number of GROUP-MAXBW exceeded on this link. |
GROUP-MAXCON-OVR | Number of GROUP-MAXCON exceeded on this link. |
VFM-OVR | Voice/Fax modem FIFO overflow. |
Q931c-OVR | Data FIFO overflow. |
BAD-PCK | Received bad frames. |
The values of VMF-OVR
and
Q931c-OVR
fields greater than zero show there is some
sort of overload of the system (it's needed to check for abnormal CPU
consumption). A value greater than 0 may also indicate an overload of
the cluster, i.e. an attempt to use more bandwidth than the link itself
is able to sustain.
It shows the currently present CTI Router connections. Information is displayed in a short format.
[18:51:21] ABILIS_CPX:d ctic
SES ID Type Input Output PR State Cgi (Calling In) Cdo (Called Out)
---- ---- ---- -------- -------- --- ------ ------------------- --------------------
10 10 VtoC 113 Abilis2 2 ACTIVE 16 7777
210 210 CtoC Test1 Test2 41 ACTIVE 3487009816 0376397765
227 227 CtoC Abilis1 Clus2 48 ACTIVE 767 736
Use the following command to view ctic in extended format.
[08:38:33] ABILIS_CPX:d ctice
-------------------------------------------------------------------------------
SES:10 TYPE:VtoC ST:ACTIVE PR:2 STI:10/00 STO:10/00 EEC:NO
ID :10 START:02/07/2015 19:47:53 DURATION:68550 REMAINING:-
IN:113 BCI:Speech OUT:Abilis2 BCO:Speech
CDI:ux876543 CDO:ux7777
CGI:uxq16 CGO:uxq16
SDI: SDO:
SGI: SGO:
RGI: RGO:
CODER:Spirit SP:6400 FMRLY:NO FAXSP:0 DJ:50 FMDJ:200
CTIAC:54 BW:8800 SC:YES MODSP:0 MJ:150 FMMJ:400
MODE:VOICE CurJ:0 TopJ:140 AvgJ:1 FaxPg:0 ECM:YES
UND:749 OVR:0
-------------------------------------------------------------------------------
SES:210 TYPE:CtoC ST:ACTIVE PR:41 STI:10/00 STO:10/00 EEC:NO
ID :210 START:03/07/2015 14:18:21 DURATION:1922 REMAINING:-
IN:Test1 BCI:Speech OUT:Test2 BCO:Speech
CDI:ue0376397765 CDO:ue0376397765
CGI:ueaz3487009816 CGO:ueaz3487009816
SDI: SDO:
SGI: SGO:
RGI: RGO:
CODER:Spirit SP:6400 FMRLY:NO FAXSP:0 DJ:100 FMDJ:200
BW:8800 SC:NO MODSP:0 MJ:250 FMMJ:400
-------------------------------------------------------------------------------
SES:227 TYPE:CtoC ST:ACTIVE PR:48 STI:10/00 STO:10/00 EEC:NO
ID :227 START:03/07/2015 14:50:17 DURATION:5 REMAINING:-
IN:Abilis1 BCI:Speech OUT:Clus2 BCO:Speech
CDI:ux0736 CDO:ux736
CGI:ueq767 CGO:ueq767
SDI: SDO:
SGI: SGO:
RGI: RGO:
CODER:Spirit SP:9600 FMRLY:YES FAXSP:9600 DJ:50 FMDJ:200
BW:12000 SC:NO MODSP:9600 MJ:150 FMMJ:400
The message “NO CTI CONNECTIONS” is generated if no CTI connection is running.
[13:29:11] ABILIS_CPX:d ctic
NO CTI CONNECTIONS
The new heterogeneous group architecture introduces an intermediate layer when the group is involved, regardless of the call being unicast or multicast.
This intermediate layer is removed when the call is connected or when the routing fails.
For this reason you will see two or more connections up to the ALERT state, XtoG and GtoX, which will be replaced by the final one.
Here is an example of a call to a multicast heterogeneous group before answering:
[17:00:09] ABILIS_CPX:d ctic
SES ID Type Input Output PR State Cgi (Calling In) Cdo (Called Out)
---- ---- ---- -------- -------- --- ------ ------------------- --------------------
91 91 StoG Sip G32 14 ALERT 9002 1234
91 92 GtoV G32 101 14 ALERT 9002 1234
91 93 GtoV G32 102 14 ALERT 9002 1234
91 94 GtoV G32 103 14 ALERT 9002 1234
91 95 GtoC G32 CPXPBX 14 ALERT 9002 0521
Here is an example of a call to a multicast heterogeneous group after answering:
[17:00:09] ABILIS_CPX:d ctic
SES ID Type Input Output PR State Cgi (Calling In) Cdo (Called Out)
---- ---- ---- -------- -------- --- ------ ------------------- --------------------
91 91 StoV Sip 103 14 ACTIVE 9002 1234
The meaning:
SES
Session identifier [1..4095].
ID
Call identifier [1..4095].
Type
Connection type [TR, DATA, XtoX where X can be any of V,C,I,S,D,A,G].
Input
Input CTI port or CTI port and group or CTI cluster identifier.
Output
Output CTI port or CTI port and group or CTI cluster identifier.
PR
Used CTI routing priority [0..255, UNK, TRS, INT].
State
Current connection state.
Cgi (Calling In)
Input calling address [0..9].
Cdo (Called Out)
Output called address [0..9].
The meaning for extended format:
SES
Session identifier [1..4095].
ID
Call identifier [1..4095].
Type
Connection type [TR, DATA, XtoX where X can be any of V,C,I,S,D,A,G].
State
Current connection state.
PR
Used CTI routing priority [0..255, UNK, TRS, INT].
STI
Q931 state/Q932 state of the incoming connection side.
STO
Q931 state/Q932 state of the outgoing connection side
EEC
Extended echo canceller activation state [NO, IN, OUT, BOTH].
START
Local date and time when the call was initiated.
DURATION
Duration of the call, in seconds.
REMAINING
Time remaining before unconditional disconnection, in seconds.
IN
Input port/cluster/group [1..600, clusname, Iax, Sip, Disa, Vo, Vm, Mix, Sl, G0..G32, PBX, #].
BCI
Bearer capability input [Speech, 3.1Khz, UDI, RDI, UDI-TA, Video].
OUT
Output port/cluster/group [1..600, Sl, clusname, Iax, Sip, Disa, Vo, Vm, Mix, Sl, G0..G32, PBX, #].
BCO
Bearer capability output [Speech, 3.1Khz, UDI, RDI, UDI-TA, Video].
CGI
Input calling address [0..9].
SGI
Input calling sub-address [0..9, a..z, A..Z].
CDI
Input called address [0..9].
SDI
Input called sub-address [0..9, a..z, A..Z].
CGO
Output calling address [0..9].
SGO
Output calling sub-address [0..9, a..z, A..Z].
CDO
Output called address [0..9].
SDO
Output called sub-address[0..9, a..z, A..Z].
EECI
Input EEC identifier. <EEC:IN or EEC:BOTH Only>
EECI-DELAY
Input EEC current/maximal echo delay. <EEC:IN or EEC:BOTH Only>
EECO
Output EEC identifier. <EEC:OUT or EEC:BOTH Only>
EECO-DELAY
Output EEC current/maximal echo delay. <EEC:OUT or EEC:BOTH Only>
CODER
Used coder.
SP
Current bit rate.
FMRLY
Fax/modem relay indication [NO, YES].
FAXSP
Fax bit rate.
DJ
Default voice jitter buffer size.
FMDJ
Default fax/modem jitter buffer size.
CTIHDLC
Used CTIHDLC.
CTIAC
Used CTIAC.
BW
Current bandwidth.
SC
Silence suppression indication [NO, YES].
MODSP
Modem bit rate.
MJ
Maximum voice jitter buffer size.
FMMJ
Default fax/modem jitter buffer size.
MODE
DSP mode [-, VOICE, FAX-T, FAX, DATA].
CurJ
Current jitter buffer size.
TopJ
Top jitter buffer size.
AvgJ
Average jitter buffer size.
FaxPg
Transferred fax pages number.
ECM
ECM (Error Correcting Mode) activation state [NO, YES].
UND
Underruns.
OVR
Overruns.

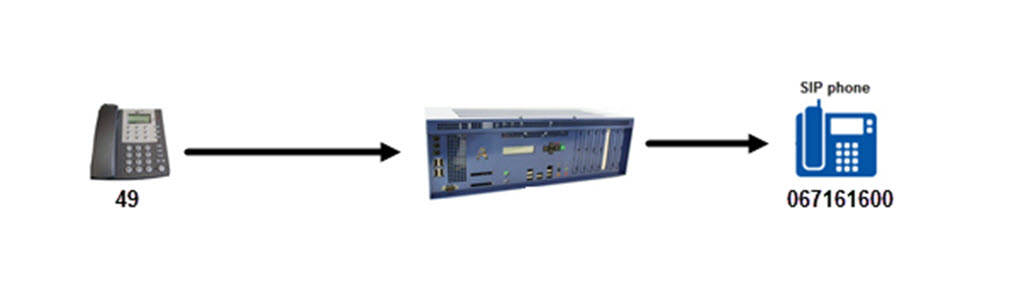

Suppose a call is made from internal number 49 to number 99 and the CTI Router forward this call to external number 067161600.
The Abilis has the following CTIR route:
[14:16:33] ABILIS_CPX:d ctir pr:2
Last change: 17/11/2015 15:37:42 CET
---+------+-----------------+---------+--------------------+--------------------
PR |[DESCR]
|BCI |POI |SR |GI |OUT |CDI |CDO
ACT|NEXT |LAST |EEC |T301|CGI |CGO
EDT|SP |SC |DJ |MJ |FMDJ|FMMJ|SDI |SDO
|SPOUT |SCOUT|DJOUT|MJOUT|LCS |LCST|SGI |SGO
| |BCO |RGI |RGO
|FMRLY |FAXSP|MODSP|FMLVL|ECM |UDT |IG |OG |SG |DL |DH
|CODERS
|CODERSOUT
|TI1 .. TI5
--------------------------------------------------------------------------------
2 VOICE 149 # # Sip 99 067161600
NO ANY NO Dft * 067161699
64000 Sys Sys Sys Sys Sys * *
--------------------------------------------------------------------------------
Debug Log can be simultaneously sent to the current Control Port session using start ldm or start ldme commands. Events are displayed in the same time that they occurs and that they're recorded into the buffer in memory.
Example of debug log and his explanation:
[14:24:26] ABILIS_CPX:start ldme
Current Local Time: Thursday 19/11/2015 14:35:01 (UTC+1.00)
Start Debug Log content real-time logging (Type CTRL+C + ENTER to stop):
Date Time Resource Ses Id Event Parameters
------ ------ ---------- ----- ---- -------------- --------------------------------------
191115 143556 CtiP-149 8 8 E-DialRx CH:1 BC:Speech CG:uxq49 USER:21
# The user 21 with number 49 make a call. The call is made from CTIP-149.
191115 143556 CtiP-149 8 8 E-CallRx CH:1 BC:Speech CD:ux99 CG:uxq49
USER:21
# The Abilis CTI router receive a call from CTIP-149 (number:49) to number 99.
191115 143556 CtiP-149 8 8 E-Route Match PR:2
# The Abilis CTI router have matched the priority PR:2 for this incoming call.
191115 143556 CtiSip 8 8 E-CallTx BC:Speech TY:VtoS CD:ux067161600
CG:uxq067161699
CODERS:G.711A,G.711u,Spirit,G.729A
# The Abilis CTI router forward the call to SIP. He change the CD from 99 to 067161600 and CG from 49 to 067161699 and send his list of allowed coders.
191115 143556 CtiP-149 8 8 E-NumComplete CDI:ux99 CDO:ux067161600
191115 143558 CtiSip 8 8 E-ProgressRx PI:81 88 USER:sip_unite CODERS:G.711A
# The ABILIS CTISIP forward the call to user:sip_unite.
191115 143558 CtiP-149 8 8 E-ProgressTx PI:81 88
191115 143559 CtiSip 8 8 E-AlertRx CH:8 CODERS:G.711A
191115 143559 CtiP-149 8 8 E-AlertTx CH:1 PI: 81 88
# The Abilis CTISIP confirm the call and send the alerting tone. The selected coders is G.711A.
191115 143602 CtiSip 8 8 E-ConnRx CH:8 CODERS:G.711A
191115 143602 CtiP-149 8 8 E-ConnTx CH:1
# The caller answered.
191115 143624 CtiSip 8 8 E-DiscRx CH:8 CAUSE:80 90 (U, Normal call
clearing) USER:sip_unite
191115 143624 CtiSip 8 8 E-DiscConfTx CH:8
191115 143624 CtiP-149 8 8 E-DiscTx CH:1 CAUSE:80 90 (U, Normal call
clearing) USER:21
# The caller has closed the call.
In this example the user 21 with the number 49 has made a call to number 99 and the CTIR router has forwarded this call to the number 067161600, and also the CTIR router have changed the calling number from 49 to 067161699. The call has received from CTIP-149 and has sent it to SIP.
Note | |
---|---|
To view the debug log for the previous calls use the command: d ldme. |
The following command shows the available DSP and their state; it shows the maximum number of possible simultaneous calls.
[08:40:39] ABILIS_CPX:d d ctiac
-------------------------------------------------------------------------------
AC Card DSP/C Bus/TS DSPState ACState ModeIn ModeOut Coder Ctip/BC
-------------------------------------------------------------------------------
0 BRI4-2 0/0 1/00 RUN IDLE - - - -
1 BRI4-2 0/1 1/01 RUN IDLE - - - -
2 BRI4-2 0/2 1/02 RUN IDLE - - - -
3 BRI4-2 0/3 1/03 RUN IDLE - - - -
4 BRI4-2 1/0 1/05 RUN IDLE - - - -
5 BRI4-2 1/1 1/06 RUN IDLE - - - -
6 BRI4-2 1/2 1/07 RUN IDLE - - - -
7 BRI4-2 1/3 1/08 RUN IDLE - - - -
Use the following command to view information in extended format.
[16:16:41] ABILIS_CPX:d de ctiac
-------------------------------------------------------------------------------
AC Card DSP/C Bus/TS DSPState ACState ModeIn ModeOut Coder Ctip/BC
Dtmf DhVol DlVol FmLevel InGain OutGain SigGain MaxFaxSp MaxModSp
SC V-DJ V-MJ V-CurJ V-TopJ V-AvgJ EC BypassCoder
ECM FM-DJ FM-MJ FM-CurJ FM-TopJ FM-AvgJ FaxTxPg FaxFlowState
-------------------------------------------------------------------------------
0 BRI4-2 0/0 8/00 RUN IDLE - - - -
1 BRI4-2 0/1 8/01 RUN IDLE - - - -
2 BRI4-2 0/2 8/02 RUN IDLE - - - -
3 BRI4-2 0/3 8/03 RUN IDLE - - - -
4 BRI4-2 1/0 9/05 RUN IN-USE VOICE VOICE Spirit/6.4k 108/01
OUTBAND -4 -6 -9 0 0 0 9600 7200
NO 50 150 80 100 68 YES -
200 400 0 0 0 0 -
5 BRI4-2 1/1 9/06 RUN IDLE - - - -
6 BRI4-2 1/2 9/07 RUN IDLE - - - -
7 BRI4-2 1/3 9/08 RUN IDLE - - - -
The meaning:
AC
Audio channel number.
Card
Card type.
DSP/C
Index of audio chip on the card. / Index of audio channel in the chip.
Bus/TS
Index of PCM bus on the card. / Index of PCM timeslot on the bus.
DSPState
DSP chip state:
STARTING
- Starting;
RESET
- Resetting;
DWL-K
- Kernel downloading;
DWL-K-OK
- Kernel downloaded;
FAILED-K
- Kernel download
failed;
DWL-P
- Program downloading;
DWL-P-O
- Program downloaded;
FAILED-P
- Program download
failed;
INIT
- Initializng;
INIT-OK
- Initialized;
RUN
- Active;
FAILED-R
- Failed;
RESET-F
- Reset failed;
DISABLED
- disabled.
ACState
DSP channel state;
IDLE
- Closed;
RESERVED
- Open;
IN-USE
- Running;
STOPPED
- Stopped.
ModeIn
DSP channel mode based on incoming frames:
VOICE
, FAX-T
,
FAX
, DATA
,
SILENCE
, BFI
,
DTMF
, SID
.
ModeOut
DSP channel mode based on outgoing frames:
VOICE
, FAX-T
,
FAX
, DATA
,
SILENCE
, BFI
,
DTMF
, SID
.
Coder
A set of allowed audio codecs. One bit means one codec type.
Ctip/BC
CTI port number currently connected to this audio channel. / B-channel currently connected to this audio channel.
Dtmf
Inband/outband DTMF relay.
DhVol
DTMF high freq. level.
DlVol
DTMF low freq. level.
FmLevel
Fax level.
InGain
Input audio gain.
OutGain
Output audio gain.
SigGain
Signal gain.
MaxFaxSp
Maximum bit speed allowed for fax relay transfer.
MaxModSp
Maximum bit speed allowed for modem relay transfer.
SC
A flag that indicates whether the silence suppression mode is enabled or disabled.
V-DJ
Voice - default jitter - configured.
V-MJ
Voice - maximal jitter - configured.
V-CurJ
Voice - current jitter.
V-TopJ
Voice - top jitter - compensation delay reached.
V-AvgJ
Voice - average jitter compensation of call.
EC
Flag that indicates whether the Echo canceler is enabled or not.
BypassCoder
A set of allowed bypass codecs. One bit means one codec type. Meaning of individual bits is identical to those of AudioCodecs field.
ECM
Flag that indicates if Error correction mode is enabled for Fax/Data.
FM-DJ
Fax modem - default jitter - configured.
FM-MJ
Fax modem - maximal jitter - configured.
FM-CurJ
Fax modem - current jitter.
FM-TopJ
Fax modem - top jitter compensation delay reached.
FM-AvgJ
Fax modem - average jitter compensation of call.
FaxTxPg
Transmitted pages - meaning only during FAX connection.
FaxFlowState
Flow state of FAX connection. Possible states: Rx-CED, Rx-V.21, Rx-DIS, Tx-DCS, Tx-DTC, Tx-TCF, Rx-preMSG-rsp, Tx-image-MSG, Tx-postMSG-cmd, Rx-postMSG-rsp, Tx-CTC Tx-DCN, Tx-CED, Tx-V.21, Tx-DIS, Rx-DCS, Rx-DTC, Rx-TCF, Tx-preMSG-rsp, Rx-image-MSG, Rx-postMSG-cmd, Tx-postMSG-rs, Rx-CTC Rx-DCN.
Type the following commands to show the statistics about DSP and audio coders:
[08:48:57] ABILIS_CPX:d s ctiac
-------------------------------------------------------------------------------
AC's Statistics were cleared 5 days 20:31:36 ago, on 10/08/2018 at 17:45:06
-------------------------------------------------------------------------------
AC:0 CARD:BRI4-2
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
OPEN | 86| |CLOSE | 86| |
PCK | 521791| 446607|CHR | 20656562| 15657186|
VOICE-UND | | 424|FM-UND | | 0|
VOICE-OVR | | 105|FM-OVR | | 0|
VOICE-LOST | 0| |FM-LOST | 0| |
FRM | 633056| 446390|FRM-FAX-BYP| 0| 0|
FRM-VOICE | 501398| 429708|FRM-FAX-REL| 88| 1291|
FRM-SILENCE| 120687| 15317|FRM-CED | 1| 2|
FRM-SID | 7502| 0|FRM-FAX-DUM| 3330| |
FRM-DTMF | 50| 0|FAX-TOUT | 0| |
TX-UND | | 404|RX-OVR | 0| |
MDC | 0| |CMD | | 1376|
------------------------------------------------------------------------
AC:1 CARD:BRI4-2
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
OPEN | 83| |CLOSE | 83| |
PCK | 266191| 222528|CHR | 16375754| 13084940|
VOICE-UND | | 3117|FM-UND | | 0|
VOICE-OVR | | 314|FM-OVR | | 0|
VOICE-LOST | 1| |FM-LOST | 0| |
FRM | 339277| 222144|FRM-FAX-BYP| 0| 0|
FRM-VOICE | 256918| 209117|FRM-FAX-REL| 630| 5469|
FRM-SILENCE| 62069| 7497|FRM-CED | 7| 0|
FRM-SID | 3175| 0|FRM-FAX-DUM| 16445| |
FRM-DTMF | 33| 2|FAX-TOUT | 0| |
TX-UND | | 2886|RX-OVR | 1| |
MDC | 0| |CMD | | 1093|
------------------------------------------------------------------------
AC:2 CARD:BRI4-2
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
OPEN | 85| |CLOSE | 85| |
PCK | 212028| 213795|CHR | 11544936| 11103158|
VOICE-UND | | 677|FM-UND | | 0|
VOICE-OVR | | 341|FM-OVR | | 3|
VOICE-LOST | 2| |FM-LOST | 0| |
FRM | 258895| 213321|FRM-FAX-BYP| 0| 0|
FRM-VOICE | 205093| 206882|FRM-FAX-REL| 707| 1828|
FRM-SILENCE| 44488| 4546|FRM-CED | 2| 4|
FRM-SID | 2275| 0|FRM-FAX-DUM| 6324| |
FRM-DTMF | 6| 3|FAX-TOUT | 0| |
TX-UND | | 615|RX-OVR | 0| |
MDC | 0| |CMD | | 1224|
------------------------------------------------------------------------
AC:3 CARD:BRI4-2
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
OPEN | 81| |CLOSE | 81| |
PCK | 329029| 353294|CHR | 16531696| 14974230|
VOICE-UND | | 3287|FM-UND | | 0|
VOICE-OVR | | 1369|FM-OVR | | 0|
VOICE-LOST | 5| |FM-LOST | 0| |
FRM | 414667| 351840|FRM-FAX-BYP| 0| 0|
FRM-VOICE | 320074| 340720|FRM-FAX-REL| 176| 1323|
FRM-SILENCE| 87166| 9734|FRM-CED | 2| 0|
FRM-SID | 3181| 0|FRM-FAX-DUM| 4051| |
FRM-DTMF | 17| 0|FAX-TOUT | 0| |
TX-UND | | 2904|RX-OVR | 0| |
MDC | 0| |CMD | | 1361|
------------------------------------------------------------------------
AC:4 CARD:BRI4-2
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
OPEN | 84| |CLOSE | 84| |
PCK | 424578| 388329|CHR | 37589920| 34629560|
VOICE-UND | | 663|FM-UND | | 0|
VOICE-OVR | | 566|FM-OVR | | 3|
VOICE-LOST | 0| |FM-LOST | 0| |
FRM | 479323| 387648|FRM-FAX-BYP| 0| 0|
FRM-VOICE | 414983| 381352|FRM-FAX-REL| 983| 88|
FRM-SILENCE| 57939| 6141|FRM-CED | 0| 4|
FRM-SID | 3063| 0|FRM-FAX-DUM| 2292| |
FRM-DTMF | 63| 0|FAX-TOUT | 0| |
TX-UND | | 629|RX-OVR | 0| |
MDC | 0| |CMD | | 1271|
------------------------------------------------------------------------
AC:5 CARD:BRI4-2
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
OPEN | 84| |CLOSE | 84| |
PCK | 600272| 497017|CHR | 26027434| 19455056|
VOICE-UND | | 579|FM-UND | | 0|
VOICE-OVR | | 119|FM-OVR | | 0|
VOICE-LOST | 0| |FM-LOST | 0| |
FRM | 734820| 496826|FRM-FAX-BYP| 0| 0|
FRM-VOICE | 576501| 481701|FRM-FAX-REL| 126| 1948|
FRM-SILENCE| 144277| 13088|FRM-CED | 2| 2|
FRM-SID | 8851| 0|FRM-FAX-DUM| 5061| |
FRM-DTMF | 2| 34|FAX-TOUT | 0| |
TX-UND | | 249|RX-OVR | 0| |
MDC | 0| |CMD | | 1153|
------------------------------------------------------------------------
AC:6 CARD:BRI4-2
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
OPEN | 84| |CLOSE | 84| |
PCK | 374751| 373547|CHR | 18749814| 16331086|
VOICE-UND | | 1775|FM-UND | | 0|
VOICE-OVR | | 904|FM-OVR | | 2|
VOICE-LOST | 3| |FM-LOST | 0| |
FRM | 488459| 372587|FRM-FAX-BYP| 0| 0|
FRM-VOICE | 357758| 355873|FRM-FAX-REL| 1495| 2515|
FRM-SILENCE| 113082| 14123|FRM-CED | 4| 2|
FRM-SID | 5827| 0|FRM-FAX-DUM| 10236| |
FRM-DTMF | 57| 11|FAX-TOUT | 0| |
TX-UND | | 1517|RX-OVR | 1| |
MDC | 0| |CMD | | 1229|
------------------------------------------------------------------------
AC:7 CARD:BRI4-2
-----------|---INPUT---|--OUTPUT---|-----------|---INPUT---|--OUTPUT---|
OPEN | 81| |CLOSE | 81| |
PCK | 444140| 354474|CHR | 19114900| 14292406|
VOICE-UND | | 1133|FM-UND | | 0|
VOICE-OVR | | 438|FM-OVR | | 0|
VOICE-LOST | 5| |FM-LOST | 0| |
FRM | 563101| 353994|FRM-FAX-BYP| 0| 0|
FRM-VOICE | 428131| 340864|FRM-FAX-REL| 328| 2156|
FRM-SILENCE| 122093| 10900|FRM-CED | 4| 0|
FRM-SID | 5856| 0|FRM-FAX-DUM| 6635| |
FRM-DTMF | 54| 18|FAX-TOUT | 0| |
TX-UND | | 925|RX-OVR | 0| |
MDC | 0| |CMD | | 1180|
------------------------------------------------------------------------
With reference to the shown interval of time («cleared 5 days 20:31:36 ago») these counters show the number of:
AC | Audio channel number. |
CARD | Card type and index. |
OPEN | Number of channel opening. |
CLOSE | Number of channel closing. |
PCK | NCBs for read from/write to DSP channel from upper layer. |
CHR | Rx/Tx bytes from/to DSP chip |
VOICE-UND | Number of out underruns. |
FM-UND | Number of out fax modem underruns. |
VOICE-OVR | Number of out overruns. |
VFM-OVR | Number of out fax modem overruns. |
VOICE-LOST | Lost voice frames on Rx side. |
FM-LOST | Lost fax modem frames on Rx side. |
FRM | Rx/Tx frames from/to DSP chip. |
FRM-VOICE | Rx/Tx voice frames. |
FRM-SILENCE | Silence frames. |
FRM-SID | SID frames. |
FRM-DTMF | DTMF frames. |
FRM-FAX-BYP | Fax bypass frames. |
FRM-FAX-REL | Fax relay frames. |
FRM-CED | CED frames. |
FRM-FAX-DUM | Dummy (FAX or DATA) messages from DSP channel. |
FAX-TOUT | Dummy frames with set TO bit. |
TX-UND | AC DSP "UR" events. |
RX-OVR | Receive Over-run in DSP chip - "ROR" events. |
MDC | Misalignment Detection and Correction. |
CMD | Tx commands. |
The following command shows the available coders supported by CTI cards installed and the number of simultaneous calls.
[08:44:19] ABILIS_CPX:d d ctisys
RES:CtiSys --------------------------------------------------------------------
CTI_System_general_properties
CTIR-STATE:ENABLED CALLS-CURRENT:1 CALLS-PEAK:8
AC-STATE:ENABLED AC-CURRENT:1 AC-PEAK:7
------------------------------------------------------------------------
-- Number of simultaneous calls ----------------------------------------
| State: Alerting/Connected | State: Any |
---------------|---Current---|----Peak-----|---Current---|----Peak-----|
TR | 0 | 1 | 0 | 1 |
DATA | 0 | 1 | 0 | 1 |
VtoCISDA | 1 | 5 | 1 | 5 |
CISDAtoCISDA | 0 | 2 | 0 | 4 |
CISDAtoV | 0 | 2 | 0 | 2 |
ALL | 1 | 8 | 1 | 8 |
------------------------------------------------------------------------
- AC and SWAC common available coders ----------------------------------
-- Coder ---|-- Bit rates (kbps) --|-- Coder ---|-- Bit rates (kbps) --|
G.711A |64 |G.711u |64 |
G.729A |8 |TRANSPARENT |64 |
Spirit |6.4, 7.2, 8, 8.8, 9.6 |
------------------------------------------------------------------------
- SWAC and MCD limits by CPU -------------------------------------------
MAX-SWAC-0ms:28 MAX-SWAC-8ms:24 MAX-SWAC-16ms:22 MAX-SWAC-32ms:19
MAX-MCD-SPIRIT:28 MAX-MCD-G729A:33
- SWAC and MCD diagnostics ---------------------------------------------
CUR-SWAC:1 PEAK-SWAC:6 REST-SWAC:7 MAX-SWAC:8 LIMIT-SWAC:HDLC
CUR-MCD:0 PEAK-MCD:2 MAX-HDLC:8
------------------------------------------------------------------------
- Clock Sources for H100 cards -----------------------------------------
CLK:38
- Clock Sources for NOT-H100 cards -------------------------------------
*** No NOT-H100 cards running ***
The meaning:
CTIR-STATE
CTI routing state.
CALLS-CURRENT
Current number of simultaneous calls in any state.
CALLS-PEAK
Peak number of simultaneous calls in any state.
AC-STATE
Audio Codec state.
AC-CURRENT
Current number of AC.
AC-PEAK
Peak number of used AC.
MAX-SWAC-0ms
Number of SWAC permitted by CPU with 0 ms echo tail.
MAX-SWAC-8ms
Number of SWAC permitted by CPU with 8 ms echo tail.
MAX-SWAC-16ms
Number of SWAC permitted by CPU with 16 ms echo tail.
MAX-SWAC-32ms
Number of SWAC permitted by CPU with 32 ms echo tail.
MAX-MCD-SPIRIT
Maximal number of MCD for the 'SPIRIT' codec permitted by CPU.
MAX-MCD-G729A
Maximal number of MCD for the 'G729A' codec permitted by CPU.
CUR-SWAC
Current number of swac channels.
PEAK-SWAC
Peak number of swac channels.
REST-SWAC
Remaining number of swac channels considering current ec-tail, cpu limit, cfg limit.
MAX-SWAC
Maximal number of swac channels considering current ec-tail, cpu limit, cfg limit.
LIMIT-SWAC
The reason of the limit: CFG
,
CPU
, HDLC
.
CUR-MCD
Current number of MCD.
PEAK-MCD
Peak number of MCD.
MAX-HDLC
Maximal number of HDLC channels that support SWAC.
CLK
Port actually used for clock recovery.
This command can help to understand what is happening, in case of troubles:
[08:49:51] ABILIS_CPX:d s ctisys
RES:CtiSys --------------------------------------------------------------------
CTI_System_general_properties
--- Cleared 5 days 22:40:27 ago, on 10/08/2018 at 17:45:06 -------------
-- Number of successful (connected) calls, updated at call end ----------
------------|---INPUT---|--OUTPUT---|--LOCAL----|--TRANSIT--|----SUM----|
TR | 0| 6| 9| 0| 15|
DATA | 2| 0| 0| | 2|
VtoCISDA | 0| 33| 0| 16| 49|
CISDAtoCISDA| 1| 0| 0| 30| 31|
CISDAtoV | 21| 0| 0| 2| 23|
SUM | 24| 39| 9| 48| 120|
-------------------------------------------------------------------------
-- Seconds of successful (connected) calls, updated at call end ---------
------------|---INPUT---|--OUTPUT---|--LOCAL----|--TRANSIT--|----SUM----|
TR | 0| 610| 422| 0| 1032|
DATA | 72| 0| 0| | 72|
VtoCISDA | 0| 8226| 0| 870| 9096|
CISDAtoCISDA| 47| 0| 0| 3500| 3547|
CISDAtoV | 6773| 0| 0| 473| 7246|
SUM | 6892| 8836| 422| 4843| 20993|
-------------------------------------------------------------------------
-- Number of unsuccessful calls -----------------------------------------
------------|---INPUT---|--OUTPUT---|--LOCAL----|--TRANSIT--|----SUM----|
TR | 0| 3| 3| 0| 6|
DATA | 0| 0| 0| | 0|
VtoCISDA | 0| 32| 0| 0| 32|
CISDAtoCISDA| 0| 0| 0| 4| 4|
CISDAtoV | 12| 0| 0| 2| 14|
SUM | 12| 35| 3| 6| 56|
-------------------------------------------------------------------------
-- Internal failures for not connected calls ----------------------------
------------|---INPUT---|--OUTPUT---|--LOCAL----|--TRANSIT--|----SUM----|
NoRoute | | | | | 0|
NoDest | | | | | 0|
No-C-CISDA | | | | | 0|
NoPcmRes | 0| 0| 0| 0| 0|
NoAcRes | 0| 0| 0| 0| 0|
NoEecRes | 0| 0| 0| 0| 0|
NoHdlcRes | 0| 0| 0| | 0|
NoAcCodec | 0| 0| 0| 0| 0|
PlinkFail | 0| 0| | 0| 0|
BwLimit | | 0| | 0| 0|
IsdnL1down | 0| 0| 0| 0| 0|
IsdnL2down | 0| 0| 0| 0| 0|
-------------------------------------------------------------------------
-- Internal failures after call connected -------------------------------
------------|---INPUT---|--OUTPUT---|--LOCAL----|--TRANSIT--|----SUM----|
PlinkFail | 0| 0| | 0| 0|
IsdnL1down | 0| 0| 0| 0| 0|
IsdnL2down | 0| 0| 0| 0| 0|
-------------------------------------------------------------------------
With reference to the shown interval of time («Cleared 5 days 22:40:27 ago») these counters show the number of:
NoRoute | Numbers of internal failures with "No route to destination". |
NoDest | Numbers of internal failures with "Incompatible destination.". |
No-C-CISDA | It is increased when call is refused when the call
exceeds the value configured for
max-c-tofrom-cisda . |
NoAcRes | Numbers of internal failures with "No AC available". |
NoEecRes | Numbers of internal failures with "No EEC available". |
NoHdlcRes | Numbers of internal failures with "No HDLC available.". |
NoAcCodec | Numbers of internal failures with "No AC available". |
BwLimit | Numbers of internal failures with "Not enough bandwidth". |
IsdnL1down | Numbers of internal failures with "Destination out of order (NRC_L1DOWN). Level 1 of the ISDN is inactive". |
IsdnL2down | Numbers of internal failures with "Destination out of order (NRC_L2DOWN). Level 2 of the ISDN is inactive, or failed to activate". |
