This page allows to add/remove/change a group or to change a group preferences.

	Caution
	Generally the access to this section is reserved for users with administrator's rights.

The anonymous access is disabled by default; add the path /sys/admin/users/ in the HTTP Virtual Paths Access Rights Table for httpuser.

[14:08:39] ABILIS_CPX:a http rights path:/sys/admin/groups/ user:httpuser

COMMAND EXECUTED

[14:16:06] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
...
-------------------------------------------------------------------------------
10 /sys/admin/groups/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
2 /sys/pub/
     anonymous                        r---  ----  YES    PLAIN,SSL
-------------------------------------------------------------------------------
...

Click Group on the CPX Administration page.

69.2.1. Example of group creation

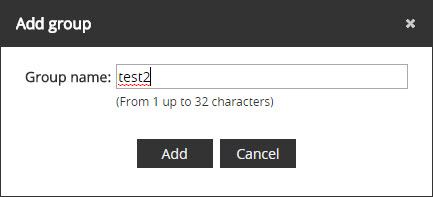

Click on button, and insert the name and click Add button.

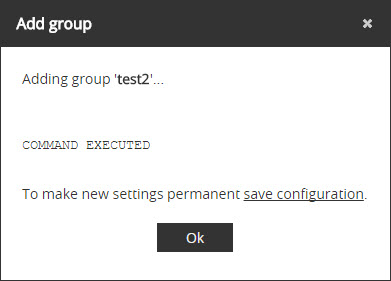

The following page confirms the change. Click OK button.

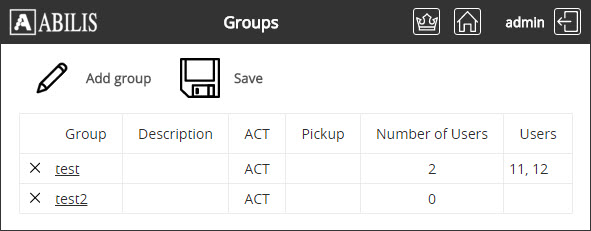

The new group is shown in the list of groups.

	Tip
	Remember to save the configuration to make the change permanent.

69.2.2. Example of group deletion

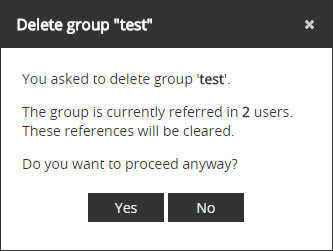

Click on the at the left of the group to delete and then click Yes button.

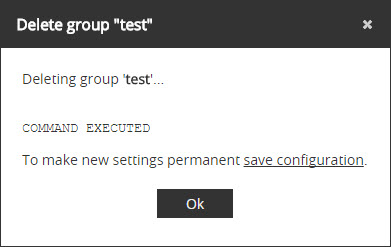

Click Ok button on the confirmation page.

The group is deleted.

	Tip
	Remember to save the configuration to make the change permanent.

69.2.3. Viewing/changing a group

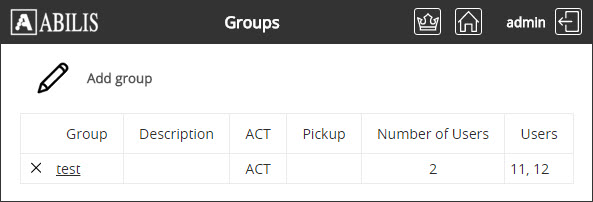

On the Group administration page, a list of existing groups is shown.

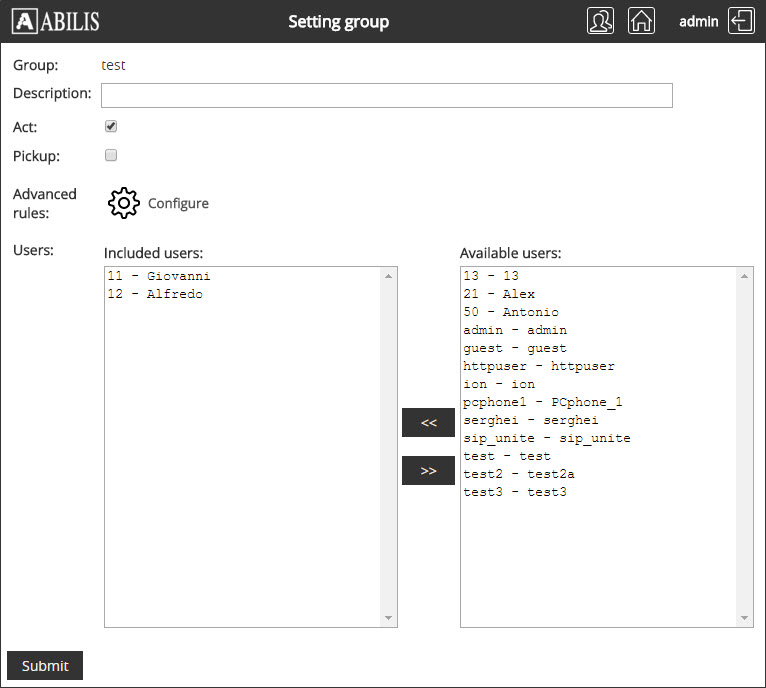

Click the group to change, add a description, add users and click Submit button.

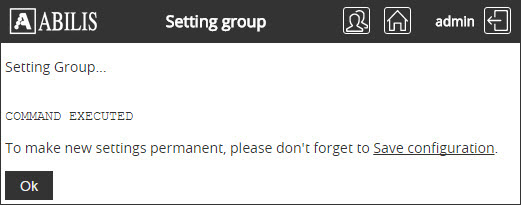

Click Ok button on confirmation page.

Click Groups button on right top corner of the following page.

The user has been added to the group.

69.2.4. Changing CTI advanced rules

Click on the Group and click the Advanced rules button.

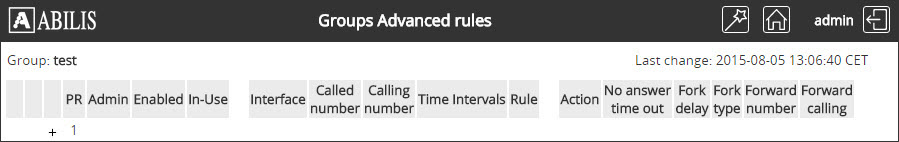

Click the group and click Add button.

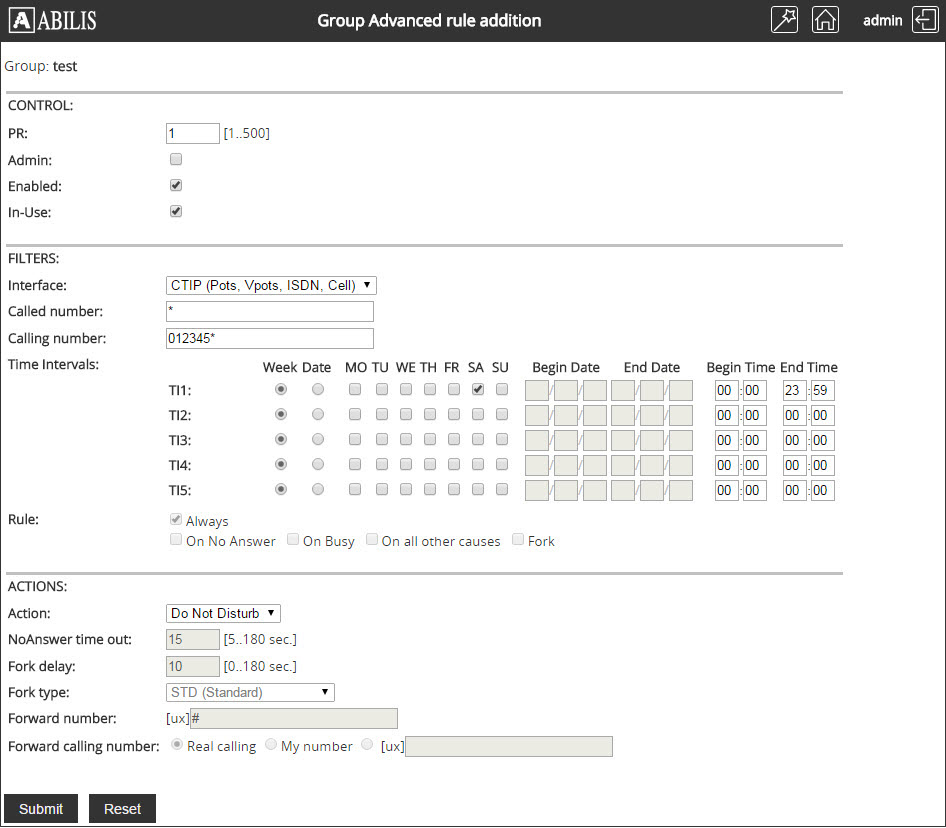

Enable DND for calls incoming on CTIP interface, calling every number starting with 012345, only on Saturday. Then, click the Submit button on the bottom of page.

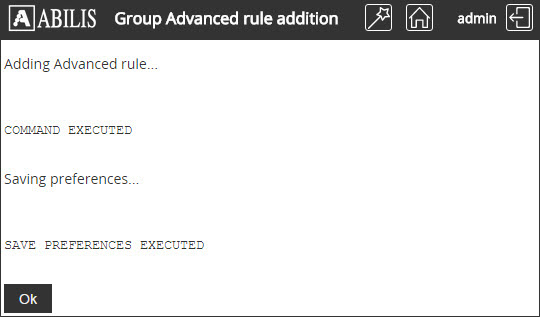

Click OK button on the following page.

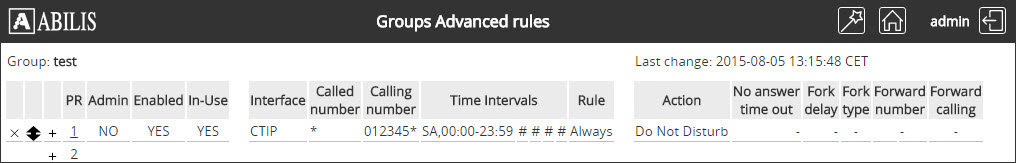

The rule for the group has been added.
