69.18. Lan monitor

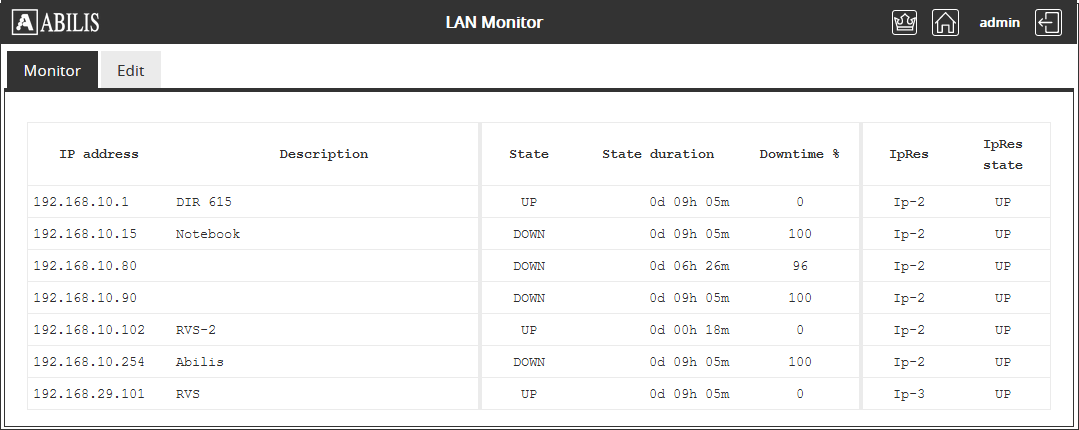

Lan monitor service monitors the attached LAN devices.

This service currently works only for devices on locally attached LAN, LAN-PT, VIRTUAL over LAN/LAN-PT, using ARP polling.

Go to Abilis Home page, log-in, go to the Administration page and select the Lan monitor icon.

[Important]Important

If LAN monitor icon is not active please activate the IPMon resource.

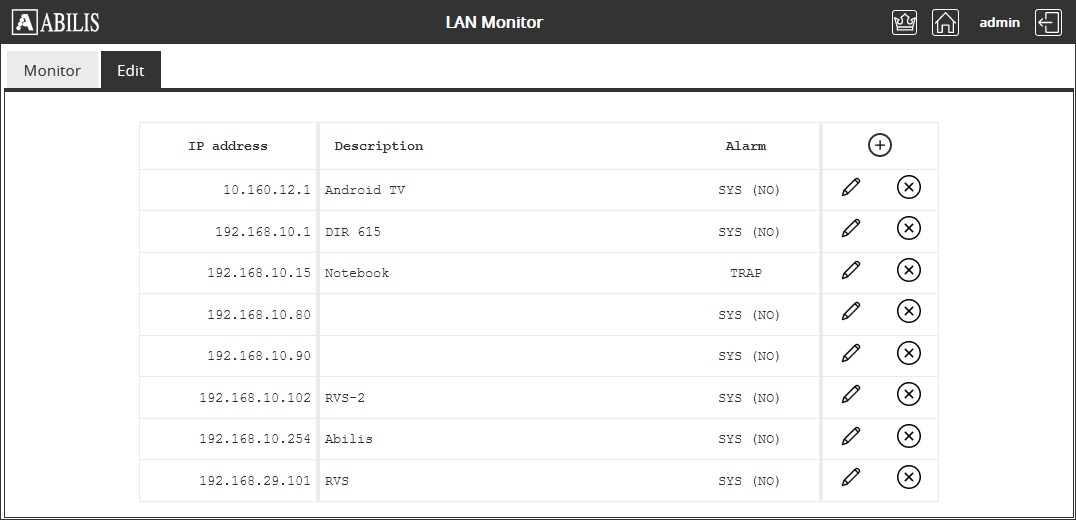

To add another device, click the Edit tab.

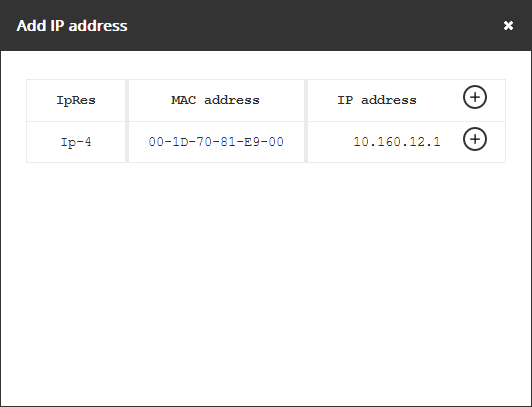

Opens a pop-up windows, where users can see available devices on the LAN.

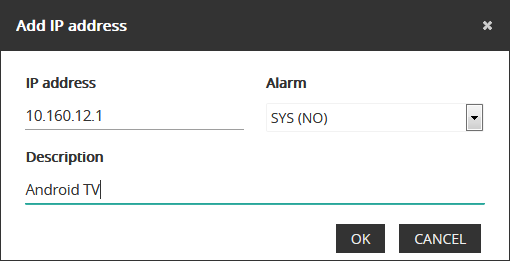

Clicking button will open a pop-up windows, where users can add new device to monitor:

Click OK. Now the device is added to monitor.

This button opens a pop-up window, where users can edit the selected device:
