71.1. Top 10

Giving appropriate rights to the user is needed to access this page, so use the following commands:

[11:28:50] ABILIS_CPX:a http rights path:/sys/trfa/ip/ user:httpuser

COMMAND EXECUTED

[11:40:04] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
2 /sys/trfa/ip/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------

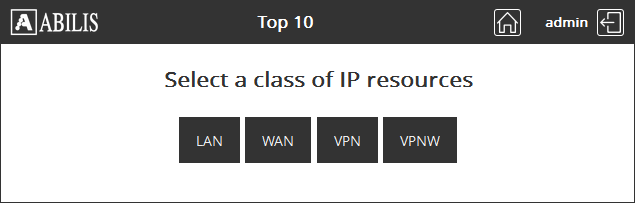

Log-in and click Top 10 to access the following page:

[Tip]Tip

The classification is set by default when an IPRES is created and can be changed by the technician at any moment with the parameter TYPE in IPRES.

Clicking "LAN" button will display all LAN resources:

Here you can choose one or a several, or all. Click "OK" to continue. For example, select only IP-1 and click "OK.

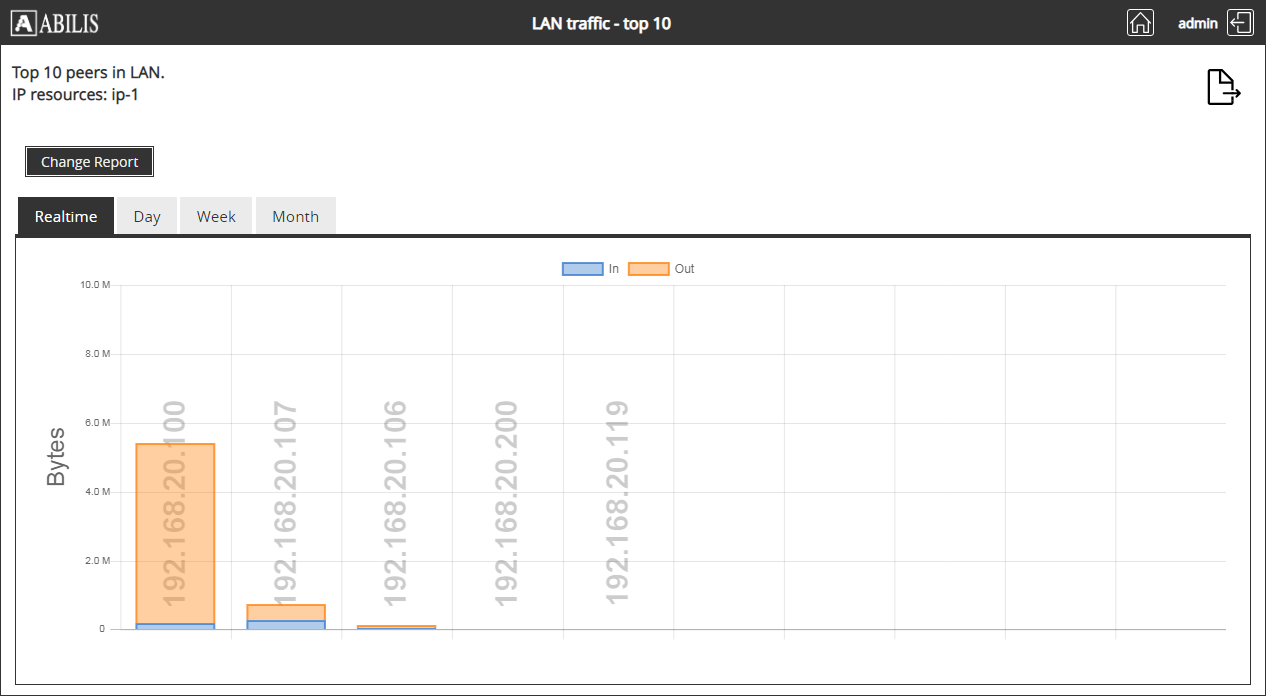

This graph shows the 10 IP addresses that have generated the most traffic in realtime on the IP-1 resource, and quantity of traffic.

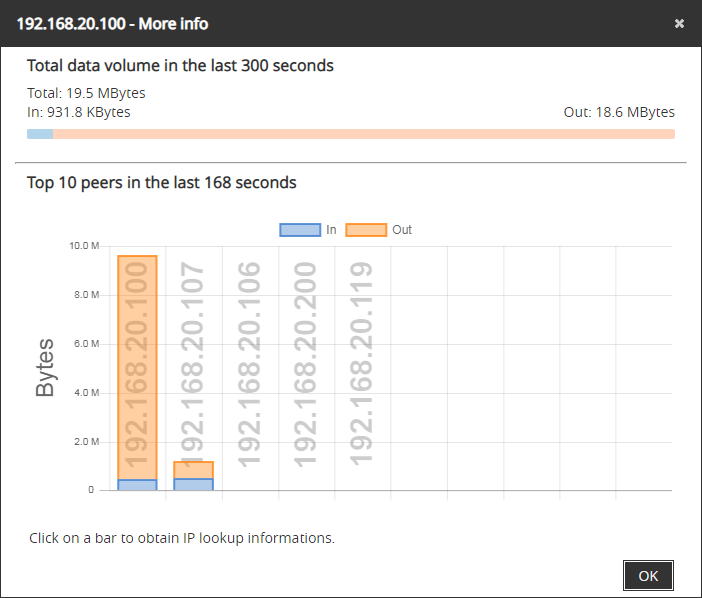

Clicking the IP on graph, for example 192.168.20.100, will open a pop-up window with details.

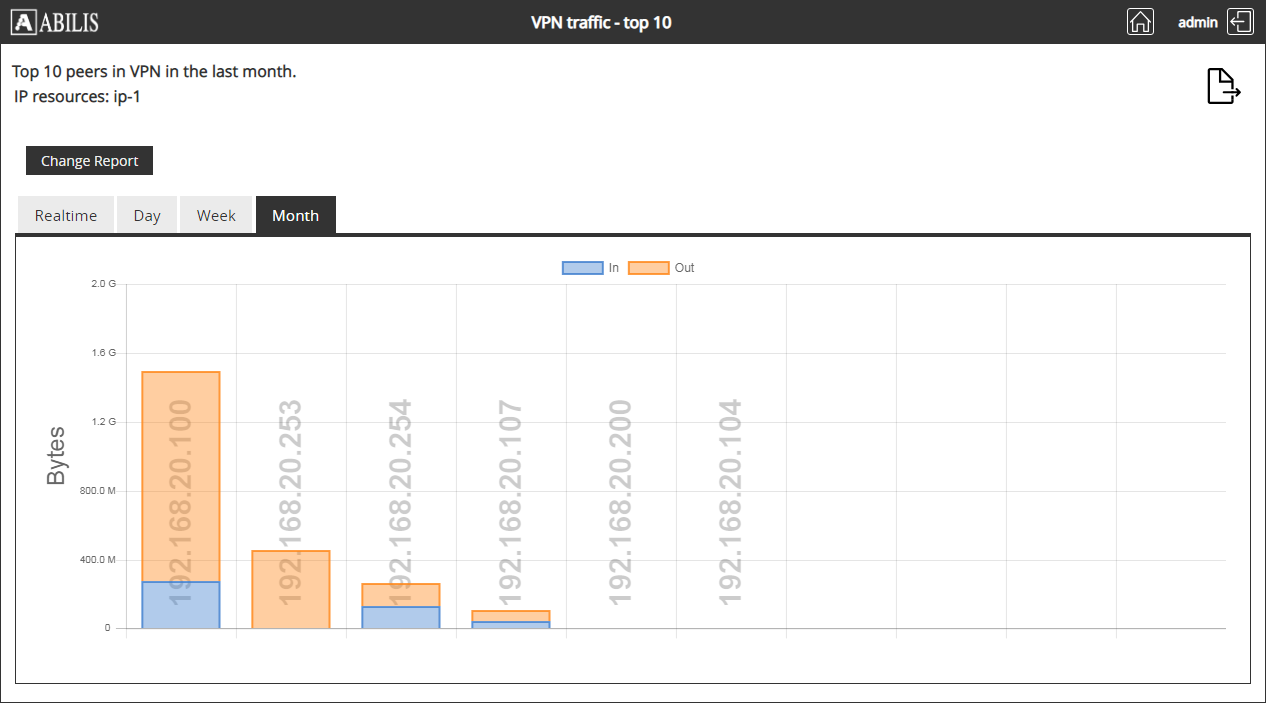

To see daily traffic, please click the "Day" tab, the "Week" tab for weekly traffic and "Month" for monthly.

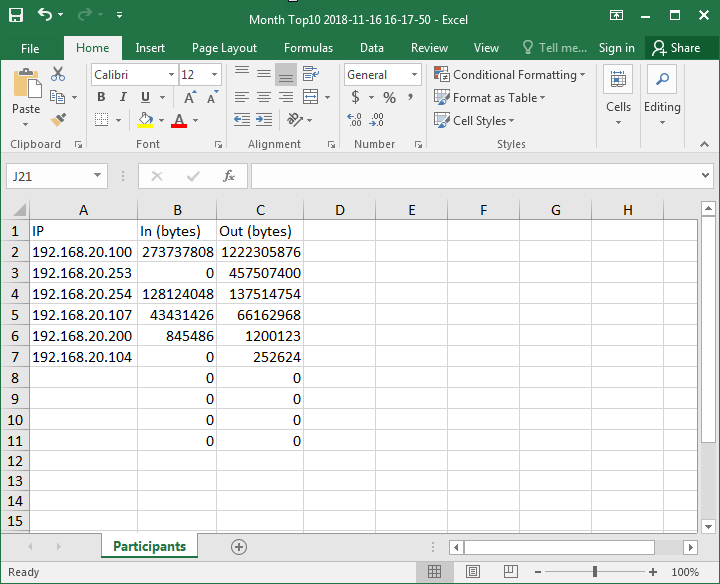

Click button to download spreadsheet of the current chart.
