Enter into the Abilis control-program or open the configuration file with the Console configurator and type the following commands.
| a
res:ctiiax or s act res:ctiiax | Add the CTIIAX resource. or If the resource already exists, set it active. |
| s p ctiiax act:yes | Enable the CTIIAX runtime functionalities. |
| s p ctiiax

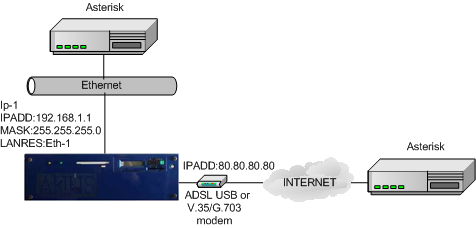

srcadd:192.168.1.1 or s p ctiiax srcadd:out-ip | If Asterisk is placed in the Abilis
LAN. or If Asterisk is placed in Internet. |
| a user:asterisk pwd:swordfish iax:yes | Add the username and password associated to Asterisk and enable it to IAX protocol. |
| s user:asterisk iax-host:192.168.1.31 | Configure the Asterisk IP address. |
| s user:asterisk iax-number:* | Configure the Asterisk IAX number. |
| s user:asterisk iax-maxses-bid:10 | Configure the maximum number of IAX bidirectional sessions. |
| s user:asterisk iax-trunk:yes | Enable the trunking. |
| s user:asterisk iax-rem-reg:yes iax-rem-auth:md5 | Enable the registration of Abilis onto Asterisk and configure the authentication method. |
| s user:asterisk iax-rem-user:abilis iax-rem-pass:swordfish | Configure the username and password used by Abilis to register itself onto Asterisk. |
| save conf | Save the configuration. |
On a working Abilis, a system restart is required to make the CTIIAX resource running.
| |  | |
