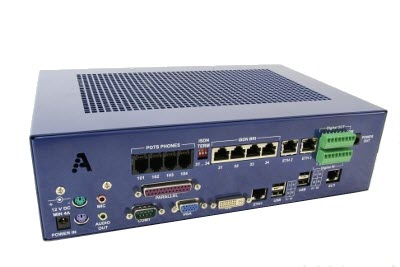

Figure 2.23. Micro Abilis C3
Micro Abilis C3 is a non-expandable device equipped with:
CPU: 1.5 GHz;
RAM: 256 MB DDR;
BOOT DISK: CompactFlash 128MB;
3 Ethernet 10/100;
1 RS-232 port;
Power out connector useful to supply UMTS BOX2 or POTSBOX;
1 ELTI;
4 USB ports;
4 BRI;
4 POTS.
Table 2.1.
LIVE
AUX
Abilis Status
Not used
LIVE and AUX leds flashing: startup
LIVE led flashing (1s ON - 1s OFF): Abilis status is ok
AUX led: not used

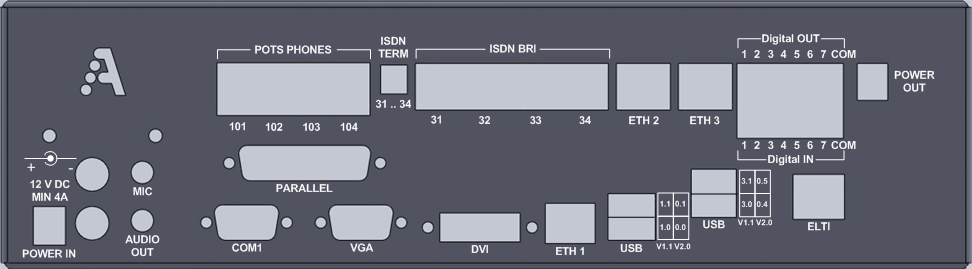

Figure 2.24. The numbering of the physical ports
Dimensions[mm]: 305x195x90;
Weight: 2,9 Kg;
Power supply: +12V DC/5A, 60W.
