	Chapter 2. Abilis hardware

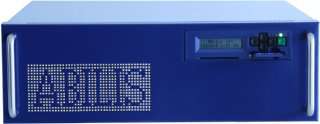

Figure 2.3. Abilis Base-J

Abilis Base-J is an expandable device. Below there are the hardware characteristics of the base unit:

Intel Celeron 430
512 MB RAM
Dual 128MB Compact-Flash modules for boot
PC platform with 4 PCI-slots and 4 USB (optionally expandable up to 8) ports for expansion modules and 1 ethernet
2 RS-232 ports
Hardware Watchdog processor

These are the expansions:

up to 8 ISDN-2 ports (up to 16 simultaneous calls to the ISDN public network). Refer to the following chapters: Section 2.9.3, “QPRIX”, Section 2.9.5, “PB44X”, Section 2.9.7, “BRI-HFC4 / BRI-HFC8”,Section 2.9.8, “BRIO”
up to 48 analogue extensions (for “internal” telephones or fax). Refer to the following chapter:Section 2.9.9, “POTS 4/8/16”
up to 128 VoIP telephones (SIP or IAX2 protocol). Refer to the following chapter:Section 2.9.11, “VoIP”
up to 8 xDSL concurrent connections to the Internet. Refer to the following chapter:Section 2.10.1, “ADSL modem”
up to 8 GSM/UMTS gateways (up to 16 simultaneous calls between the fixed and the mobile network). Refer to the following chapter:Section 2.10.2, “UMTS-BOX2”
up to two 5” 5200 RPM SATA Hard-Drives

Abilis Base-j doesn't includes all licences, because it's a class 3 device. Refer to Section 6.1.1, “ABILIS ID and the class of product” to know more about licencing.

Dimensions[mm]: 440x355x138;

Weight:7,5 Kg;

Power supply:110-230VAC, 150W.
