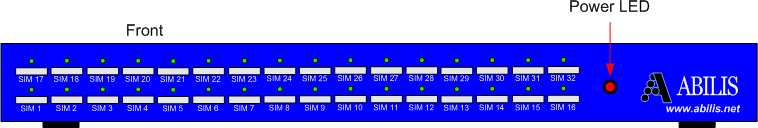

Figure 3.14. Simbox - front view

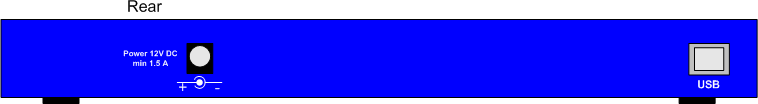

Figure 3.15. Simbox - rear view
Follow the steps below to connect a Simbox:
Power on Abilis;
connect the Simbox to Abilis using the USB cable;
connect the power supply to Simbox;
insert at least one sim;
add/configure the SIMBOX device;

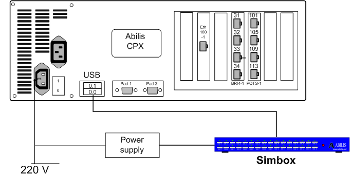

Figure 3.16. Connecting Simbox
Interesting chapters:
Chapter 12, Simbox;
Section 2.10.6, “Simbox”.
