	Chapter 2. Abilis hardware

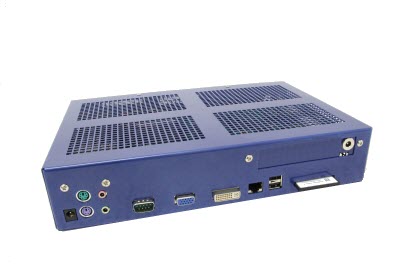

Figure 2.9. Pico Abilis P1E

Pico Abilis is a non-expandable device equipped with:

Pico Abilis is a device available in more versions:

P1E - with 1 Ethernet
P1E1B - with 1 Ethernet and 1 BRI
Figure 2.10. Pico Abilis P1E1B
P1E2B1L - with 1 Ethernet, 2 BRI and 1 ELTI
P1E4B1L - with 1 Ethernet, 4 BRI and 1 ELTI
P1E4S1L - with 1 Ethernet, 4 FXS and 1 ELTI
P1E2B2S1L - with 1 Ethernet, 2 BRI, 2 FXS and 1 ELTI
Figure 2.11. Pico Abilis P1E2B2S1L
P2E - with 2 Gigabit Ethernet
P3E1L - with 3 Gigabit Ethernet and 1ELTI
P4E1B - with 4 Ethernet and 1 BRI
P5E - with 5 Ethernet

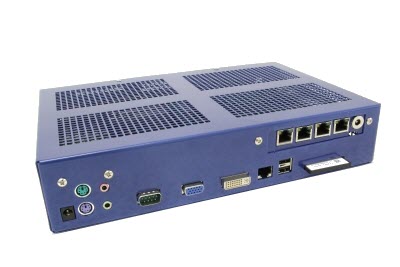

Figure 2.12. Pico Abilis P5E

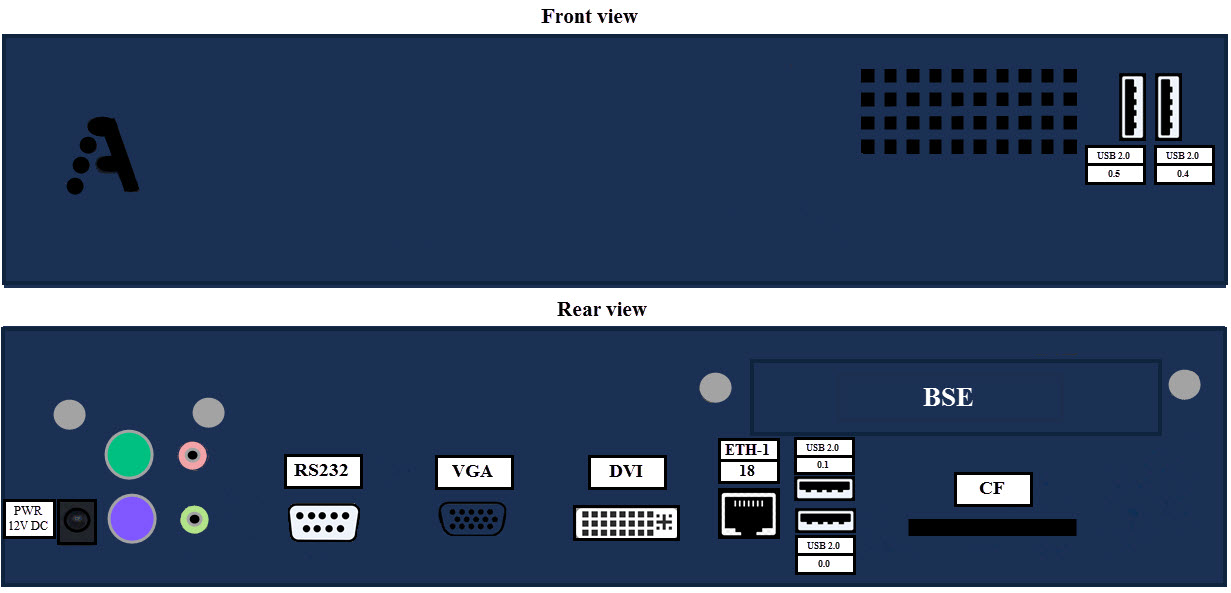

Figure 2.13. The numbering of the physical ports

Dimensions[mm]: 295x200x60;

Weight:1,8 Kg;

Power supply: 12V DC 2.5A
