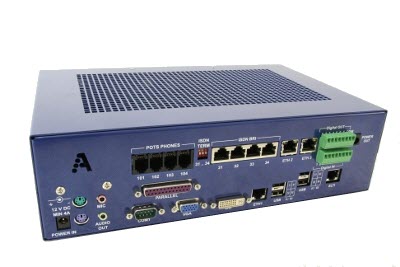

Micro Abilis is a non-expandable device equipped with:
CPU: 1.5 GHz
RAM: 256 MB DDR
BOOT DISK: CompactFlash 128MB
3 Ethernet 10/100
7 Digital Input and 7 Digital Output for building automation
purposes
1 RS-232 port
Power out connector useful to supply UMTS BOX2 or POTSBOX.
Table 2.1.
| Led | Meaning | State |
|---|
LIVE AUX | Abilis Status Not used | LIVE and AUX leds flashing:
startup LIVE led flashing (1s ON - 1s OFF): Abilis
status is ok AUX led: not used |
2.6.2. Physical and electrical specifications
Dimensions[mm]: 305x195x90;
Weight:2,9 Kg;
Power supply:+12V DC/5A, 60W.
