Abilis has been conceived as a modular system to allow a number of possible configurations.
Every Abilis system is supplied with technical documents:
Status of the software configuration (ready to use, to be configured…).
Ports numeration.
Connection scheme to the existing lines or machines.
Local set ups (IP configurations, ISDN lines configuration).

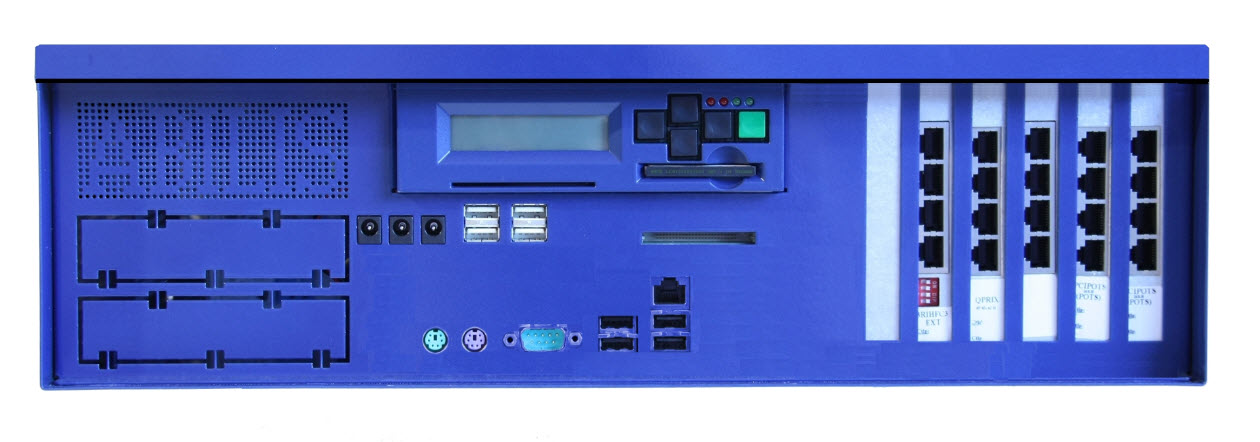

The connections usually are made on the Abilis rear panel. The chart below shows the different ports and their connection possibilities:
Table 3.1. Port numbering
| Port Number | Description |
|---|---|
| 1 : 28 | CTI Port on QPRI or PB22 or PB44 |
| 31 : 94 | CTI Port on BRI4 or BRI8 or BRI-HFC4 or BRI-HFC8 or PB22 or PB44 |
| 101 : 484 | (FXS) analog port on POTS or POTSBOX |
| 501 : 532 | CTI port on UMTS Box |
| ETH-x | Fast Ethernet “x” or GigaEthernet “x” |
| SYNC-1 : SYNC-16 | Synchronous ports from 1 to 16 on ESB2 |
| |  | |
