 | Chapter 13. IOBOX |  |
| 13.1. Analog and digital I/O Overview | ||
|---|---|---|
| | Chapter 13. IOBOX | |
From rel 7-5-0 added a new web application that permits the handling of analog and digital I/O made available with the following hardware:
MFIO embedded in Microabilis-C3
IOBOX
The application permits:
use of .jpg, .png, .gif, .bmp images as background.
a visual creation of maps (up to 10) and the placement on the map of indicators and actuators.
drive toggle or pulse output just by clicking on the icon
"by user" access rights to the maps, and different rights for design and for control.
The urls used by IO are:
/sys/io : main page
/sys/io/control/map<X> : control maps , where <X> is the map number between 1 and 10
/sys/io/design/map<X> : design maps , where <X> is the map number between 1 and 10
real-time indication of states and values of the monitored I/O
configurable labels
javascript required (recent version of Firefox, Chrome, Safari, Opera, IE 7/8/9)

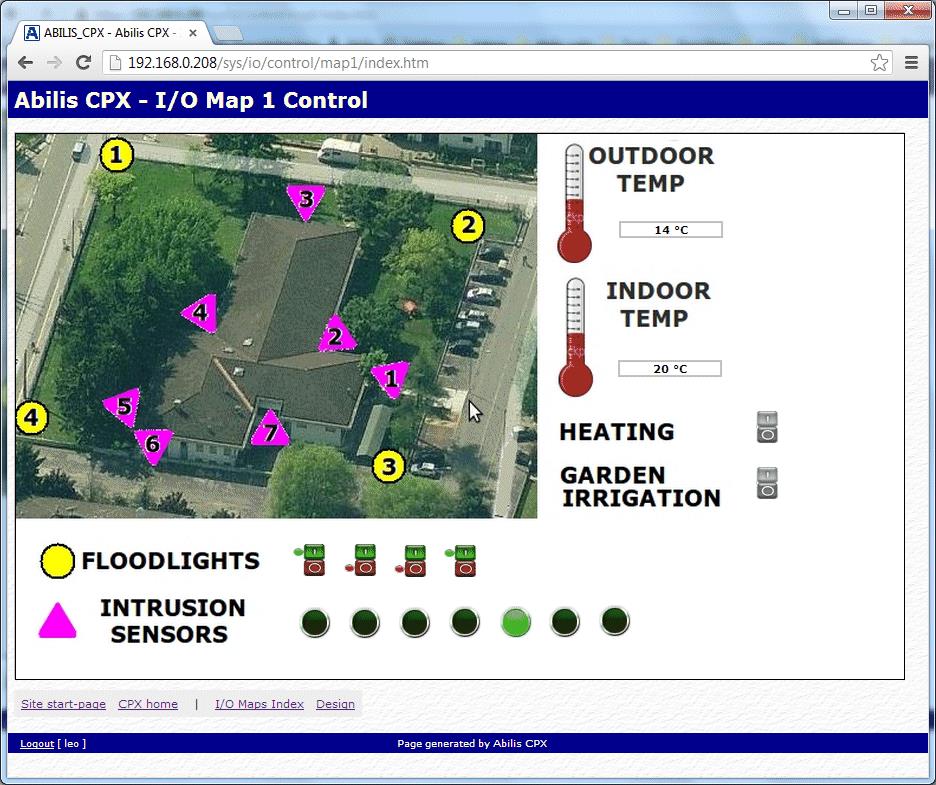

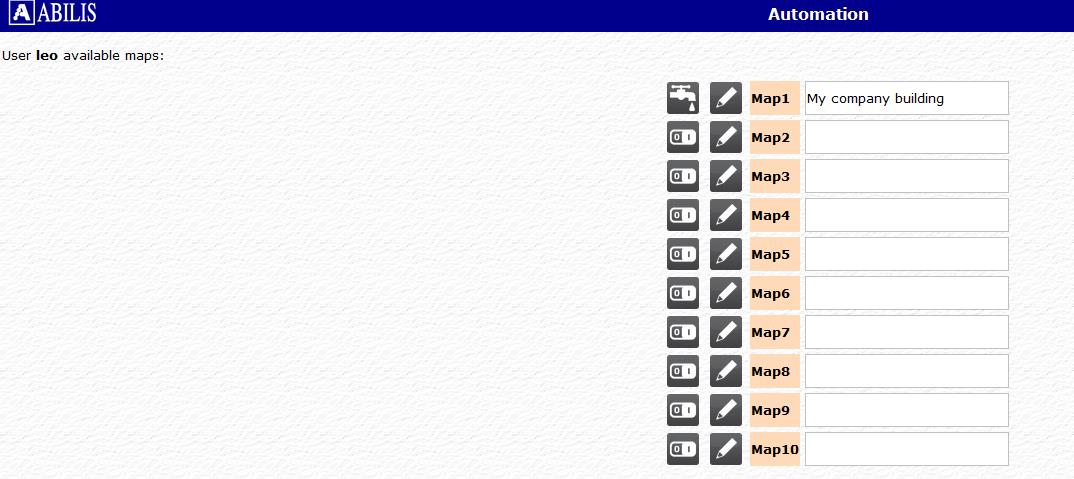

See below a couple of example screenshots.
Software Resource Gpio
From rel 7-5-0 added handling of analog inputs values.
Analog signals are digitalized by ADC converters present in the interface hardware. The numerical value is read by Abilis and converted to the measure unit by means of the analog input configuration parameters:
UNITMeasure unit
MINThe lowest value, in measure unit, to be assigned to DAC value 0.
MAXThe highest value, in measure unit, to be assigned to DAC value 1023.
UPDWhen monitored via GPIOPC protocol this is the difference that must occur between current value and previously read value in order to deliver the new value to the GPIOPC client.
When analog inputs are monitored via GPIOPC two more parameters are involved:
UPDDifference that must occur between current value and previously read value in order to deliver the new value to the GPIOPC client.
POOLInterval between values read.
Added handling of analog inputs alarms.
The measured analog values are verified against thresholds in order to generate LOW and HIGH alarms.
Analog alarms parameters:
UNITMeasure unit
ALM-LOThe value, in measure unit, below which the ALARM LOW is triggered.
ALM-HIThe value, in measure unit, above which the ALARM HIGH is triggered.
HISTHysteresis for ALM-LO and ALM-HI for returning to NORMAL state.
Added PULSE mode for digital output.
Three parameters have been added:
MODETo choose between VALUE operational mode and PULSE.
PULSE-TThe duration of the pulse, in milliseconds.
PULSE-GAPThe minimal guaranteed pause between two pulses, in milliseconds.
Configuration example.
[13:30:35] ABILIS_CPX:d p gpioRES:Gpio-1 - Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------- ------------------------------------------------------------------------ Run DESCR: LOG:NO ACT:YES LIVE-EXPIRY:10 -------+-------------------- Digital Input lines ----------------------- D-IN: | [DESCR:] -------+---------------------------------------------------------------- 1 | Input 1 2 | Input 2 3 | Input 3 4 | Input 4 5 | Input 5 6 | Input 6 7 | Input 7 8 | Input 8 -------+-------------------- Digital Output lines ---------------------- D-OUT: | [DESCR:] | MODE: PULSE-T: PULSE-GAP: -------+---------------------------------------------------------------- 1 | Output 1 2 | Output 2 3 | Output 3 4 | Output 4 | PULSE 500 250 -------+-------------------- Analog Input lines ------------------------ A-IN: | [DESCR:] | UNIT: MIN: MAX: ALM-LO: ALM-HI: HIST: UPD: POLL: -------+---------------------------------------------------------------- 1 | Analog 2 | C 20 21 20 21 5.0 1.0 1.0 2 | C -10 40 0.0 40 5.0 1.0 1.0 ------------------------------------------------------------------------ [13:30:36] ABILIS_CPX:d d gpioRES:Gpio-1 -------------------------------------------------------------------- STATE:UP USB-STATE:CONNECTED - Digital Input Lines State -------------------------------------------- 1..16| off off off off off off off off . . . . . . . . 17..32| . . . . . . . . . . . . . . . . 33..48| . . . . . . . . . . . . . . . . 49..64| . . . . . . . . . . . . . . . . ------------------------------------------------------------------------ - Digital Output Lines State ------------------------------------------- 1..16| off off off off . . . . . . . . . . . . 17..32| . . . . . . . . . . . . . . . . 33..48| . . . . . . . . . . . . . . . . 49..64| . . . . . . . . . . . . . . . . ------------------------------------------------------------------------ - Analog Input Lines --------------------------------------------------- | State Value Unit ADC | State Value Unit ADC ------+--------------------------------+-------------------------------- 1.. 2| LOW 20 C 1 | NORMAL 14 C 495 3.. 4| . . . . | . . . . 5.. 6| . . . . | . . . . 7.. 8| . . . . | . . . . 9..10| . . . . | . . . . 11..12| . . . . | . . . . 13..14| . . . . | . . . . 15..16| . . . . | . . . . ------------------------------------------------------------------------
![[Important]](../images/important.png) | Important |
|---|---|
The D P GPIO command shows only the lines which have been configured with a description or that have the parameters different from the default. To enforce the view of all theoretically possible 64 digital inputs, 64 digital outputs, 16 analog inputs, use D PE GPIO command. |
Software Resource Mfio (Microabilis-C3)
From rel 7-5-0 added PULSE mode for digital output.
Three parameters have been added:
MODETo choose between VALUE operational mode and PULSE.
PULSE-TThe duration of the pulse, in milliseconds.
PULSE-GAPThe minimal guaranteed pause between two pulses, in milliseconds.
The IOBOX provides 8 digital inputs, 4 digital output and 2 analog inputs.
The Mfio embedded in Microabilis-C3 provides 7 digital Inputs and 7 Digital Outputs.
Add the GPIO device and GPIOPC resource with following commands:
[11:43:32] ABILIS_CPX:_a dev:gpio-1COMMAND EXECUTED [11:43:33] ABILIS_CPX:_a res:gpiopc-1
Add the MFIO resource with following commands:
[12:34:17] ABILIS_CPX:a res:mfio![[Caution]](../images/caution.png) | Caution |
|---|---|
Remember to save the configuration using save conf and an Abilis restart are required (i.e. with warm start command). |
The GPIO and GPIOPC resources must be activated with the commands:
[09:43:22] ABILIS_CPX:_s p gpiopc-1 act:yesCOMMAND EXECUTED [09:52:19] CPX_ANTEK-PBX:_d p gpiopcRES:GpioPc -------------------------------------------------------------------- Run DESCR:General_Purpose_I/O_Panel_Collector LOG:NO ACT:YES maxclients:10 XML-TOUT:60 XML-MIN-DELAY:50 - I/O Service ---------------------------------------------------------- wdir:C:\APP\IO\ [10:10:53] ABILIS_CPX:_d p gpio-1RES:Gpio-1 -------------------------------------------------------------------- Run DESCR: LOG:NO ACT:YES LIVE-EXPIRY:10 -------+-------------------- Digital Input lines ----------------------- D-IN: | [DESCR:] -------+---------------------------------------------------------------- 1 | 1 2 | 2 3 | 3 4 | 4 5 | 7 6 | 5 7 | 6 -------+-------------------- Digital Output lines ---------------------- D-OUT: | [DESCR:] | MODE: PULSE-T: PULSE-GAP: -------+---------------------------------------------------------------- 1 | 1 2 | 2 3 | 3 4 | 4 -------+-------------------- Analog Input lines ------------------------ A-IN: | [DESCR:] | UNIT: MIN: MAX: ALM-LO: ALM-HI: HIST: UPD: POLL: -------+---------------------------------------------------------------- 1 | C 20 21 20 21 5.0 1.0 1.0 2 | C -10 40 0.0 40 5.0 1.0 1.0 ------------------------------------------------------------------------
Corresponding command for MFIO:
[12:38:18] ABILIS_CPX:s p mfio act:yesCOMMAND EXECUTED [12:38:27] ABILIS_CPX:d p mfioRES:MfIo ---------------------------------------------------------------------- Run DESCR:Abilis_Multi_Function_IO_Interface LOG:DS ACT:YES -------+-------------------- Digital Input lines ----------------------- D-IN: | [DESCR:] -------+---------------------------------------------------------------- -------+-------------------- Digital Output lines ---------------------- D-OUT: | [DESCR:] | MODE: PULSE-T: PULSE-GAP: -------+---------------------------------------------------------------- 1 | Gate# | PULSE 500 250 2 | Test ------------------------------------------------------------------------
Use the following command to display resource parameters; the command d p gpio-1 ? displays the meaning of all parameters.
[10:43:32] ABILIS_CPX:_d p gpio-1 ?
Gpio resource parameter(s):
DESCR: Resource description. From 0 up to 79 Alphanumeric extended
characters. Case is preserved. Spaces are allowed.
Strings holding spaces must be written between quotation
marks (E.g.: "str1 str2")
LOG: State changes log and alarm generation [NO, D, S, A, L, T, ALL] [+E]
(D: Debug Log; S: System Log; A: Alarm view; L: Local audible alarm;
T: SNMP traps; +E: Extended Log of state changes, see ref. manual)
ACT: Operation activation [NO, YES]
LIVE-EXPIRY: Expiry timeout programmed to GPIO device [10..600 sec]
---------- Digital Input lines ------------------------------------------------
D-IN: Digital Input Line identifier [1..64]
DESCR: Description of Digital Input Line.
From 0 up to 60 characters. Case is preserved. Spaces are allowed.
Strings holding spaces must be written between quotation marks
(E.g.: "str1 str2")
---------- Digital Output lines -----------------------------------------------
D-OUT: Digital output Line identifier [1..64]
DESCR: Description of Digital Output Line.
From 0 up to 60 characters. Case is preserved. Spaces are allowed.
Strings holding spaces must be written between quotation marks
(E.g.: "str1 str2")
MODE: Operatinal mode [VALUE, PULSE]
PULSE-T: Duration of ON pulse [1..4294967295 ms] <Only for MODE:PULSE>
PULSE-GAP: Minimum OFF time after ON pulse [1..65535 ms] <Only for MODE:PULSE>
---------- Analog Input lines -------------------------------------------------
A-IN: Analog Input Line identifier [1..16]
DESCR: Description of Analog Input Line.
From 0 up to 60 characters. Case is preserved. Spaces are allowed.
Strings holding spaces must be written between quotation marks
(E.g.: "str1 str2")
UNIT: Unit of subsequent values. Empty or from 1 up to 8 characters
(e.g. kWh, J, Volts, m, km, miles, myunit). Case is preserved.
MIN: Value corresponding to 0x0000. It must be < MAX.
String representing a floating point number from -9999 to +9999.
From 1 up to 6 characters in ['+', '-', '0'..'9', '.'].
MAX: Value corresponding to 0x03FF. It must be > MIN.
String representing a floating point number from -9999 to +9999.
From 1 up to 6 characters in ['+', '-', '0'..'9', '.'].
ALM-LO: Low threshold for alarm. It must be < ALM-HI and >= MIN, autoadjust
against MIN.
String representing a floating point number from -9999 to +9999.
From 1 up to 6 characters in ['+', '-', '0'..'9', '.'].
ALM-HI: High threshold for alarm. It must be > ALM-LO and <= MAX, autoadjust
against MAX.
String representing a floating point number from -9999 to +9999.
From 1 up to 6 characters in ['+', '-', '0'..'9', '.'].
HIST: Hysteresis for ALM-LO and ALM-HI for returning to NORMAL state.
String representing a floating point number from -9999 to +9999.
From 1 up to 6 characters in ['+', '-', '0'..'9', '.'].
UPD: Difference that must occur between the last value delivered and the
current value read in order to make a new value delivery.
Absolute value, valid for positive and negative variations.
String representing a floating point number from -9999 to +9999.
From 1 up to 6 characters in ['+', '-', '0'..'9', '.'].
POLL: Polling period [0.1..300.0 sec] Corresponding command for MFIO:
[12:38:32] ABILIS_CPX:d p mfio ?
MfIo resource parameter(s):
DESCR: Resource description. From 0 up to 79 Alphanumeric extended
characters. Case is preserved. Spaces are allowed.
Strings holding spaces must be written between quotation
marks (E.g.: "str1 str2")
LOG: State changes log and alarm generation [NO, D, S, A, L, T, ALL] [+E]
(D: Debug Log; S: System Log; A: Alarm view; L: Local audible alarm;
T: SNMP traps; +E: Extended Log of state changes, see ref. manual)
ACT: Operation activation [NO, YES]
---------- Digital Input lines ------------------------------------------------
D-IN: Digital Input Line identifier [1..7]
DESCR: Description of Digital Input Line.
From 0 up to 60 characters. Case is preserved. Spaces are allowed.
Strings holding spaces must be written between quotation marks
(E.g.: "str1 str2")
---------- Digital Output lines -----------------------------------------------
D-OUT: Digital output Line identifier [1..7]
DESCR: Description of Digital Output Line.
From 0 up to 60 characters. Case is preserved. Spaces are allowed.
Strings holding spaces must be written between quotation marks
(E.g.: "str1 str2")
MODE: Operatinal mode [VALUE, PULSE]
PULSE-T: Duration of ON pulse [1..4294967295 ms] <Only for MODE:PULSE>
PULSE-GAP: Minimum OFF time after ON pulse [1..65535 ms] <Only for MODE:PULSE> | Caution |
|---|---|
To activate the changes made on the upper case parameters, execute the initialization command init res:gpio ( init res:mfio for MFIO); while to set act the changes made on the lowercase parameters a save conf and an Abilis restart are required (i.e. with warm start command). |
Example: to set a pulse of 500 ms on digital out number 1 to open the gate #1 type the following command:
[12:38:32] ABILIS_CPX:s p gpio-1 d-out:1 descr:Gate#1 mode:pulse pulse-t:500Corresponding command for MFIO:
[12:38:32] ABILIS_CPX:s p mfio d-out:1 descr:Gate#1 mode:pulse pulse-t:500Initialize the device and save the configuration with init res:gpio-1 ( init res:mfio for MFIO) and save conf.
[18:50:51] ABILIS_CPX:d p gpio-1
RES:Gpio-1 - Not Saved (SAVE CONF), Not Refreshed (INIT) ----------------------
------------------------------------------------------------------------
Run DESCR:
LOG:NO ACT:YES LIVE-EXPIRY:10
-------+-------------------- Digital Input lines -----------------------
D-IN: | [DESCR:]
-------+----------------------------------------------------------------
1 | 1
2 | 2
3 | 3
4 | 4
5 | 7
6 | 5
7 | 6
-------+-------------------- Digital Output lines ----------------------
D-OUT: | [DESCR:]
| MODE: PULSE-T: PULSE-GAP:
-------+----------------------------------------------------------------
1 | Gate#1
| PULSE 500 250
Corresponding command for MFIO:
[18:50:51] ABILIS_CPX:d p mfio
RES:MfIo ----------------------------------------------------------------------
Run DESCR:Abilis_Multi_Function_IO_Interface
LOG:DS ACT:YES
-------+-------------------- Digital Input lines -----------------------
D-IN: | [DESCR:]
-------+----------------------------------------------------------------
-------+-------------------- Digital Output lines ----------------------
D-OUT: | [DESCR:]
| MODE: PULSE-T: PULSE-GAP:
-------+----------------------------------------------------------------
1 | Gate#
| PULSE 500 250
------------------------------------------------------------------------The GPIO resource allows to view the state of each digital input/output line and to read values from analog inputs.
[13:44:42] ABILIS_CPX:d d gpio-1
RES:Gpio-1 --------------------------------------------------------------------
STATE:UP USB-STATE:CONNECTED
- Digital Input Lines State --------------------------------------------
1..16| off off off off off off off off . . . . . . . .
17..32| . . . . . . . . . . . . . . . .
33..48| . . . . . . . . . . . . . . . .
49..64| . . . . . . . . . . . . . . . .
------------------------------------------------------------------------
- Digital Output Lines State -------------------------------------------
1..16| off off off off . . . . . . . . . . . .
17..32| . . . . . . . . . . . . . . . .
33..48| . . . . . . . . . . . . . . . .
49..64| . . . . . . . . . . . . . . . .
------------------------------------------------------------------------
- Analog Input Lines ---------------------------------------------------
| State Value Unit ADC | State Value Unit ADC
------+--------------------------------+--------------------------------
1.. 2| LOW 0.0 % 1 | LOW 0.0 % 1
3.. 4| . . . . | . . . .
5.. 6| . . . . | . . . .
7.. 8| . . . . | . . . .
9..10| . . . . | . . . .
11..12| . . . . | . . . .
13..14| . . . . | . . . .
15..16| . . . . | . . . .
------------------------------------------------------------------------The MFIO resource allows to view the state of each digital input/output line.
[08:29:04] ABILIS_CPX:d d mfio
RES:MfIo ----------------------------------------------------------------------
Abilis_Multi_Function_IO_Interface
STATE:ACTIVE
- Digital Input Lines State --------------------------------------------
1..7| off off off off off off off
------------------------------------------------------------------------
- Digital Output Lines State -------------------------------------------
1..7| off off off off off off off
------------------------------------------------------------------------The GPIO resource permits to pilot the digitals outputs state typing the command:
[11:14:46] ABILIS_CPX:s s res:gpio-1 d-out:1 ON | OFF[19:03:43] ABILIS_CPX:s s res:gpio-1 d-out: ?S S RES:Gpio-nD-OUT:val ON|OFF Set status of Digital Output Line [ON, OFF] of the specified Gpio resource D-OUT: One value in the range [1..64] or a range of values 'xx-yy' or a list of values 'xx,yy,...' separated by ',' (comma) or "A" or "ALL".
Corresponding command for MFIO:
[11:14:46] ABILIS_CPX:s s res:mfio d-out:1 ON | OFF[19:03:43] ABILIS_CPX:s s res:mfio d-out: ?S S RES:Mfio-nD-OUT:val ON|OFF Set status of Digital Output Line [ON, OFF] of the specified Gpio resource D-OUT: One value in the range [1..64] or a range of values 'xx-yy' or a list of values 'xx,yy,...' separated by ',' (comma) or "A" or "ALL".
In case of Digital or Analog input variation is possible to activate alarms.
Example: send an e-mail if Digital Input 1 becomes ON
[19:06:49] ABILIS_CPX:d p alarmRES:Alarm --------------------------------------------------------------------- Run DESCR:Alarms_manager LOG:NO ACT:YES fifo-size:100 MAIL-FROM:SYS (AbilisCPX<AbilisCPX@abilis>) MAIL-RCPT:# MAIL-BODY:STANDARD SMS-SENDER:CP-PI SMS-CDO:# [19:06:49] ABILIS_CPX:a alarm id:2 enabled:yes res:gpio-1 action:mail io:d-in-1 monitor:on MAIL-RCPT:alarms@mydomain.com[19:32:28] CPX_ANTEK-PBX:_d alarm id:2------------------------------------------------------------------------------- ID: |[DESCR:] |ENABLED:|RES: |IO: |MONITOR: |ACTION: |MAIL-RCPT: |MAIL-RCPT-LIST: |MAIL-BODY: |SMS-CDO: |DISA-USER: |DISA-PIN: |DISA-SERVICE: |DISA-CDO: |DISA-CGO: ------------------------------------------------------------------------------- 2 YES Gpio-1 D-IN-1 ON MAIL - MAIL ------------------------------------------------------------------- alarms@mydomain.com # SYS -------------------------------------------------------------------------------
Corresponding command for MFIO:
[19:06:49] ABILIS_CPX:a alarm id:2 enabled:yes res:mfio action:mail io:d-in-1 monitor:on MAIL-RCPT:alarms@mydomain.com[19:32:28] CPX_ANTEK-PBX:_d alarm id:2------------------------------------------------------------------------------- ID: |[DESCR:] |ENABLED:|RES: |IO: |MONITOR: |ACTION: |MAIL-RCPT: |MAIL-RCPT-LIST: |MAIL-BODY: |SMS-CDO: |DISA-USER: |DISA-PIN: |DISA-SERVICE: |DISA-CDO: |DISA-CGO: ------------------------------------------------------------------------------- 2 YES Mfio D-IN-1 ON MAIL - MAIL ------------------------------------------------------------------- alarms@mydomain.com # SYS -------------------------------------------------------------------------------
To see the help online use the following command:
[19:06:49] ABILIS_CPX:a alarm id:2 res:gpio-1 action:mail ? monitor : io:
Alarm management rule parameter(s):
MONITOR: Alarm/event to be monitored [NONE, TRAP, ALARM-ON, ALARM-OFF,
ALARM-*, ON, OFF, LOW, NORMAL, HIGH, *]
'TRAP', 'ALARM-ON', 'ALARM-OFF' are allowed only for IO equal to #;
'TRAP' is allowed only for ACTION not equal to DISA-CB;
'ON', 'OFF', '*' are allowed only for Digital lines;
'LOW', 'NORMAL', 'HIGH', '*' are allowed only for Analog lines.
IO: Input/output line for which the alarm/event is monitored. "#" or
- "D-IN-n", where 'n' can be
- for GPIO Digital IN line, [1..64, *];
- for MFIO Digital IN line, [1..7, *];
- "D-OUT-n", where 'n' can be
- for GPIO Digital OUT line, [1..64, *];
- for MFIO Digital OUT line, [1..7, *];
- "A-IN-n", where 'n' can be [1..16, *], for GPIO Analog IN line;
- "A-OUT-n", where 'n' can be [1..16, *], for GPIO Analog OUT line;
<Only for Gpio/MfIo resources>![[Tip]](../images/tip.png) | Tip |
|---|---|
Others information about Alarm resource are available in the Section 32.1, “ALARM resource”. Information about management I/O via WEB Chapter 66, Automation. |
| |  | |
| Chapter 13. IOBOX |  | Chapter 14. RJS - RJ Switch |
