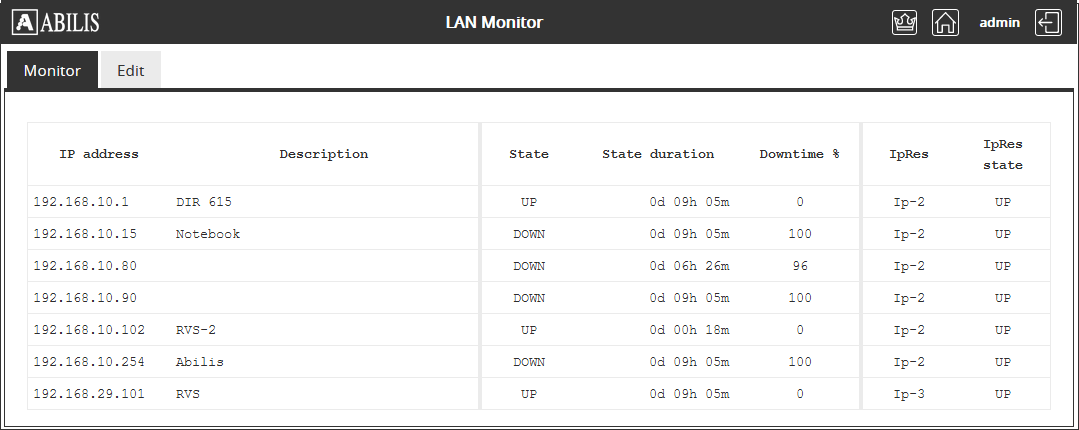

Lan monitor service monitors the attached LAN devices.

This service currently works only for devices on locally attached LAN, LAN-PT, VIRTUAL over LAN/LAN-PT, using ARP polling.

Go to Abilis Home page, log-in, go to the Administration page and select the Lan monitor icon.

	Important
	If LAN monitor icon is not active please activate the IPMon resource.

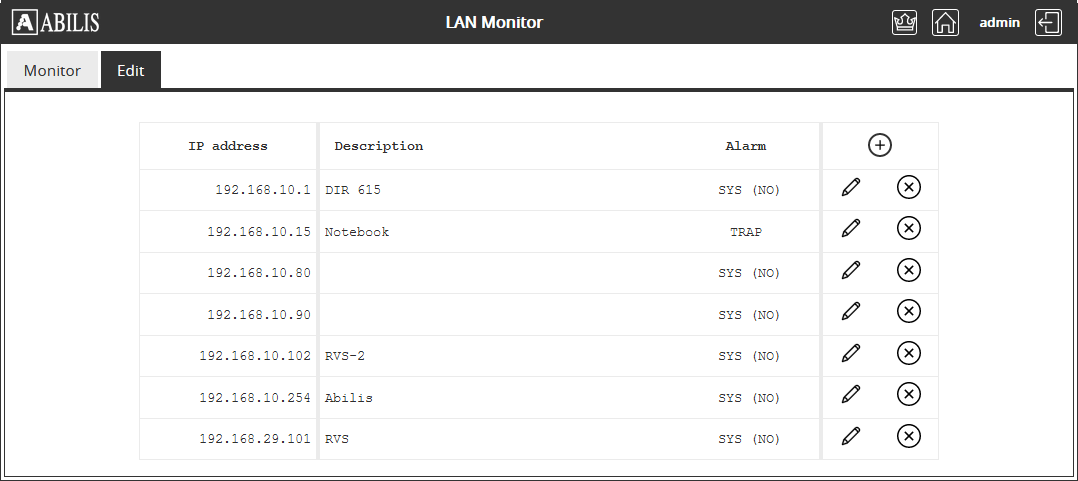

To add another device, click the Edit tab.

Opens a pop-up windows, where users can see available devices on the LAN.

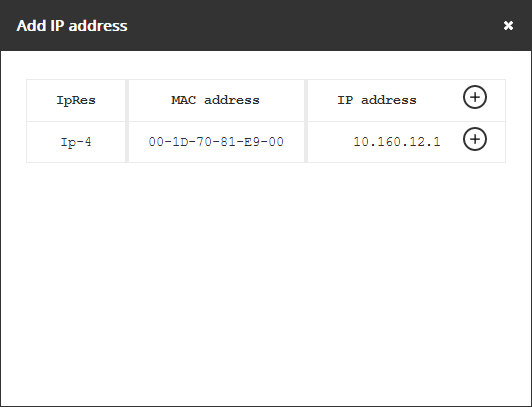

Clicking button will open a pop-up windows, where users can add new device to monitor:

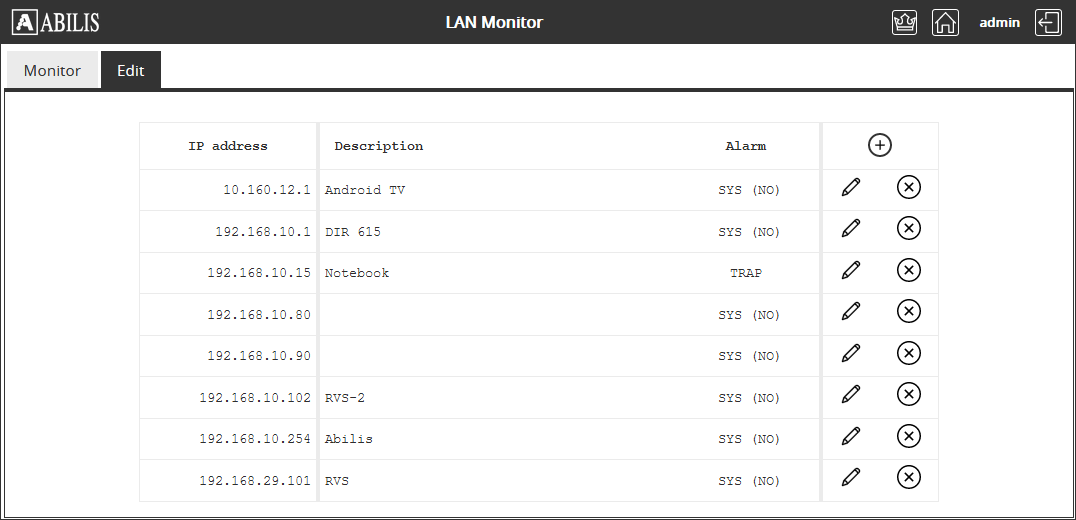

Click OK. Now the device is added to monitor.

This button opens a pop-up window, where users can edit the selected device:
