2.1. Mini Abilis J4125

2.1. Mini Abilis J4125
	Chapter 2. Abilis hardware

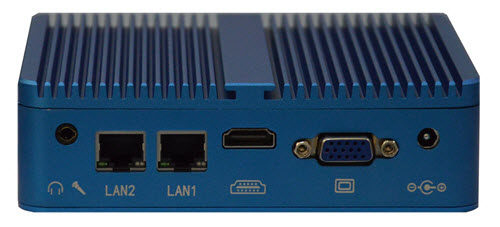

Figure 2.1. Mini Abilis J4125

Mini Abilis J4125 is a non-expandable device equipped with:

Intel(R) Celeron(R) J4125 CPU @ 2.00GHz;
4096 MB RAM;
32GB SSD;
4 USB ports;
Note
2 USB ports are USB 3.0 and are colored blue to distinguish them from USB 2.0 since they look the same.
2 GigaEthernet;
1 Combo Audio Jack 3.5mm.
Tip
The audio jack is used for APOTS.

	Note
2 USB ports are USB 3.0 and are colored blue to distinguish them from USB 2.0 since they look the same.

	Tip
The audio jack is used for APOTS.

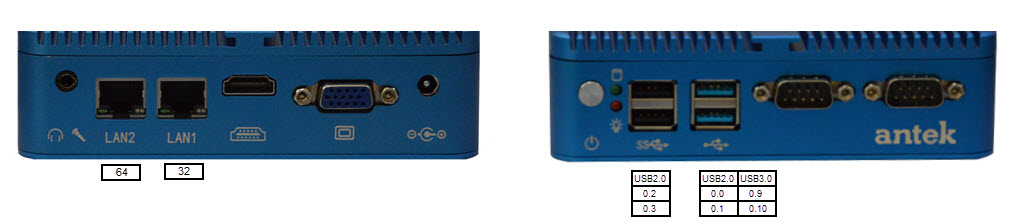

Figure 2.2. The numbering of the physical ports

Dimensions[mm]: 135x124x40;

Weight: 1 Kg;

Power supply: 110-230VAC, 18W.
