2.2. Mini Abilis J4125 4xGBE

2.2. Mini Abilis J4125 4xGBE
	Chapter 2. Abilis hardware

	Important
	The Mini Abilis J4125 4xGBE is supported starting from Abilis firmware version 8.11.7.

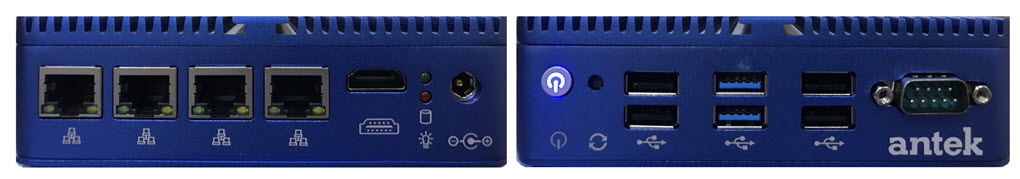

Figure 2.3. Mini Abilis J4125 4xGBE

Mini Abilis J4125 is a non-expandable device equipped with:

Intel(R) Celeron(R) J4125 CPU @ 2.00GHz;
4096 MB RAM;
32GB SSD;
6 USB ports;
Note
2 USB ports are USB 3.0 and are colored blue to distinguish them from USB 2.0 since they look the same.
4 GigaEthernet;

	Note
2 USB ports are USB 3.0 and are colored blue to distinguish them from USB 2.0 since they look the same.

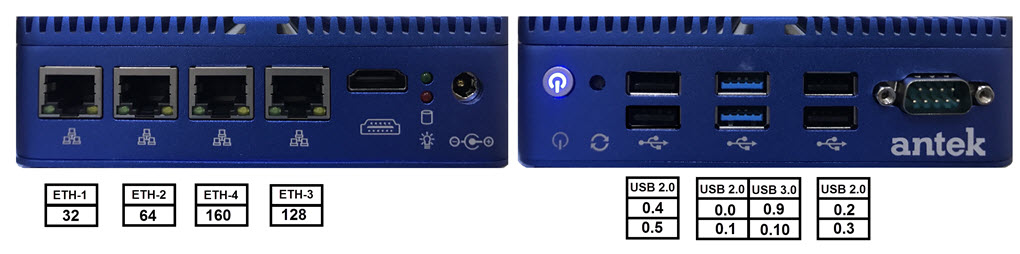

Figure 2.4. The numbering of the physical ports

Dimensions[mm]: 135x124x40;

Weight: 1 Kg;

Power supply: 110-230VAC, 18W.
