	Chapter 19. APOTS

APOTS subsystem is a part of CTISYS providing integration of audio-in/audio-out device of M/B (for example J4125) or attached USB AUDIO device to Abilis voice system.

either as audio-in/audio-out of Abilis softphone (PcPhone);
public address with connected microphone/loudspeakers.

There are several necessary configuration steps to have APOTS subsystem working.

19.1.1. AUDIOUSB device

AUDIOUSB device configuration must be added to configuration to be bound with USB AUDIO device:

[12:22:24] ABILIS_CPX:a dev:audiousb-1

COMMAND EXECUTED

It then appears in the listing of devices:

[12:22:24] ABILIS_CPX:d dev

--------------- Active Watchdog and MFxx Resources (read only): ---------------
Dev         Run Physical Res                                 SlotId  Addr  Irq
-------------------------------------------------------------------------------
MF          Yes Mf . . . . . . . . . . . . . . . . . . . . .     75   PCI ( 12)

------------------ Active PCI Devices and Physical Resources: -----------------
Dev         Run Physical Res or CTI Port                     SlotId  Addr  Irq
-------------------------------------------------------------------------------
ASY-1       Yes Async-1  . . . . . . . . . . . . . . . . . .      -   3F8    4
ETH-1       Yes Eth-1  . . . . . . . . . . . . . . . . . . .     18   PCI ( 15)
ETH-2       Yes Eth-2  . . . . . . . . . . . . . . . . . . .     72   PCI ( 15)
ETH-3       Yes Eth-3  . . . . . . . . . . . . . . . . . . .     73   PCI ( 11)
BSE-1       Yes 31..38, 101..140 . . . . . . . . . . . . . .     74   PCI (  5)

------------------ Active USB Devices and Physical Resources: -----------------
Dev         Run Con Physical Res or CTI Port               USBPORTID
-------------------------------------------------------------------------------
AUDIOUSB-1   No No . . . . . . . . . . . . . . . . . . . . NONE

19.1.2. APOTS device

APOTS device must be added to configuration to be bound with AUDIOUSB and CTISYS:

[12:22:25] ABILIS_CPX:a dev:apots-1

COMMAND EXECUTED

It then appears in the listing of devices:

[12:22:25] ABILIS_CPX:d dev

--------------- Active Watchdog and MFxx Resources (read only): ---------------
Dev         Run Physical Res                                 SlotId  Addr  Irq
-------------------------------------------------------------------------------
MF          Yes Mf . . . . . . . . . . . . . . . . . . . . .     75   PCI ( 12)

------------------ Active PCI Devices and Physical Resources: -----------------
Dev         Run Physical Res or CTI Port                     SlotId  Addr  Irq
-------------------------------------------------------------------------------
ASY-1       Yes Async-1  . . . . . . . . . . . . . . . . . .      -   3F8    4
ETH-1       Yes Eth-1  . . . . . . . . . . . . . . . . . . .     18   PCI ( 15)
ETH-2       Yes Eth-2  . . . . . . . . . . . . . . . . . . .     72   PCI ( 15)
ETH-3       Yes Eth-3  . . . . . . . . . . . . . . . . . . .     73   PCI ( 11)
APOTS-1      No 491  . . . . . . . . . . . . . . . . . . . .      -     - (  -)
BSE-1       Yes 31..38, 101..140 . . . . . . . . . . . . . .     74   PCI (  5)

------------------ Active USB Devices and Physical Resources: -----------------
Dev         Run Con Physical Res or CTI Port               USBPORTID
-------------------------------------------------------------------------------
AUDIOUSB-1   No No . . . . . . . . . . . . . . . . . . . . NONE

	Warning
	It's needed to save the configuration (use the command save conf) and restart the system (use the command warm start).

19.1.3. CTI APOTS port configuration

APOTS port (CTIP:491) needs to have an assigned number to be used as a part of PBX port group (98 must be replaced by required number):

[12:50:58] ABILIS_CPX:s p ctip:491 num:98

COMMAND EXECUTED

Add a user:

[12:51:58] ABILIS_CPX:a user:aphone pwd:aphonepwd

COMMAND EXECUTED

Configure the OPC monitored service.

[12:51:58] ABILIS_CPX:s user:aphone opc-monitor:ctip

COMMAND EXECUTED

Caution

OPC requires SoftPBX licence.

It is necessary to activate OPC subsystem to let our soft-phone solution work.

[12:51:58] ABILIS_CPX:a res:opc

COMMAND EXECUTED

	Warning
	It's needed to save the configuration (use the command save conf) and restart the system (use the command warm start).

Assigning the user for CTI port 491.

[12:50:58] ABILIS_CPX:s user:apots ctip:491

COMMAND EXECUTED

	Note
	The APOTS have the same behavior as the POTS.

[15:25:44] ABILIS_CPX:d p ctip:491

CTIP:491 - Not Saved (SAVE CONF), Not Refreshed (INIT) ------------------------
Act     DESCR:
Run     card:APOTS-1<1>                 USER:aphone
        OPSTATE:UP        LOG:NO                               TYPE:USER
        signalling:APOTS                                       SS:YES
        DEVICE:HEADSET
        NUM:98                          ADDRBOOK-NUM:NUM

	Tip
	The “Not Saved (SAVE CONF)” message is displayed every time the configuration is modified but not saved with the save conf command. The “Not Refreshed (INIT)” message is displayed every time the port configuration is modified but not refreshed with the init ctisys command. These messages will disappear after save conf or init ctisys commands.

19.1.4. CTI Routing configuration

Add a CTI routing for incoming calls:

[12:55:58] ABILIS_CPX:a ctir pr:0 poi:pbx sr:* gi:G0 out:491 cdi:98 sp:64000 descr:Incoming_calls

COMMAND EXECUTED

Add a CTI routing for outgoing calls to route calls to a remote cluster (for example:site2):

[12:55:58] ABILIS_CPX:a ctir pr:1 poi:491 out:site2 cdi:0?* sp:64000 descr:Outgoing_calls

COMMAND EXECUTED

Type the following command to view CTIR Routings:

[16:02:05] ABILIS_CPX:d ctir

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Last change: 16/08/2022 16:02:05

---+------+-----------------+---------+--------------------+--------------------
PR |[DESCR]
   |BCI   |POI |SR      |GI |OUT      |CDI                 |CDO
ACT|NEXT        |LAST       |EEC |T301|CGI                 |CGO
EDT|SP    |SC   |DJ   |MJ   |FMDJ|FMMJ|SDI                 |SDO
   |SPOUT |SCOUT|DJOUT|MJOUT|LCS |LCST|SGI                 |SGO
   |                        |BCO      |RGI                 |RGO
   |FMRLY |FAXSP|MODSP|FMLVL|ECM |UDT |IG  |OG  |SG        |DL  |DH
   |CODERS
   |CODERSOUT
   |TI1 .. TI5
--------------------------------------------------------------------------------
0   [Incoming_calls]
    VOICE  PBX  *        G0  491       98                   *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------
1   [Outgoing_calls]
    VOICE  491  #        #   site2     0?*                  *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *

	Warning
	Changes made on the CTI routing table aren't immediately active. To activate them, execute the initialization command init ctir.

	Note
	For more examples, see CTIR Routings.

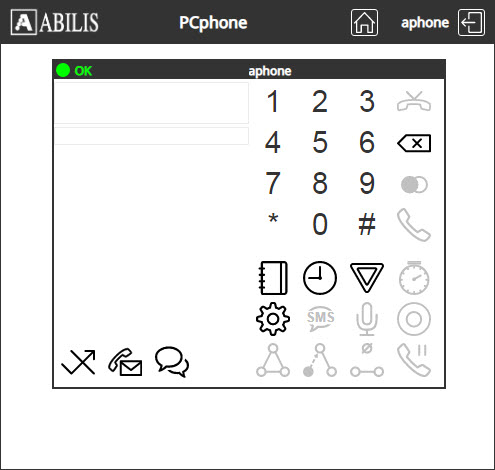

19.1.5. Abilis softphone (PcPhone)

APOTS uses PCphone web interface. No requirements are necessary for use with APOTS. Go to PCphone page http://192.168.1.1/sys/pcphone/index.htm (the IP is default, in your case it may differ) insert User name and Password previously created.
