72.11. Routings

This section allows to add, remove and modify the CTI routings.

[Caution]Caution

Generally the access to this section is reserved for users with administrator's rights.

By default, the anonymous access is disabled; add the path in the HTTP Virtual Paths Access Rights Table for httpuser.

[11:26:29] ABILIS_CPX:a http rights path:/sys/admin/cti/rout/ user:httpuser

COMMAND EXECUTED

[11:27:04] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
...
-------------------------------------------------------------------------------
16 /sys/admin/cti/rout/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
...

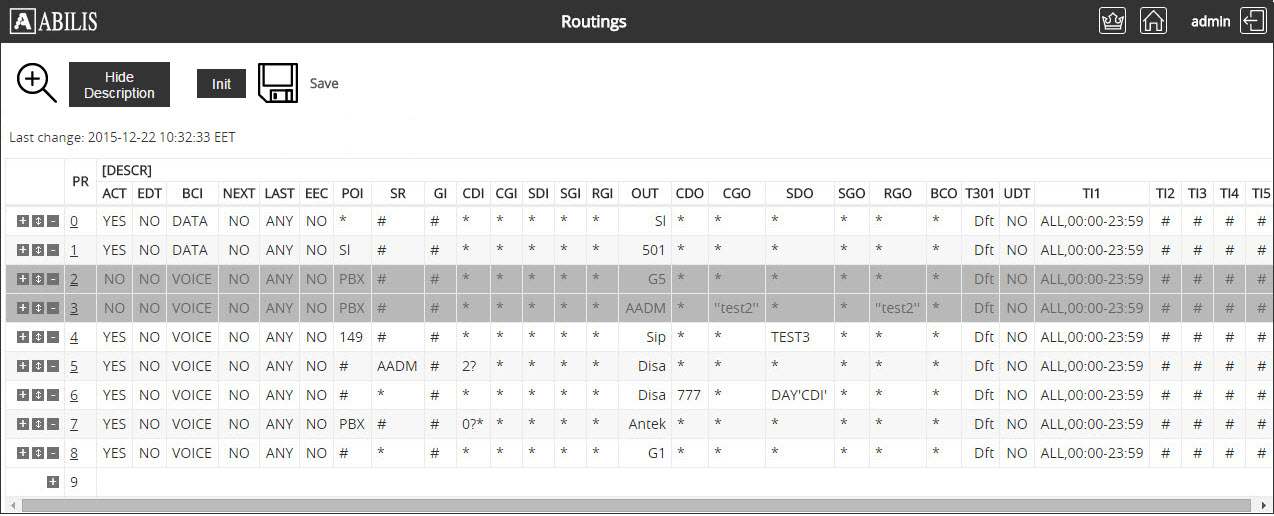

Click on Routings to view a list of configured routings.

[Tip]Tip

Interesting parts: Section 58.5, “CTI Router Overview” (CP commands & parameters description)

72.11.1. Example of routing creation

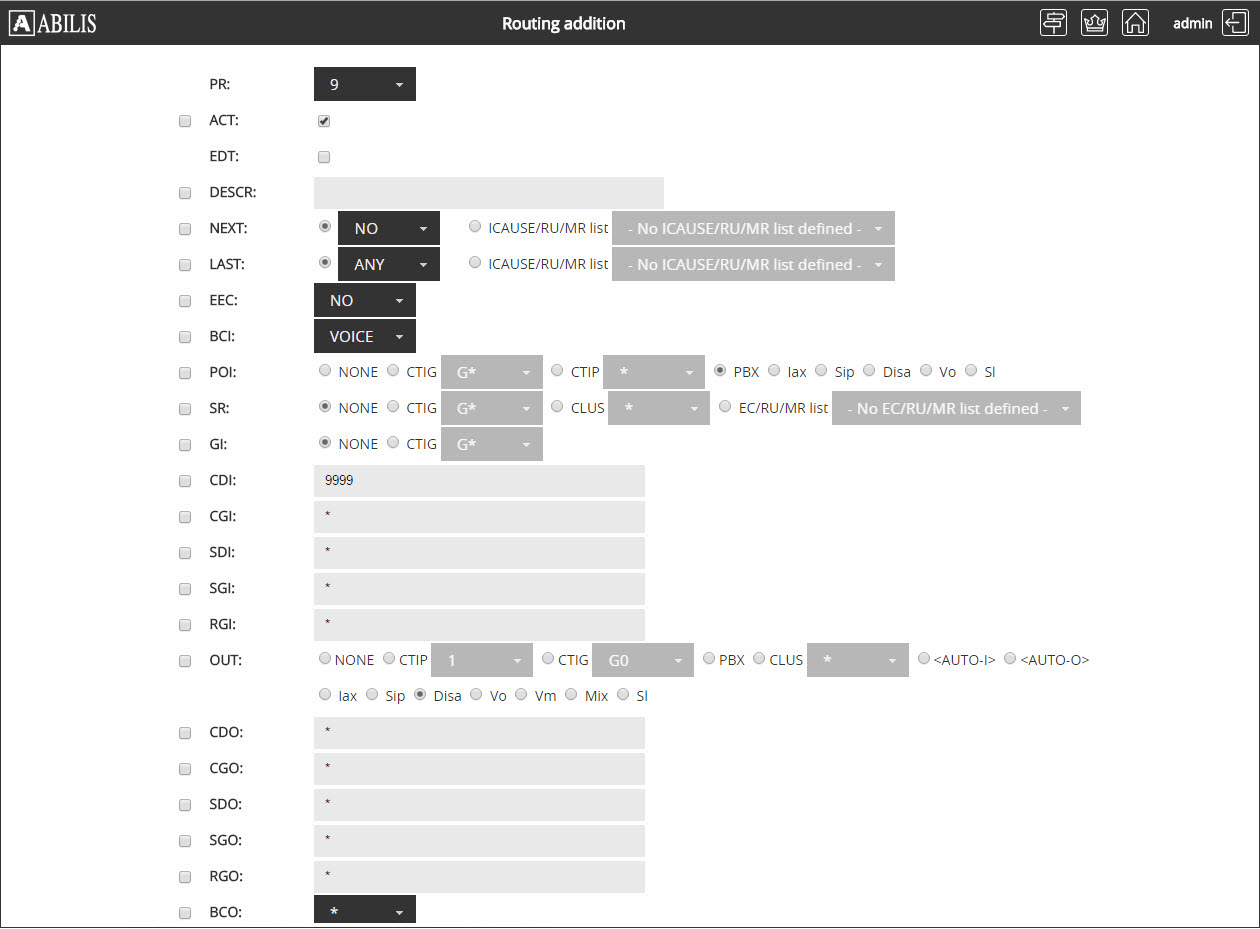

Click to add a new routing. The following page will be displayed:

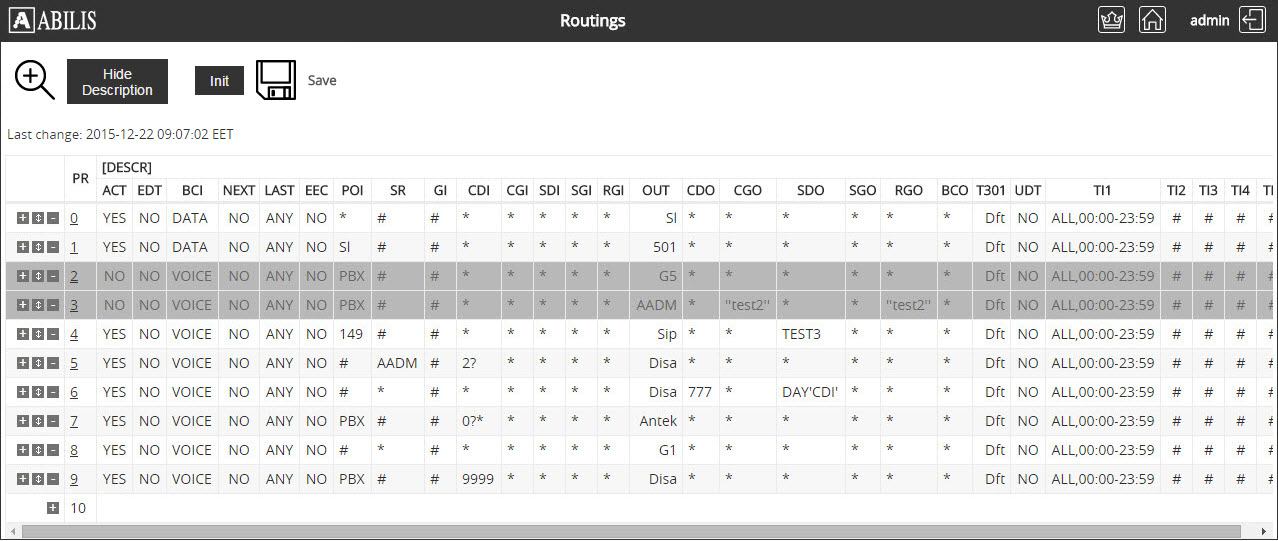

Fill the module as you want. If it's checked, the checkbox at the left of each parameter allows the users to modify it. Click Save to add the route. Click OK. The new rule has been added.

[Tip]Tip

Remember to click on Init to apply the changes at the running configuration e click on Save to save it.

72.11.2. Modify a routing

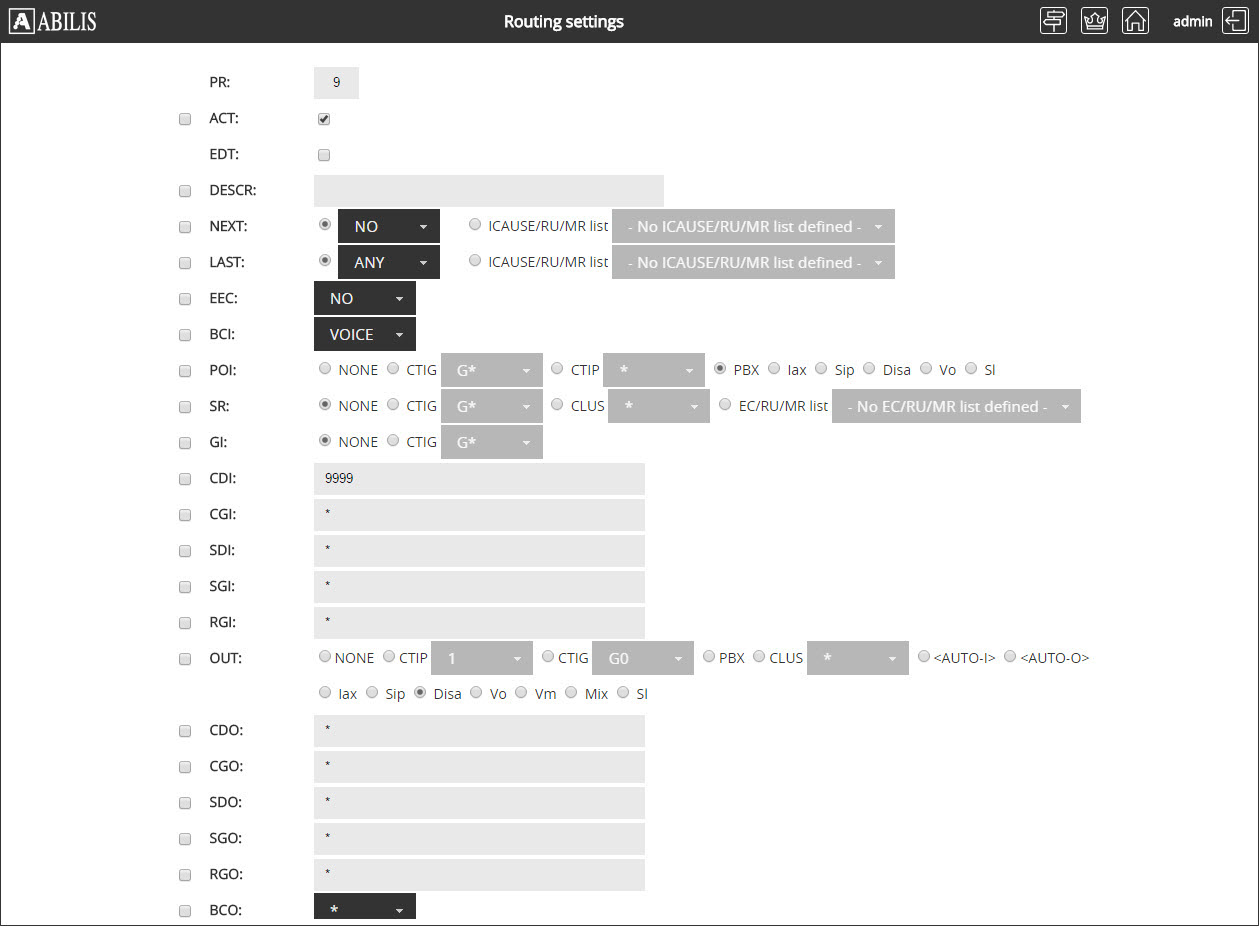

To modify a routing, click on his priority number.

Click Save to modify the route.

72.11.3. Change priority

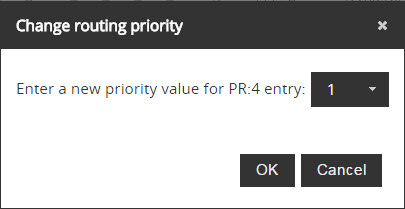

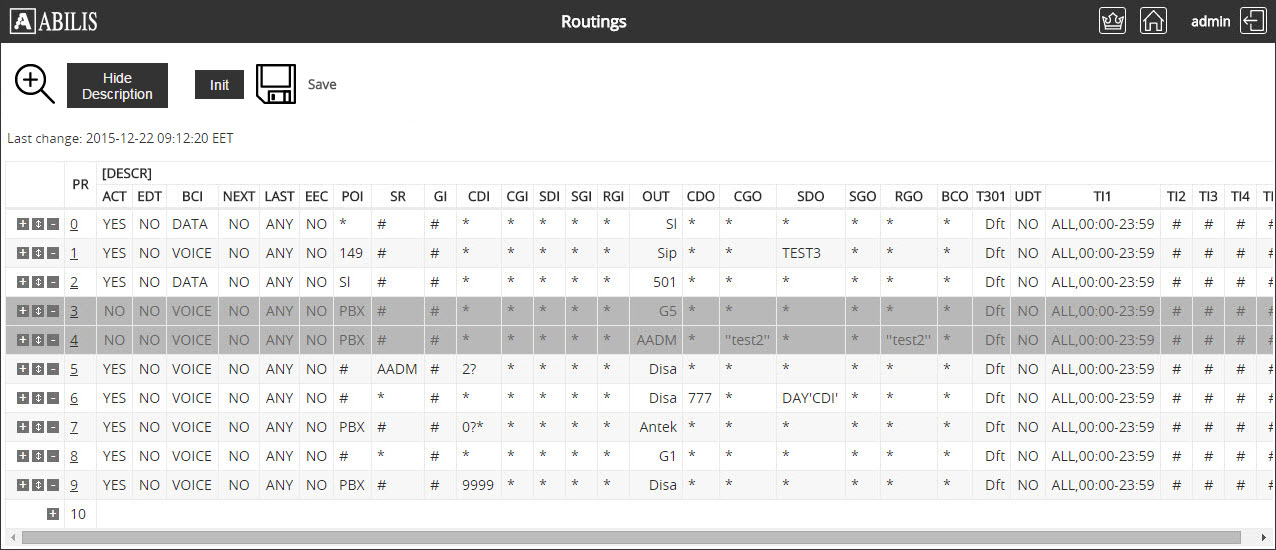

Click to change the priority of a rule. The following page is displayed.

Select the new prority and click Ok.

72.11.4. Example of routing deletion

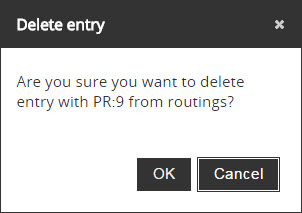

Click to remove a route

Click Ok to confirm.
