81.1. I/O Management via WEB

To enable the access to the web interface follow the chapters Part V, “Web interface” of Abilis Tutorial.

The HTTP rights path for Automation is /sys/io/.

[Important]Important

Remember to add "write permissions" to can edit Automation maps, please see Section 45.2.3, “HTTP Virtual Paths Access Rights Table”.

[Tip]Tip

Interesting chapters:

Section 67.2, “Add http rights”;

Section 72.1.7, “Example - How to give the http rights to a user through web interface”.

[Warning]Warning

If this section isn't active, please refer to Section 20.3, “Activating IOBOX devices”.

[Note]Note

IOHUB resource is required to enable web sections: Automation and Automation Log.

From Abilis Start Page the user can click on Automation Icon to reach the maps page.

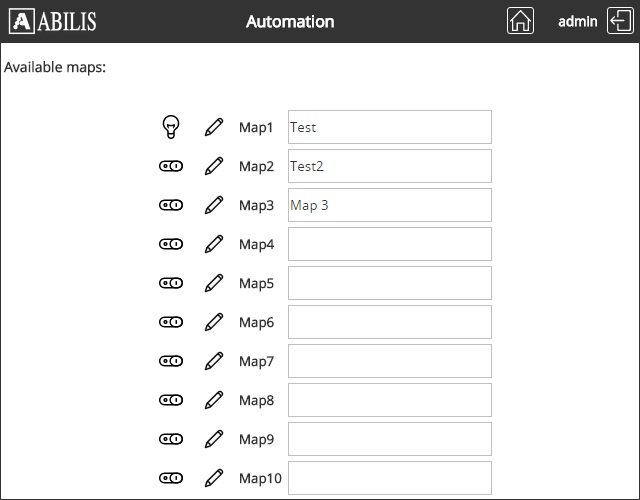

Figure 81.1. Automation Map

Automation Map

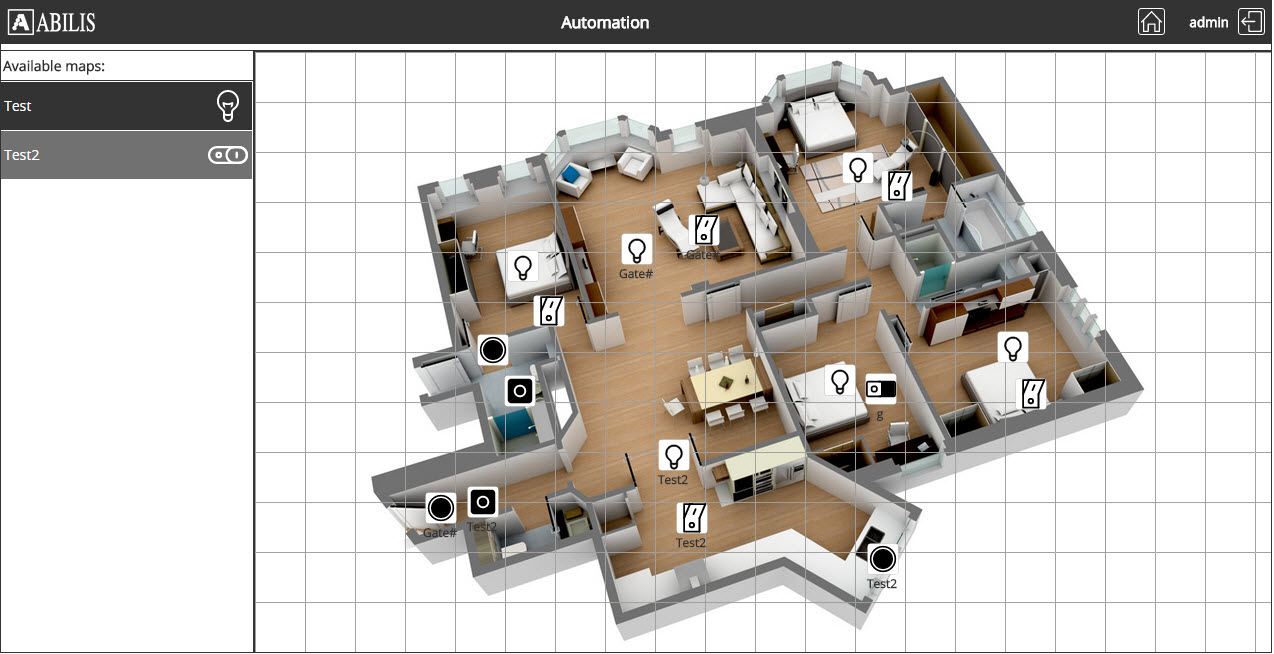

Click on to switch on/off the light

To configure that login like user admin and select from Abilis Start Page and to reach following page.

Figure 81.2. Automation Map settings

Automation Map settings

Click on to obtain the following page.

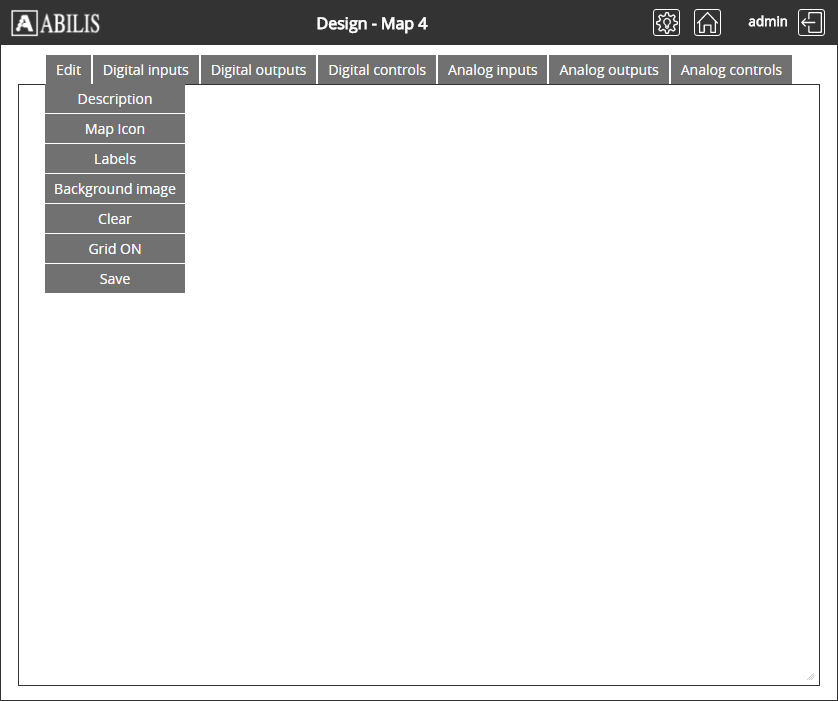

Figure 81.3. Design-Map

Design-Map

From Edit Tab is possible to:

- Add a Description of the maps. I.e: My company building.

- Select a Map Icon. For example:

- Select label settings.

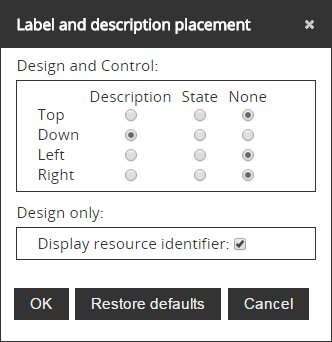

Figure 81.4. Label settings

Label settings

- Select background image.

- Clear all.

- Selecting Grid ON/OFF.

- Save the changes.

From Others Tabs is possible to place on the map Digital I/O/Controls and Analog I/O/Controls.

For Example:

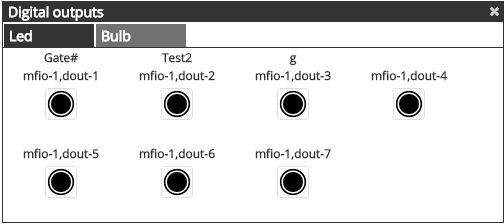

Figure 81.5. Digital outputs

Digital outputs

For hardware configuration follow the chapter Chapter 20, IOBOX of Abilis Tutorial.
