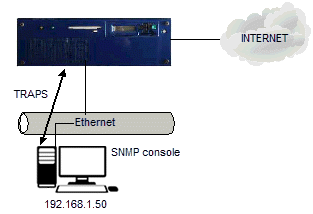

83.28. How to activate the SNMP agent

Enter into the Abilis control-program or open the configuration file with the Console configurator and type the following commands.

a res:snmp

or

s act res:snmp

Add the SNMP resource.

or

If the resource already exists, set it active.

s p snmp act:yesEnable the SNMP runtime functionalities.
s p snmp ipsrc:192.168.1.50Configure the accepted source IP address.
s p snmp trap:yesEnable SNMP traps generation.
s p snmp trapdest:192.168.1.50Configure the Traps destination IP address.
save confSave the configuration.

On a working Abilis, a system restart is required to make the SNMP resource running.
