	Chapter 89. Abilisphone - End user manual

Click the Settings tab to open the list of parameters and preferences of the Abilisphone Advanced user.

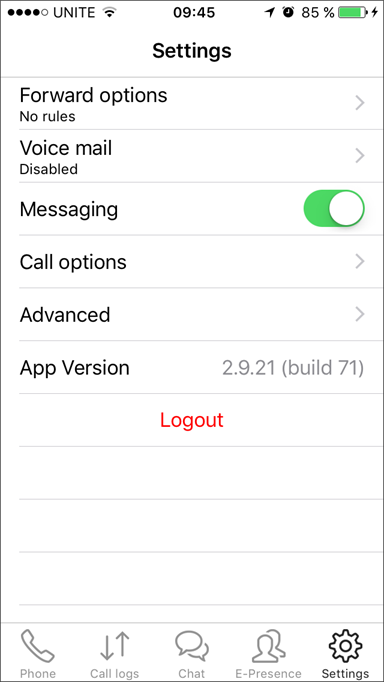

Figure 89.15. Settings page advanced user

This page contains:

Forward options - manage DND (Do Not Disturb), call forwarding, fork.

Voice mail - manage Voice mail options.

Messaging - enable/disable messaging (chat).

Call options - manage call options.

Advanced - manage advanced options.
App Version - shows the app version.
Logout - logout from the App.

For the Abilisphone Basic user, the list of parameters and preferences is reduced:

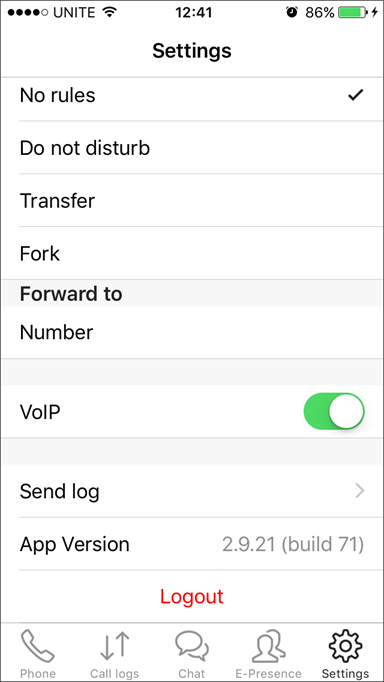

Figure 89.16. Settings page basic user

No rules - no active rules;
Do not disturb (DND) - You don't receive calls. If someone tries to call you, he receives the busy signal.
Transfer - The call is always forwarded.
Fork - With Fork several phones ring at once with Abilisphone, like your desk phone or a SIP phone.
Forward to Number - The used number for forwarding or forking.
VoIP - Enable/Disable VoIP part.
Send log - Sending log via mail, which is useful for debugging problems.
App Version - shows the app version.

	Note
	To access extended settings for advanced users, contact your system administrator.

89.8.1. Forward options

Click the Forward options, the following page will appear.

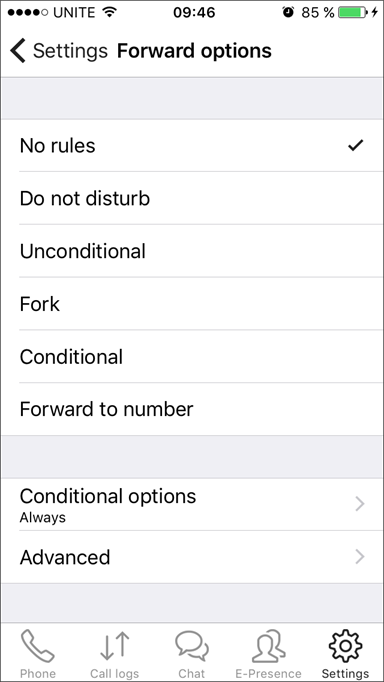

Figure 89.17. Forward options

The available options are:

No rules - no active rules;

Do not disturb (DND) - You don't receive calls. If someone tries to call you, he receives the busy signal.

Unconditional - The call is always forwarded.

Fork - With Fork several phones ring at once with Abilisphone, like your desk phone or a SIP phone.

Conditional - The call is forwarded based on configured conditions in the Conditional options.
Forward to number - The used number for forwarding or forking.
Conditional options - Conditions used for conditional forwarding.

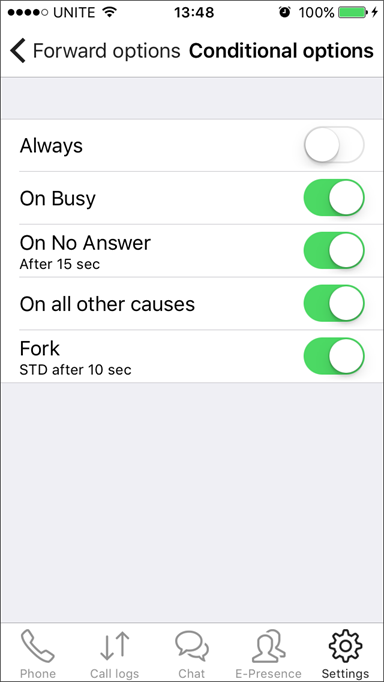

Figure 89.18. Conditional options
- Always - your phone doesn't ring and the calls are immediately forwarded. If you enable this option the others aren't selectable.
- On busy - the call is forwarded only when your telephone is busy.
- On No Answer after 15 seconds - if you don't answer after a defined number of seconds (15), the call is forwarded.
- On all other causes - the call is forwarded in other causes different from the previous ones.
- Fork STD (Standard) after 10 sec - enable the call forking after 10 seconds of delay, for the configured settings.
Advanced - Advanced forwarding settings

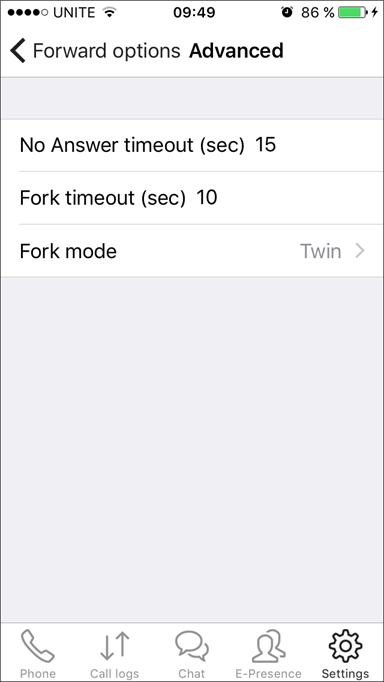

Figure 89.19. Advanced forward options
- No Answer timeout (sec) - Insert the no answer timeout in seconds.
- Fork timeout (sec) - Insert the delay between the start of ringing and start of the forked call.
- Fork mode:

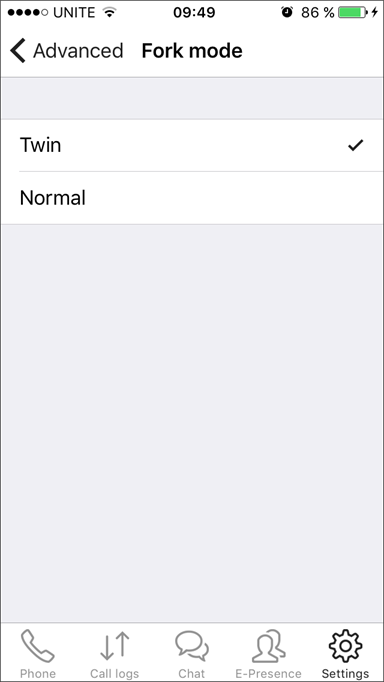

  Figure 89.20. Fork mode selection
  - Twin - If one of the two telephones is busy, the other one doesn't ring.
  - Normal (Standard) - Both the telephone connected to the Abilis and the one selected for call forking, ring up even if one is busy.

89.8.2. Voice Mail

The following page allows to enable or disable the voice mail and configure her settings.

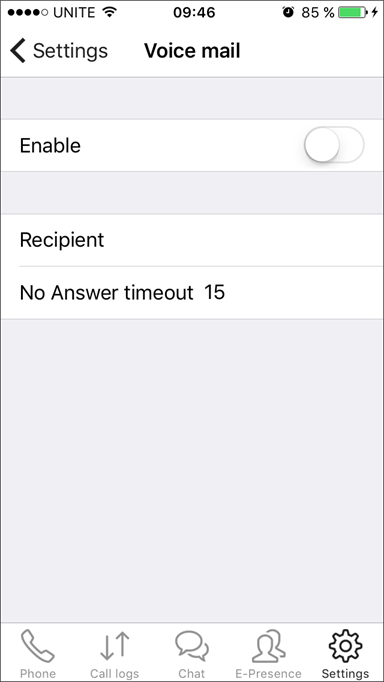

Figure 89.21. Voice mail settings

Enable - Enable Voice mail;

Recipient - Insert the mail address where to send the caller's voice message;

No Answer timeout - Insert the no answer timeout in seconds.

89.8.3. Call options

In this sub-section of the settings you may specify the call options.

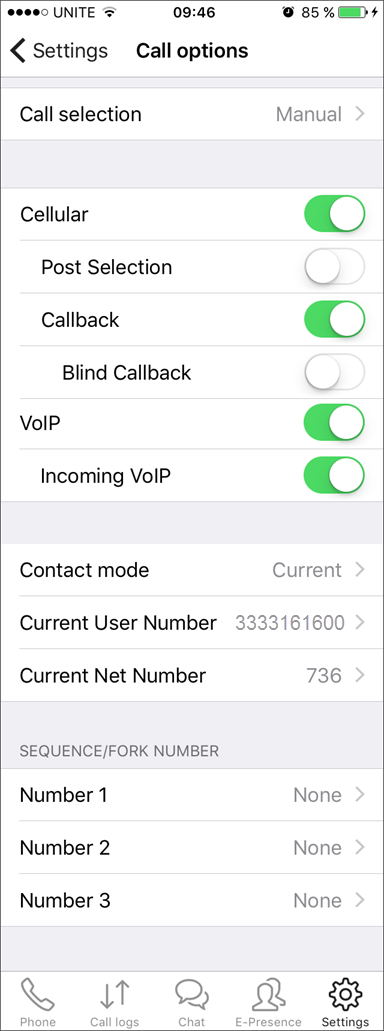

Figure 89.22. Call options page

The available options are:

Call selection

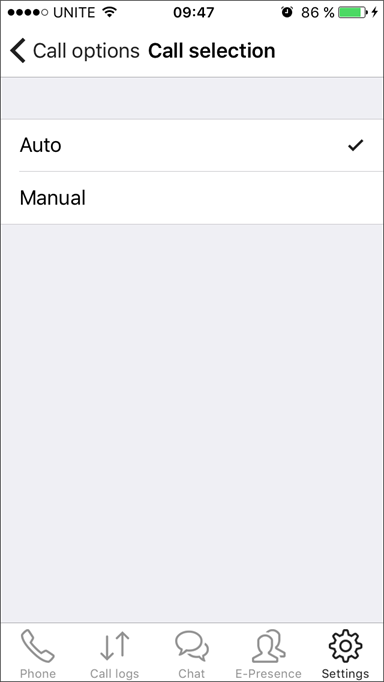

Figure 89.23. Call selection
- Auto - the user is not forced to decide whatever is better to save money and having better quality, the phone already knows because the phone has the settings of the user and the state of all connections.
- Manual - the user may choose personally what option to use to perform the call.
  Depending on active call options, can be following pages when you make a call.

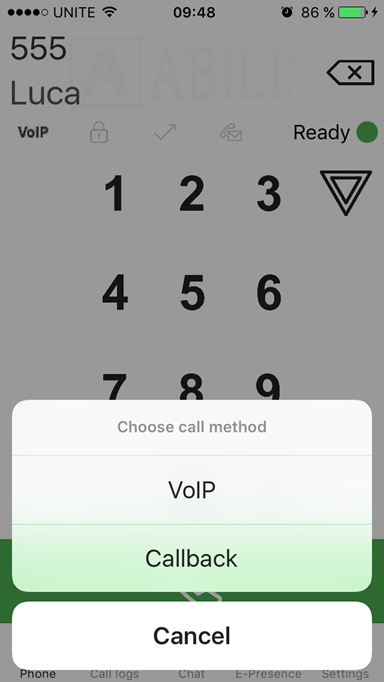

  Figure 89.24. The manual call options when Callback is active

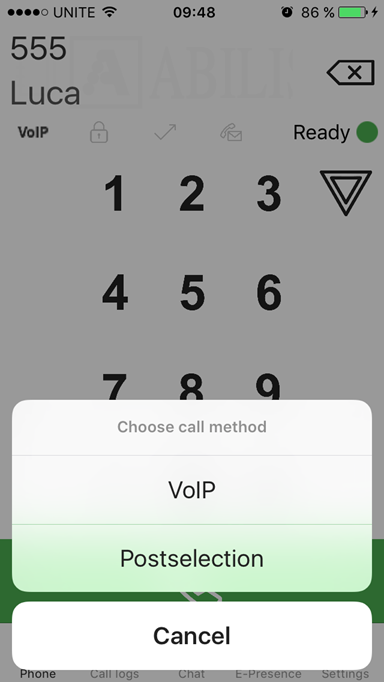

  Figure 89.25. The manual call options when Postselection is active

  Let's check the fees for each call.
  - VoIP - the call is totally free, apart the cost of Internet connection, the user must check related fees to avoid to overflow the threshold provided by the carrier.
  - Post Selection - the call may be free if it is supposed that the SIM has a special contract to save money with the Postselection number. This is option is available if:
    The GSM network must be enabled;
    "Postselection" must be enabled;
    "Postselection number'' must be set.
  - Callback - should be totally free for the user of the phone. This is option is available if:
    The GSM network must be enabled;
    The Abilisphone must have a data connection to Abilis;
    "Callback" must be enabled.
  - Blind Callback - should be totally free for the user of the phone, but the user doesn't reach directly the final destination, he must be connected to own firm operator. This is option is available if:
    The GSM network must be enabled;
    "Callback number" must be set;
    "Callback" must be enabled;
    "Blind Callback" must be enabled;

Cellular - Enable/Disable Cellular part.
Cellular options:
- Post Selection - Enable/Disable Post Selection;
- Callback - Enable/Disable Callback;
- Blind Callback - Enable/Disable Blind Callback;
  Important
  It's impossible simultaneously activate Callback and Postselection.
  Note
  If the Cellular options are disabled, the Abilisphone uses only VoIP.

	Important
It's impossible simultaneously activate Callback and Postselection.

VoIP - Enable/Disable VoIP part.
- Incoming VoIP - Enable/Disable incoming VoIP calls.
  Note
  If Incoming VoIP is disabled, you receive only GSM calls.
Contact mode - Setting the way to call user numbers.

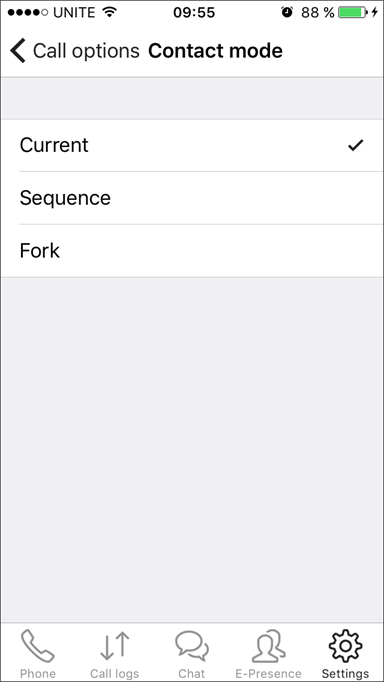

Figure 89.26. Contact mode
- Current - call the current user number.
- Sequence - call the user numbers in sequence.
- Fork - call the user numbers in parallel mode.
Current User Number - Select the Current User Number (The number of SIM).

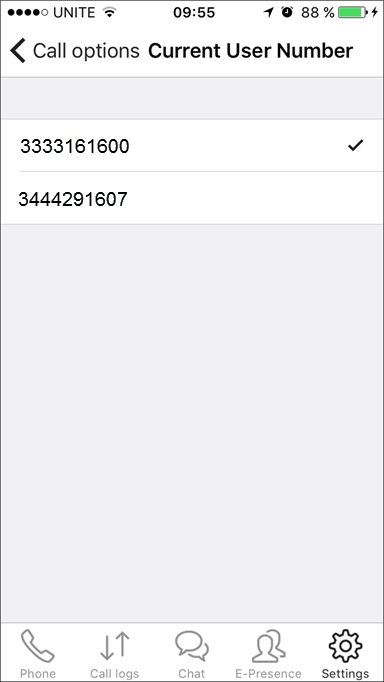

Figure 89.27. Current User Number

Note
This option is active only if the user has configured several User Numbers.
Current Net Number - Select the Current Net Number.

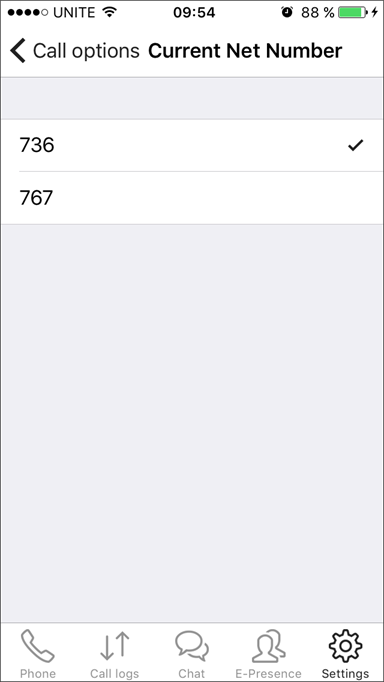

Figure 89.28. Current Net Number

Note
This option is active only if the user has configured several Net Numbers.
SEQUENCE/FORK NUMBER - Set Contact order for Contact mode Sequence or set the fork number if the Contact mode is Fork.

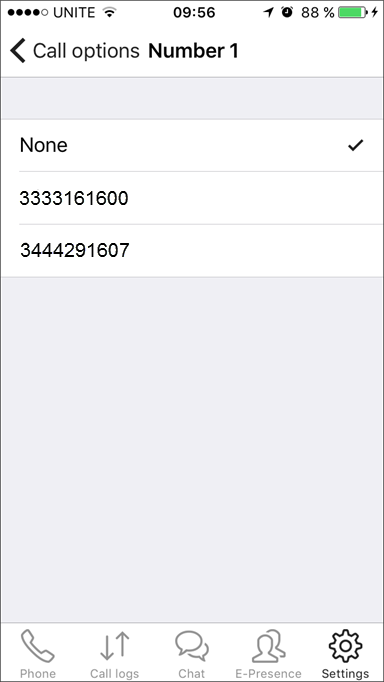

Figure 89.29. NUMBER 1/2/3

Note
In Sequence Contact mode these numbers (NUMBER 1, NUMBER 2, NUMBER 3) indicate the choice order: first, second, third.

89.8.4. Advanced options

In this sub-section of the settings you may specify the Advanced options.

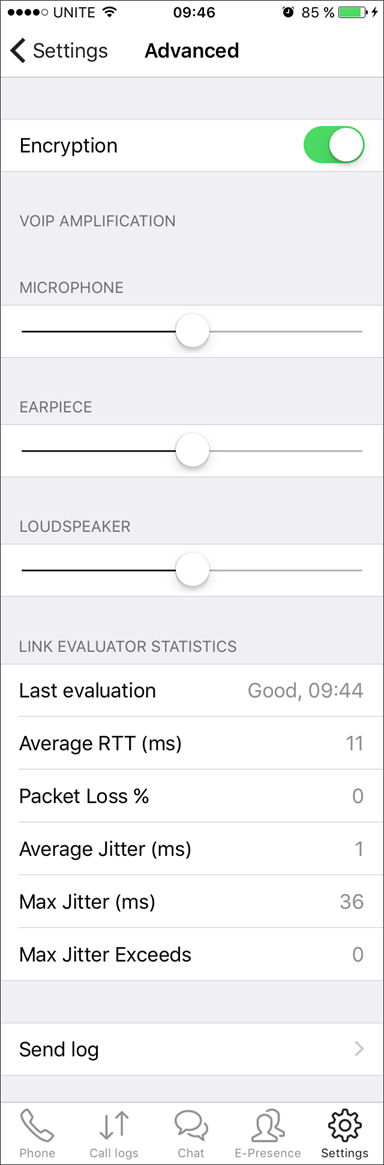

Figure 89.30. Advanced settings

Encryption - Enable/Disable the encryption.
VOIP AMPLIFICATION - Amplify the volume of:
- MICROPHONE;
- EARPIECE;
- LOUDSPEAKER.
LINK EVALUATOR STATISTICS - Useful for troubleshooting of voice quality issues.
- Last evaluation - Quality rate, and time of last evaluation;
- Average RTT (ms) - Round-Trip Time (RTT), also called round-trip delay, is the time required for a packet to travel from a specific source to a specific destination and back again.
- Packet Loss % - Packet loss is the failure of one or more transmitted packets to arrive at their destination.
- Average Jitter (ms) - Jitter is the variation in the latency (delay in packet delivery) on a packet flow between the two systems, when some packets take longer to travel from one system to the other.
- Max Jitter (ms) - Maximum value of Jitter.
- Max Jitter Exceeds - Number of packets which exceeded the Max Jitter.
Send log - Sending log via mail, which is useful for debugging problems.

	Note
	If the Cellular options are disabled, the Abilisphone uses only VoIP.

	Note
	If Incoming VoIP is disabled, you receive only GSM calls.

	Note
	This option is active only if the user has configured several User Numbers.

	Note
	In Sequence Contact mode these numbers (NUMBER 1, NUMBER 2, NUMBER 3) indicate the choice order: first, second, third.
