	Chapter 2. Abilis hardware

2.1. Abilis Base-D

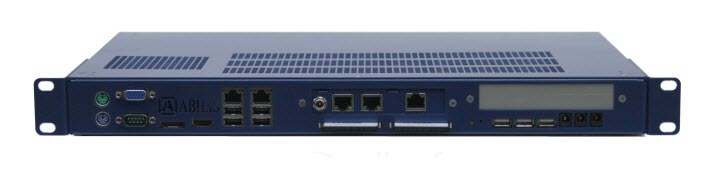

Figure 2.1. Abilis Base-D

Abilis Base-D

Abilis Base-D is an expandable device. Below there are the hardware characteristics of the base unit:

DualCoreCPU 1.8 GHz;
4096 MB RAM DDR3;
2 Compact-Flash 128MB modules for boot;
1 RS-232 ports;
7 USB ports;
2 Ethernet;
3 Power out connector useful to supply UMTS BOX2 or POTSBOX.

These are the expansions:

UPS-PSU 10A;
1 BSE.
BSE device configuration creates 8 BRI and 40 POTS and only the actually installed ones will be running. The not installed ports will appear as "Not running" and may be deactivated and hidden using the S INACT CTIP:xxx command.
The D PCIDEV will show the type and numbers of ports actually present on the installed BSE card using the following scheme:
nickname x-y-x
where
nickame
Nickname used to identify the card available in one or more mounting options.
x
Number of BRI ports.
y
Number of on-board POTS ports.
z
number of POTS ports available through ELTI interface and POTSBOX.
Examples of BSE:
- BSE28 0-4-32 (4 POTS on-board plus 32 POTS via 1 ELTI/POTSBOX);
- BSE29 4-0-32 (4 BRI ports and 1 ELTI port for up to 32 POTS via POTSBOX);
- BSE26 2-2-32 (2 BRI, 2 POTS on-board plus 32 POTS via 1 ELTI/POTSBOX).

2.1.1. Physical and electrical specifications

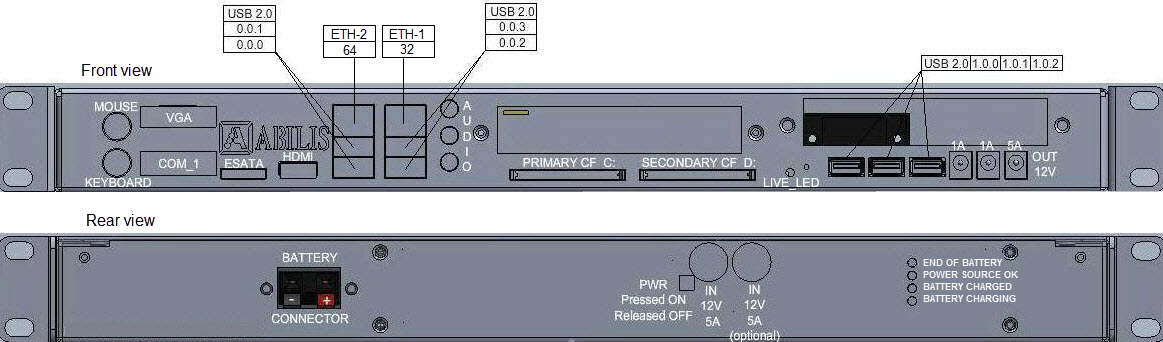

Figure 2.2. The numbering of the physical ports

The numbering of the physical ports

	Warning
	Be extremely careful while inserting the wires from the battery! Avoid short-circuits: they might cause hand-injuries till to battery explosion.

Dimensions[mm]: 440x300x47;

Weight: 2 Kg;

Power supply: 110-230VAC, 150W.
