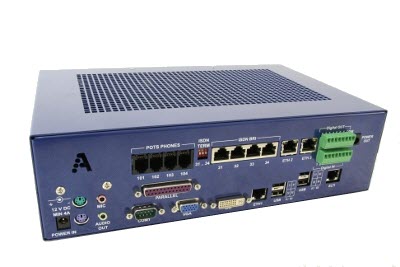

Micro Abilis is a non-expandable device equipped with:
CPU: 1.5 GHz;
RAM: 256 MB DDR;
BOOT DISK: CompactFlash 128MB;
3 Ethernet 10/100;
7 Digital Input and 7 Digital Output for building automation
purposes;
1 RS-232 port;
Power out connector useful to supply UMTS BOX2 or POTSBOX;
Table 2.1.
| Led | Meaning | State |
|---|
LIVE AUX | Abilis Status Not used | LIVE and AUX leds flashing:
startup LIVE led flashing (1s ON - 1s OFF): Abilis
status is ok AUX led: not used |
2.6.2. Physical and electrical specifications
Dimensions[mm]: 305x195x90;
Weight: 2,9 Kg;
Power supply: +12V DC/5A, 60W.
