	Chapter 3. Physical connections

The Abilis ISDN-BRI ports are electrically configured like Telecom NT1 ports, so:

To connect the ports to “Terminal Equipment” systems (telephone switchboards, TA, ISDN modem, FAX, …) you must use a straight cable cat. 5. Set up the ports at a logical level as NT (Network Termination) in the Abilis configuration.
To connect the ports with the Telecom lines, you must use a “cross-cable (crossed) cat.5” (usually provided with red shells). Set up the ports at a logical level as TE (Terminal Equipment) in the Abilis configuration.

	Warning
	The ports which are configured at a logical level as NT must always be connected to a 100 ohm impedance matching adapter.

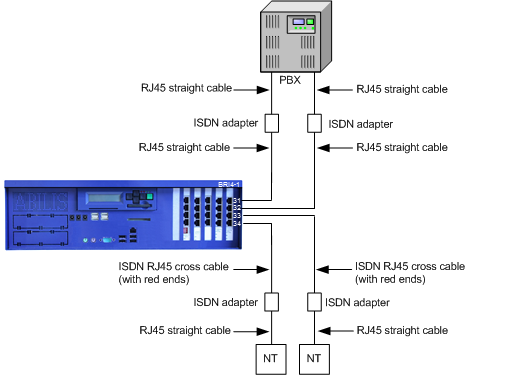

Figure 3.2. Typical connecting scheme betwenn Abilis - ISDN lines

Tip

Interesting chapters:

Section 2.8.2, “QPRIX”;

Section 2.8.4, “PB44X”;

Section 2.8.7, “BRI-HFC4 / BRI-HFC8”;

Section 72.1, “How to configure ISDN ports to connect PBX or ISDN lines”.

3.2.1. Emergency connection

If necessary ( in case of damages, bad functioning, lack of electricity …) the user can manually by-pass Abilis and connect the switchboard to the Telecom network. Antek suggests the following procedure:

Disconnect the cable between the PBX switchboard and the impedance matching adapter.
Disconnect the cable between the Telecom line and the Abilis port, keeping the impedance matching adapter.
Connect the straight cable from the switchboard to the Telecom one using the impedance matching adapter.
Repeat this procedure for every line you want to by-pass.

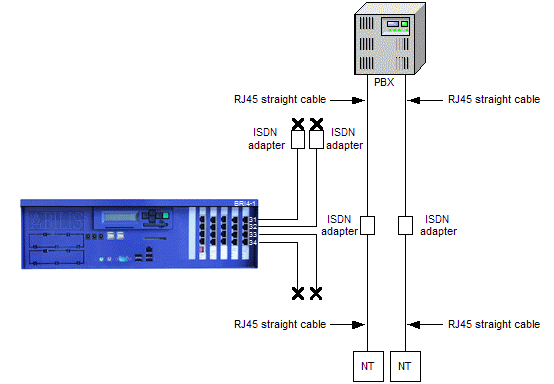

Figure 3.3. Emergency procedure (by-pass Abilis)

	Tip
	To restore the telephone connections we suggest to write down precise instructions about the emergency procedure and keep them at hand in the switchboard room, available to technicians.

3.2.1.1. Switch

To make the by-pass easier Antek provides Section 2.9.5, “RJ Switch” on request.

Tip

Interesting chapters:

Chapter 14, RJS - RJ Switch;

Section 3.8.1, “Connection examples”.
